SICK Lector85x User Manual

Ambient operat‐
ing temperature
0°C…+50°C
1)
Storage tempera‐
ture
–20°C…+70°C
2)
Permissible rela‐
tive humidity
0% ... 90%, non-condensing
Ambient light
immunity
2,000lx on code
Ambient condi‐
tions
Degree of contamination 2 (according to EN61010-1)
Altitude <5,000m above sea level
1)
If the ambient operating temperature will be ≥45°C, ensure adequate heat dissipation when mounting
the device, see "Assembling the product", page 21.
To prevent condensation, avoid exposing the device to rapid changes in temperature.
2)
Store in a place protected from moisture and dust.

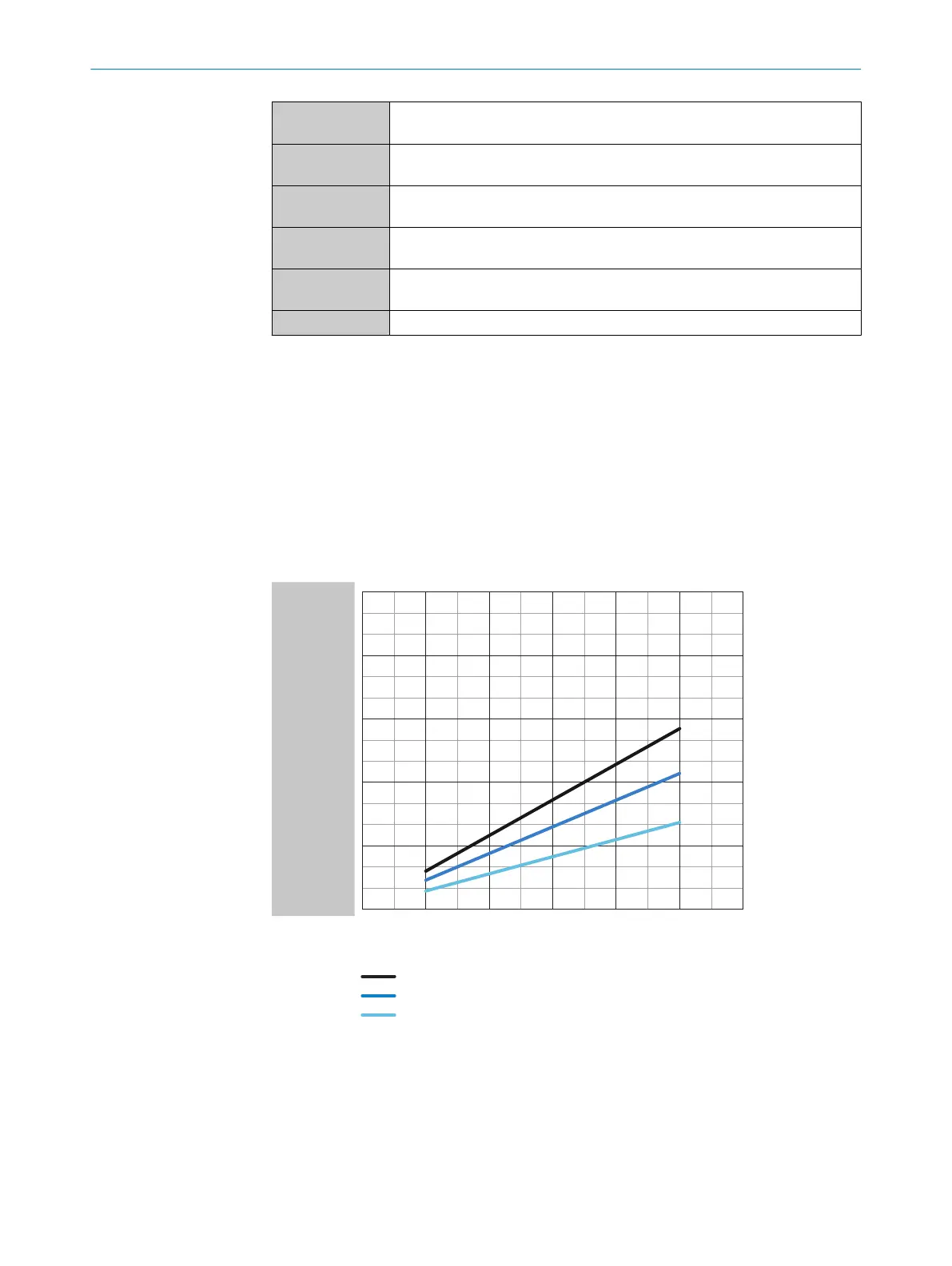

11.7 Field of view diagrams
11.7.1 Field of view diagram
Lector85x Flex
Product type: V2D8505R-xxxxxxxxxx
Perceived area of field of view: H x V (mm) 1
0
Working distance and focus position in mm 2
500 x 416
1000 x 831
2000 x 1662
2500 x 2078
1500 x 1247
f = 12 mm
f = 16 mm
f = 25 mm
0 500 1000 1,500 2,000 2,500 3,000
1
Perceived field of view area: horizontal x vertical (mm)
2
Working distance and focus position in mm
Lector85x Flex
Product type: V2D8509R-xxxxxxxxxx
TECHNICAL DATA 11
8027859/1INN/2023-03-08 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x
45
Subject to change without notice
