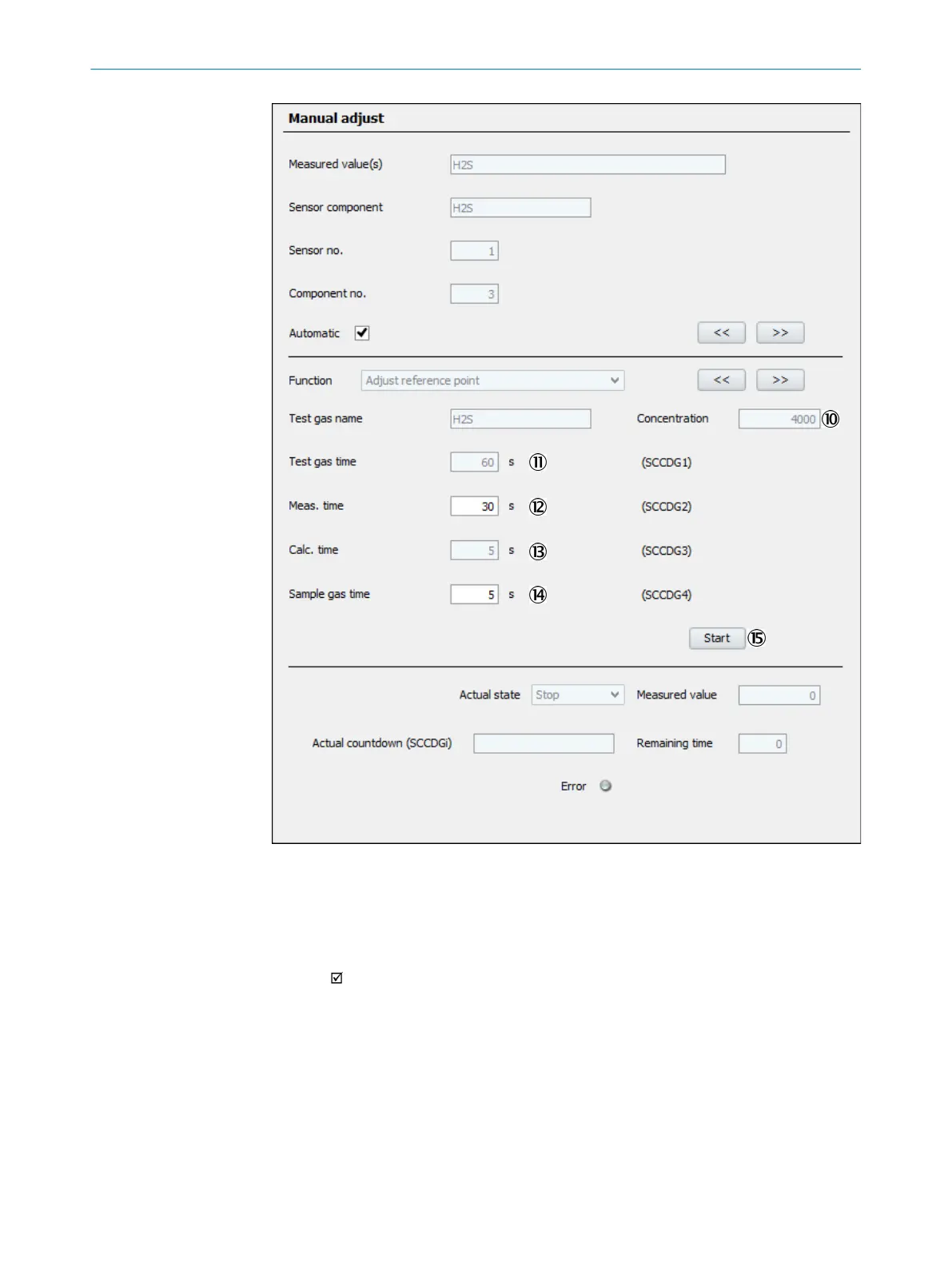

Figure 22: Menu Manual adjust (example)
1
Name of the measured values to be calculated from this sensor component
2
Measuring component for which this manual adjust is applicable
3
Number of the Sensor module to measure the measuring component
4
Number of sensor component in the Sensor module
5
= standard setting: Adjustment runs with preset time sequences.
= adjustment steps are started singly by the user (manual test gas feed).
6
Select measured value(s)
7
Adjustment or validation to be performed
8
Select function
9
Name of test gas to be used
1
ß
Setpoint value of the test gas / concentration of the adjustment cuvette
à
Wait time after switching to the test gas; then measurement starts
á
Defines how long the measured values of the test gas are measured
2
â
Internal interval for computation of the values measured
ADJUSTMENT FUNCTIONS 5
