Mounting Instructions

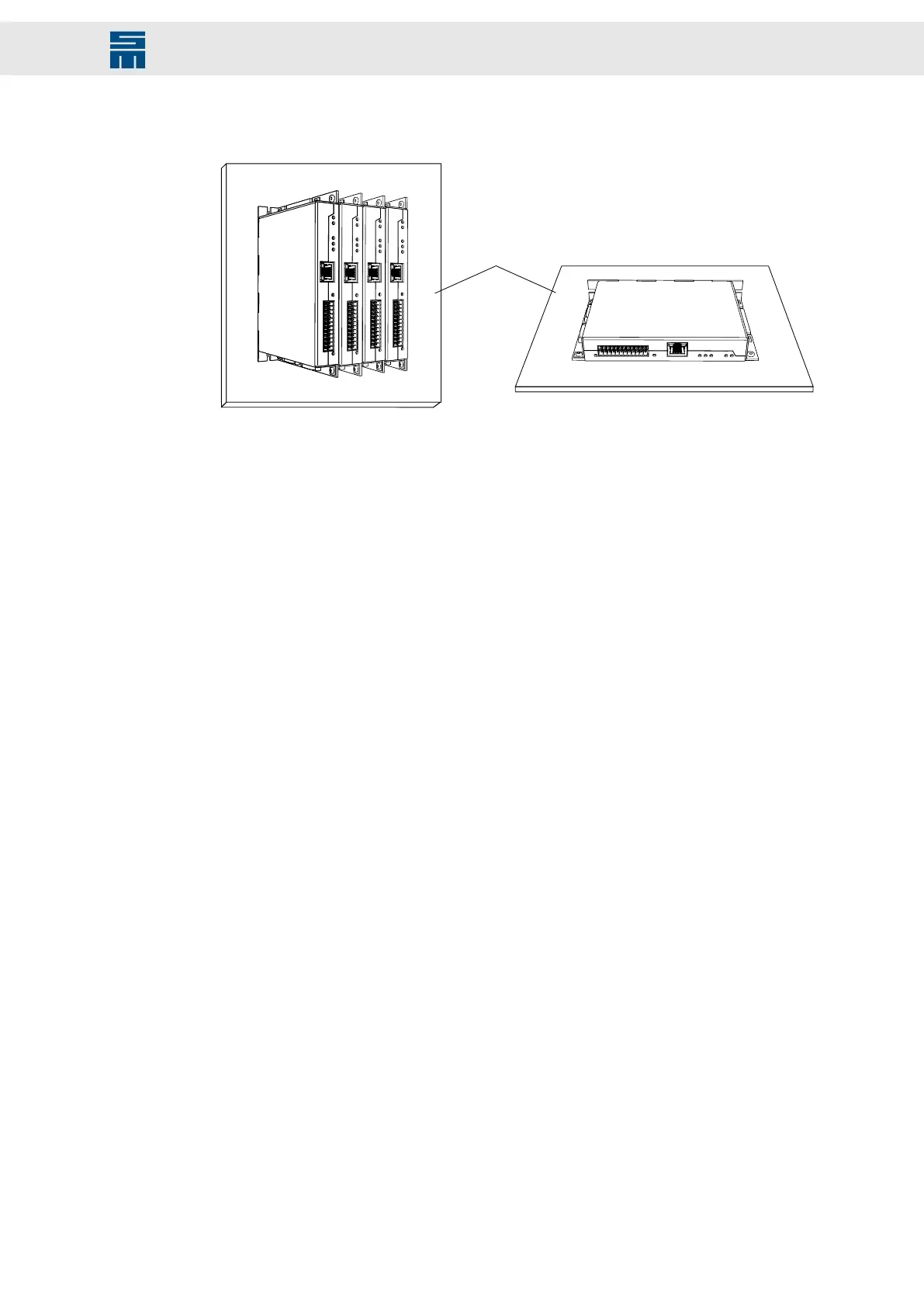

Fig. 6: Mounting options
Wall /
cooling surface
Vertical Mounting
Horizontal mounting
Fig. 6: Mounting options
▶ The device is mounted horizontally or vertically to a mounting wall. The mounting
surface is used for cooling.
▶ The mounting surface must be able to dissipate a heat output of 25 W at a housing
temperature of 60 °C for each device.
▶ With vertical mounting several device can be mounted next to each other without
any space in-between.
25Drive Amplifier SD4B - Hardware Description
0SD4BB1D1Pxxxx
