SIEB & MEYER SD4B User Manual

Connectors

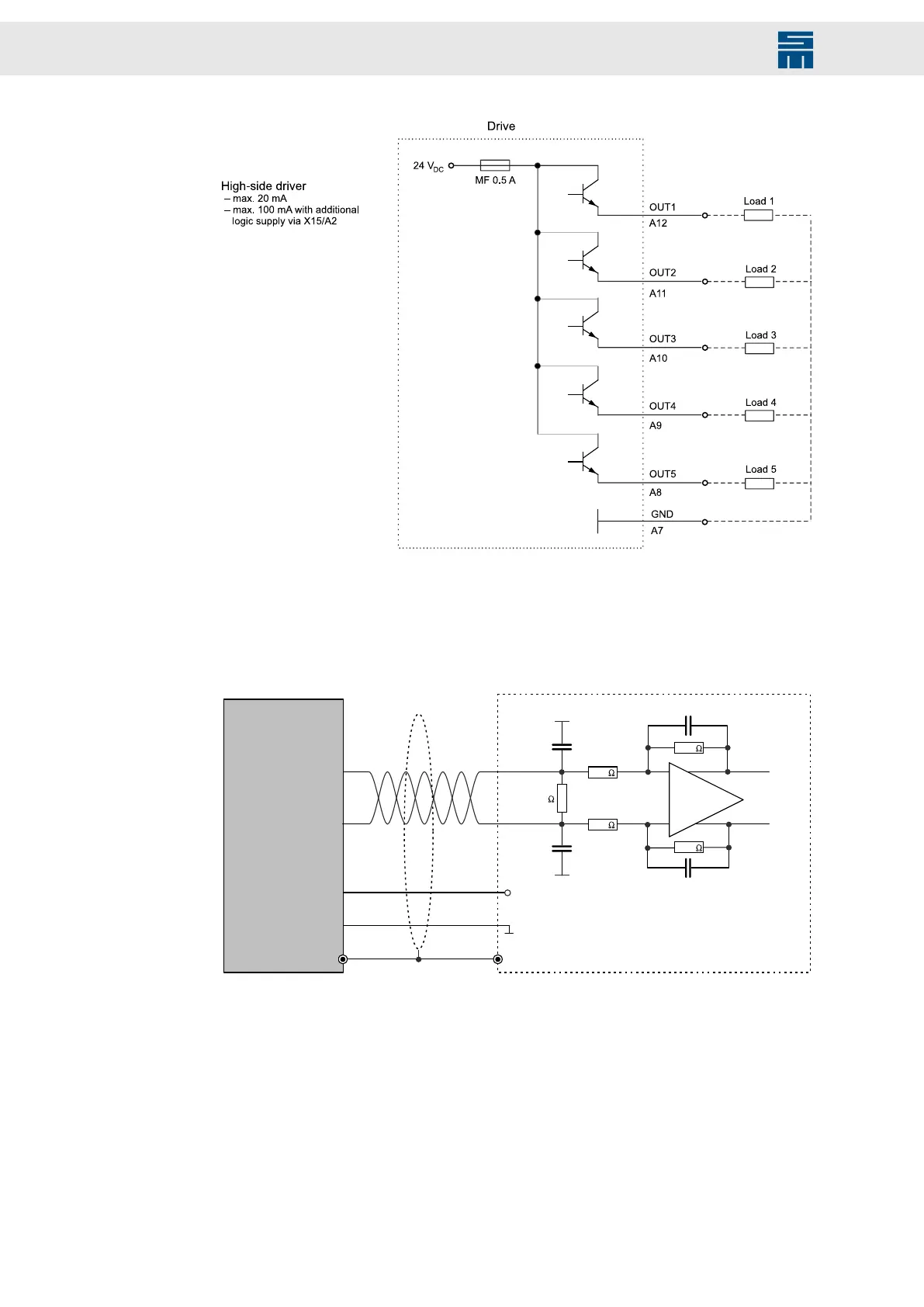

Fig. 23: Digital outputs (X15) parameterized as high-side driver
Fig. 23: Digital outputs (X15) parameterized as high-side driver
7.8.3 Analog Input
Fig. 24: Analog Input (X15)
Analog IN
100 k
V
A-Out-
A-Out+
GND
e.g. N
REF
3.3 k
10 nF
10 nF
-
+
External analog
ref. value source
3.3 k
20 k
20 k
4,7 nF
4,7 nF
B1, B2, B7
GND
VCC10
B5
B4
B3
AIN-
AIN+
Fig. 24: Analog Input (X15)
Voltage interface with input voltage range: ±10 V
Can also be connected to potentiometer (500 Ω – 5 kΩ)
44 Drive Amplifier SD4B - Hardware Description
