SIEB & MEYER SD4B - Digital Inputs; Digital Outputs

7.8.1 Digital Inputs
The meanings of the digital inputs can be defined by parameters.

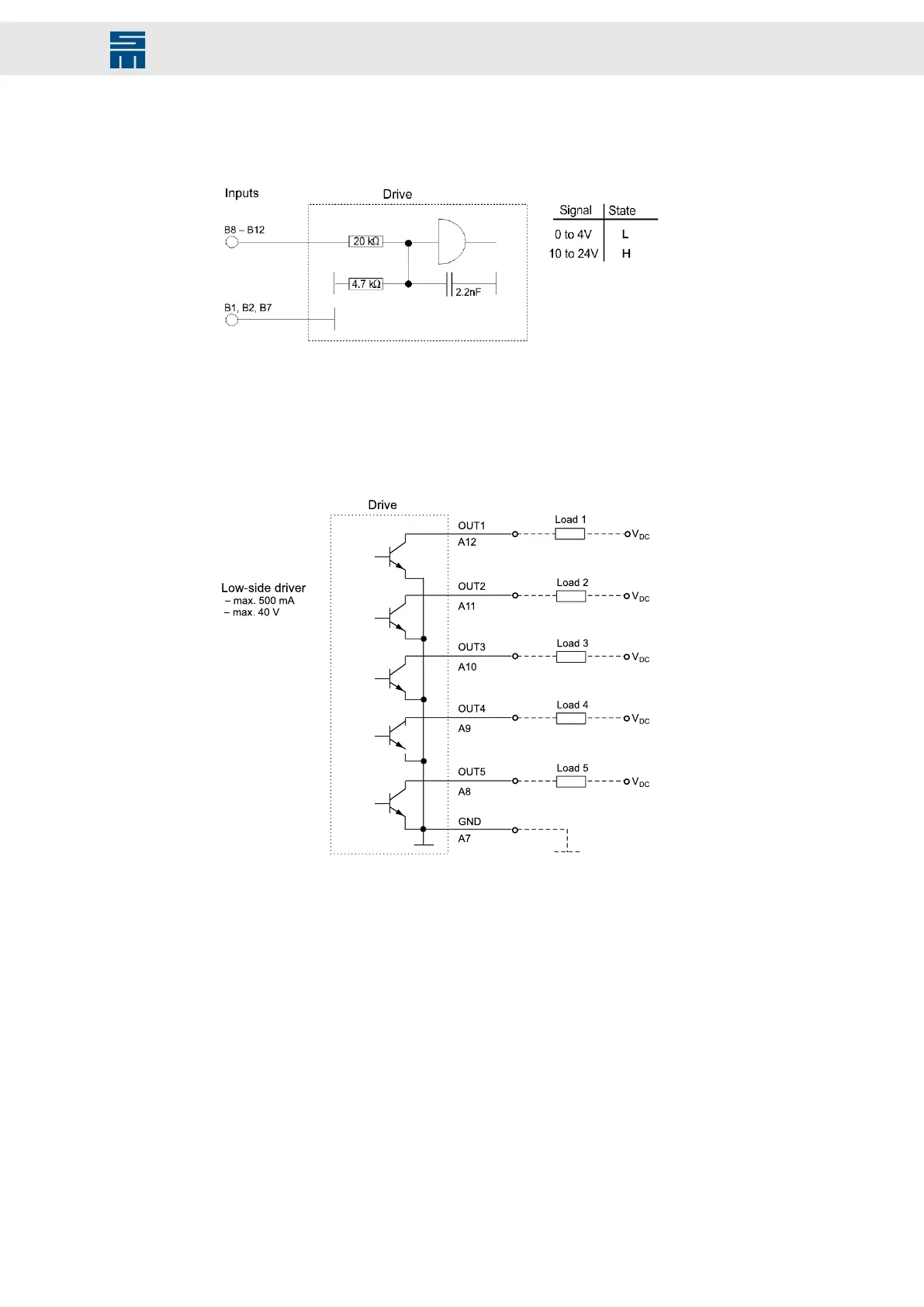

Fig. 21: Digital inputs (X15)
Fig. 21: Digital inputs (X15)
7.8.2 Digital Outputs
The output driver can operate as low-side driver or as high-side driver. You can set the
desired driver type in the software drivemaster4.
Fig. 22: Digital outputs (X15) parameterized as low-side driver
Fig. 22: Digital outputs (X15) parameterized as low-side driver
43Drive Amplifier SD4B - Hardware Description
Connectors
