6.3 Connectors, Displays and Buttons

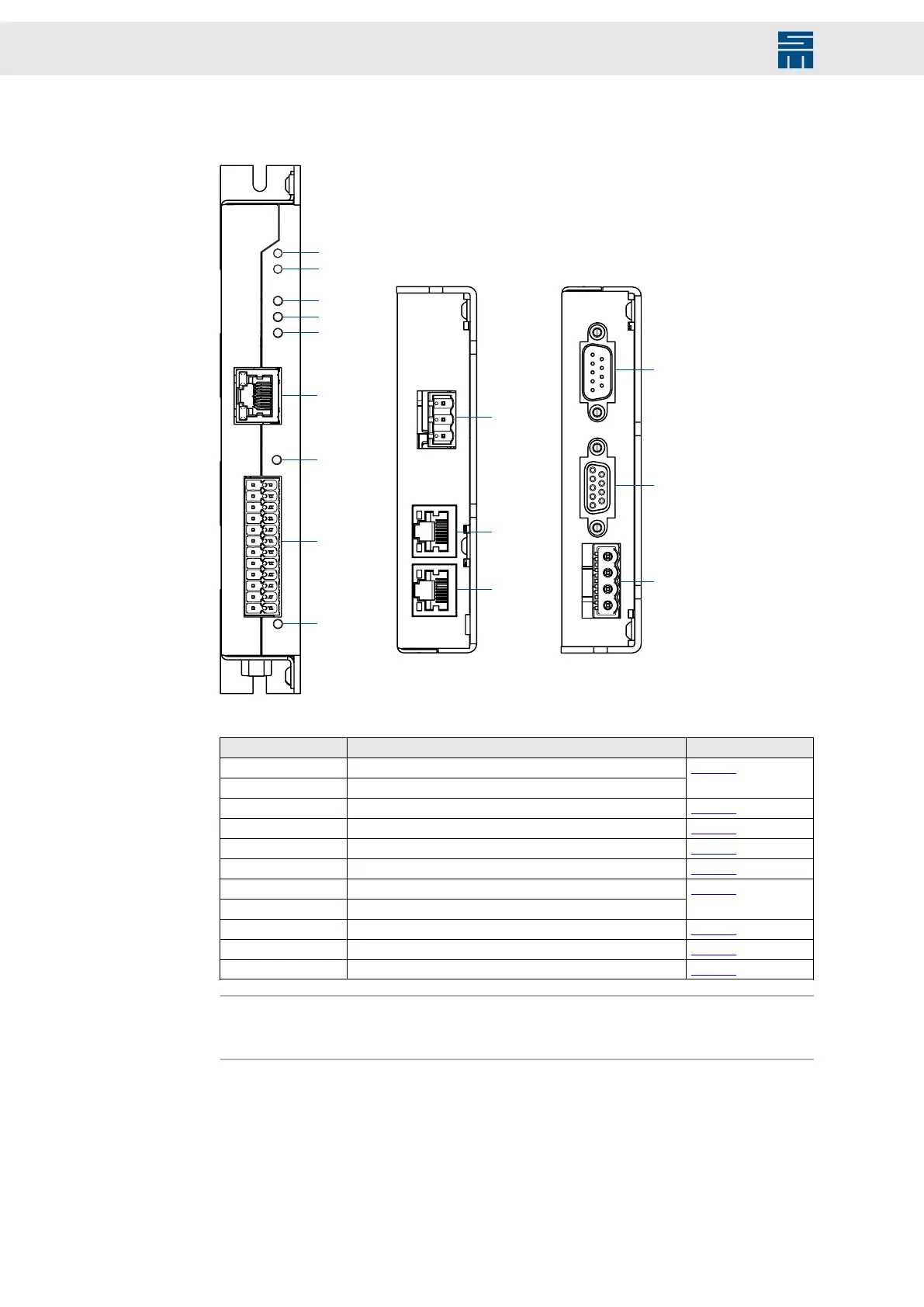

Fig. 9: Views 0SD4BB1D1Pxxxx: front panel (left), top side (middle) and bottom side (right)
1
2
3
1
2
5
6
P2P
4
X15
I/O
X11
Ethernet
X14
OUT
X13
IN
X36
DC Power
X53
Motor
X6
ENC
X10
COM
Fig. 9: Views 0SD4BB1D1Pxxxx: front panel (left), top side (middle) and bottom side (right)
Name Meaning Description
1/2/3 Status LEDs for the device
4/5/6 Status LEDs for the fieldbus
page 56
P2P P2P button page 34
X6 ENC Encoder input page 34
X10 COM COM interface (RS232/RS485/CAN) page 37
X11 Ethernet Ethernet interface page 40
X13 IN Fieldbus input
X14 OUT Fieldbus output
page 41
X15 I/O Inputs/outputs page 42
X36 DC Power DC power input page 46
X53 Motor Motor output page 47
Note
You can order the suitable connector kit for the device variant 0SD4BB1D1Pxxxx at
SIEB & MEYER under article number 32299587.
