11.7 Disconnecting screw terminals
WARNING
Hazardous voltage
Can cause death, serious injury, or property damage.
Turn o and lock out all power supplying this device before working on this device.
Tool
Cross-tip screwdriver size PZ 1 x 80

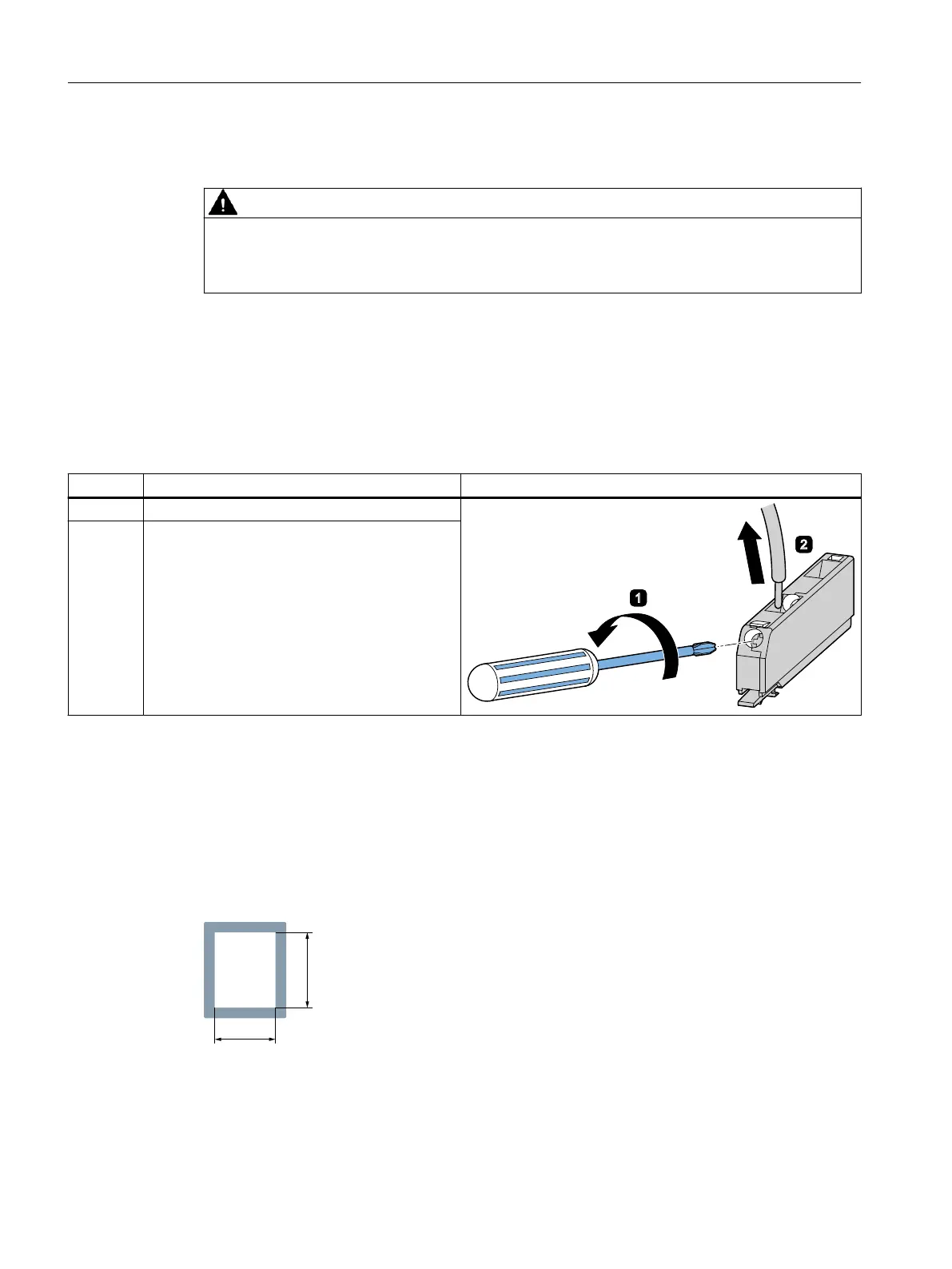

Disconnecting
Step Instructions Figure
1 Unscrew the screw of the screw terminal.
2 Remove the cable from the unscrewed screw ter‐
minal.
11.8 Wiring rules for spring-type terminals (with push-in technology)
Notes on handling spring-type terminals with push‑in technology
The terminal space for the spring-type terminals is rectangular. The maximum overall
dimensions of the conductor to be wired must not exceed 2.4 x 2.8 mm.
Take note of the orientation of the terminal space, which may require vertical tting of
rectangular-crimped conductors.
Connection
11.8 Wiring rules for spring-type terminals (with push-in technology)
3RS2 temperature monitoring relay
80 Equipment Manual, 02/2022, A5E42462552002A/RS-AB/002
