Connecting spring-loaded terminal

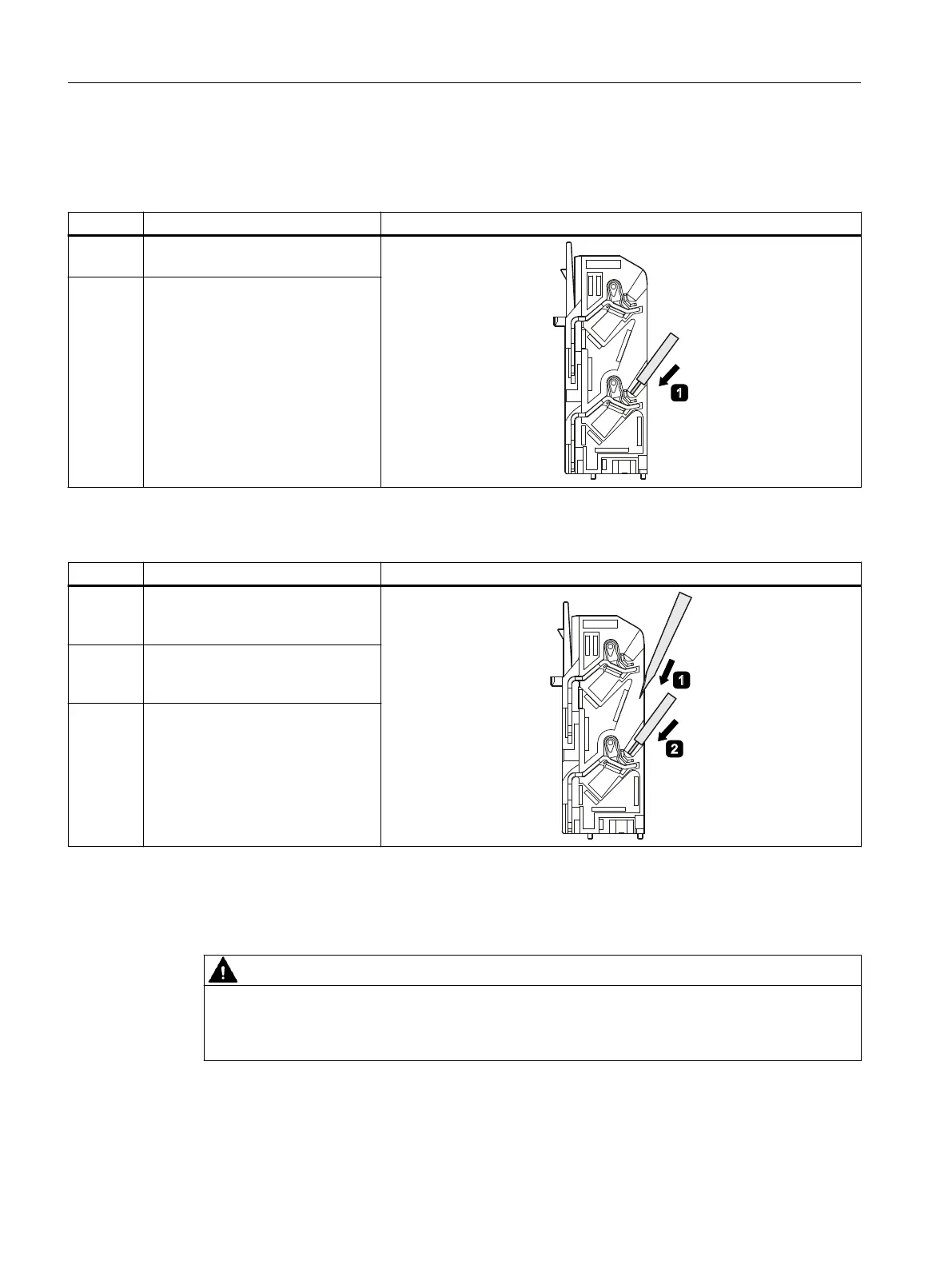

Table 11-1 Rigid conductors or conductors equipped with end sleeves
Step Instructions Figure
1 Insert the cable into the oval open‐
ing as far as it will go.
2 Pull on the cable to ensure it is tight.
Table 11-2 Finely stranded cables without end sleeve
Step Instructions Figure
1 Insert the screwdriver in the rectan‐
gular opening to open the terminal
spring (oval opening).
2 Insert the cable as far as it will go
into the oval opening and remove
the screwdriver.
3 Pull on the cable to ensure it is tight.
11.10 Disconnect the spring-type terminal (push-in)
WARNING
Hazardous voltage
Can cause death, serious injury, or property damage.
Turn o and lock out all power supplying this device before working on this device.
Connection
11.10 Disconnect the spring-type terminal (push-in)
3RS2 temperature monitoring relay
82 Equipment Manual, 02/2022, A5E42462552002A/RS-AB/002
