Resistance sensors
9
9.1 Denition
A resistance sensor is an electrical component which uses the temperature dependency of the
electrical resistance of a conductor to measure temperature.
Dierent types of resistance sensors are available: PTC (positive temperature coecient) and
NTC (negative temperature coecient).
PTC thermistors (e.g. Pt100/Pt1000 or KTY83/KTY84) are most commonly used in industrial
temperature measurement applications.
The characteristic curve of KTY type resistance sensors is considerably less linear than that of Pt
sensors. However, it exhibits a change in resistance in the event of temperature uctuations that
is approximately twice as high. KTY type resistance sensors are, therefore, highly sensitive but
have a relatively small temperature measuring range.
9.2 Characteristic curves
The following characteristic curves show the temperature ranges of resistance sensors:

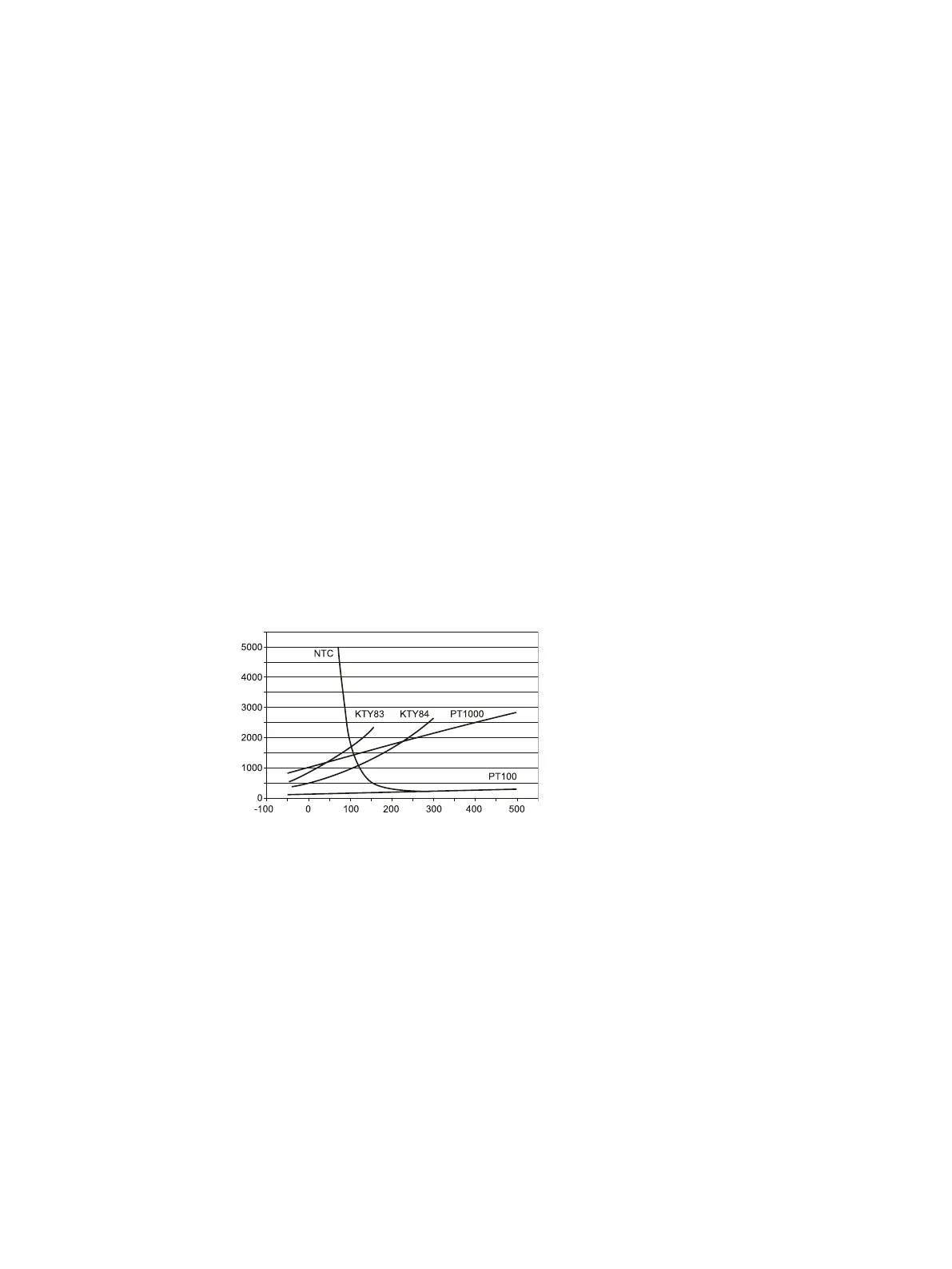

Figure 9-1 Temperature ranges of the resistance sensors
3RS2 temperature monitoring relay
Equipment Manual, 02/2022, A5E42462552002A/RS-AB/002 69
