Tool
DIN 5264 screwdriver with size 0.5 x 3 mm (article number of the screwdriver: 3RA2908-1A)
Disconnecting spring-loaded terminal

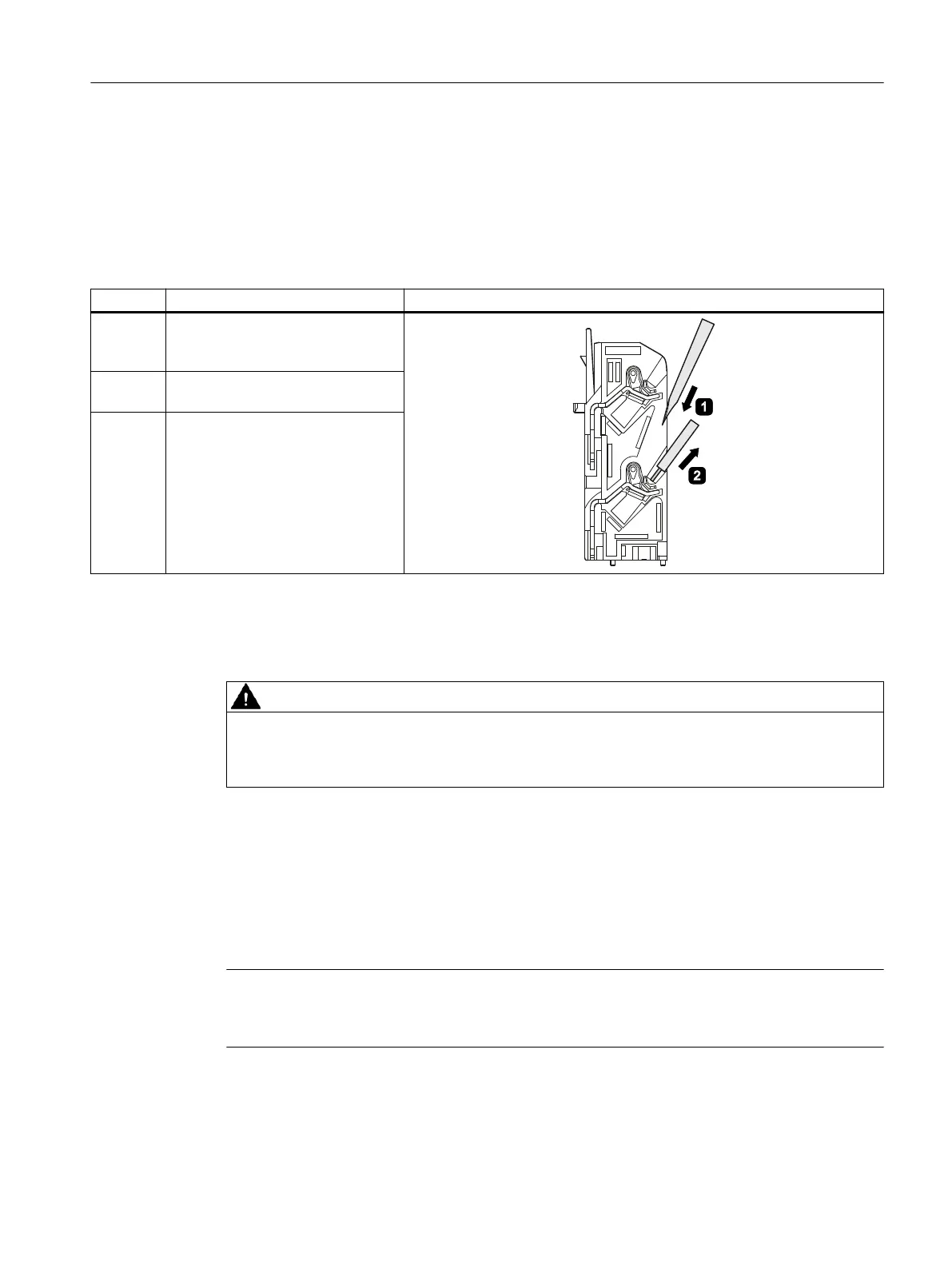

Step Instructions Figure
1 Insert the screwdriver into the rec‐
tangular opening of the spring-type
terminal until it engages.
2 Remove the cable from the oval
opening.
3 Remove the screwdriver.
11.11 Attaching the terminals
WARNING
Hazardous voltage
Can cause death, serious injury, or property damage.
Turn o and lock out all power supplying this device before working on this device.
Requirements
You must have removed the terminals, for the purpose of replacing a device, for example.
Attaching the terminals
Note
Screw terminals/push-in terminals
Screw and push-in terminals are inserted into the module using the same principle.
Connection
11.11 Attaching the terminals
3RS2 temperature monitoring relay
Equipment Manual, 02/2022, A5E42462552002A/RS-AB/002 83
