12.7 Disassembling from a level surface
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Property Damage.
Turn o and lock out all power supplying this device before working on this device.
Requirements
The terminals have been removed or disconnected.

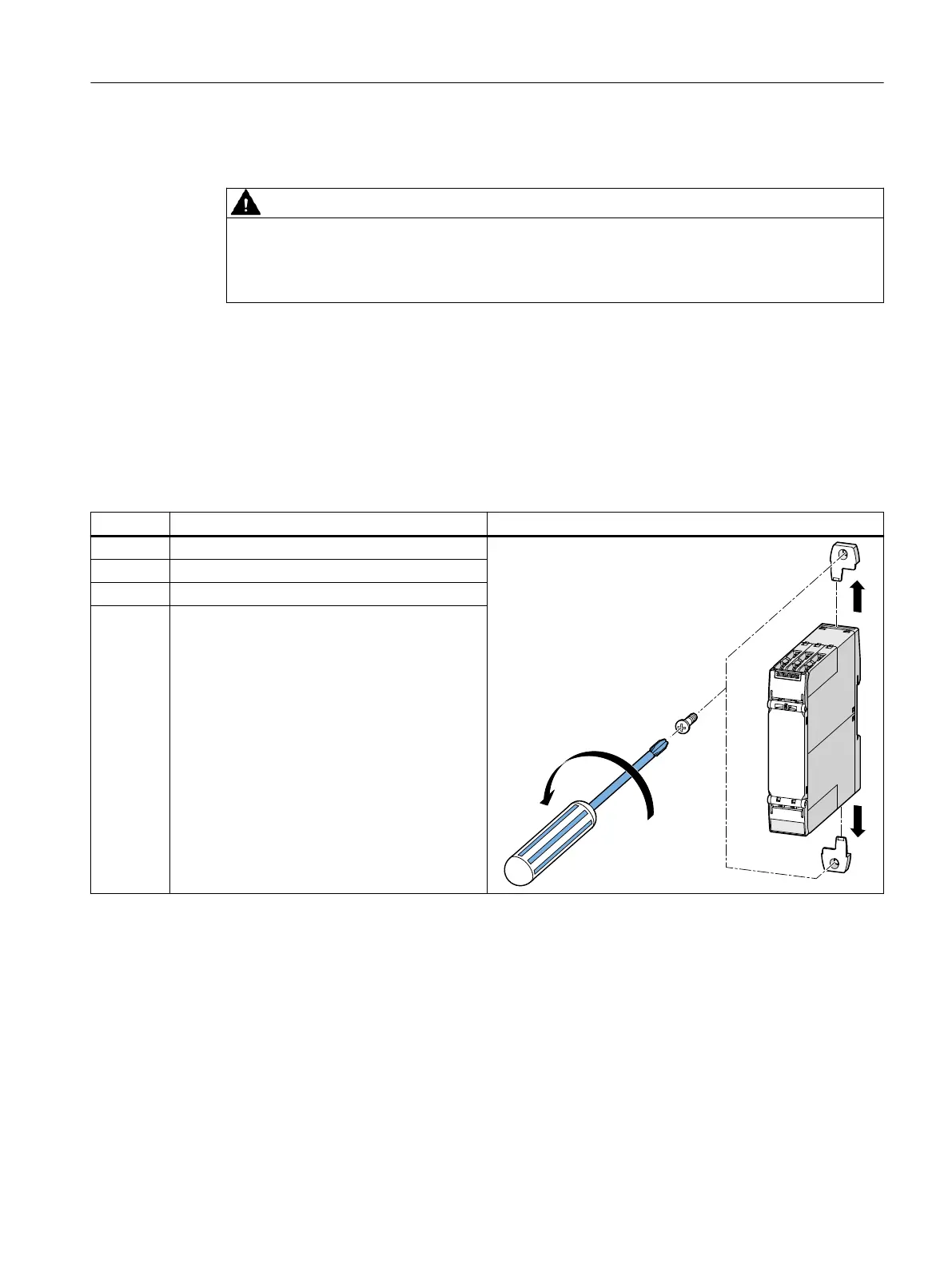

Disassembling from a level surface
Step Instructions Figure
1 Hold the device rmly.
2 Unscrew the cap screws.
3 Lift the device from the level surface.
4 Remove the securing brackets from the device.
Mounting
12.7 Disassembling from a level surface
3RS2 temperature monitoring relay
Equipment Manual, 02/2022, A5E42462552002A/RS-AB/002 91
