Description
20/121 Revision 05 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DJH • 500-8067.9
Deep cable compartment cover (option)
For cable feeders, ring-main feeders and circuit-breaker feeders, the connection of up to
2 cables per phase (double cable connection) is possible, also in connection with surge
arresters or surge limiters. Depending on the panel type, plug make or surge arrester make, a
deep cable compartment can be selected to obtain a larger mounting depth of the cable
compartment. For further information, see page 20, "Cable plugs for double cable connection
(interface type C)", and see page 21, "Cable plugs for single cable connection and double cable
connection with surge arrester (interface type C) ".

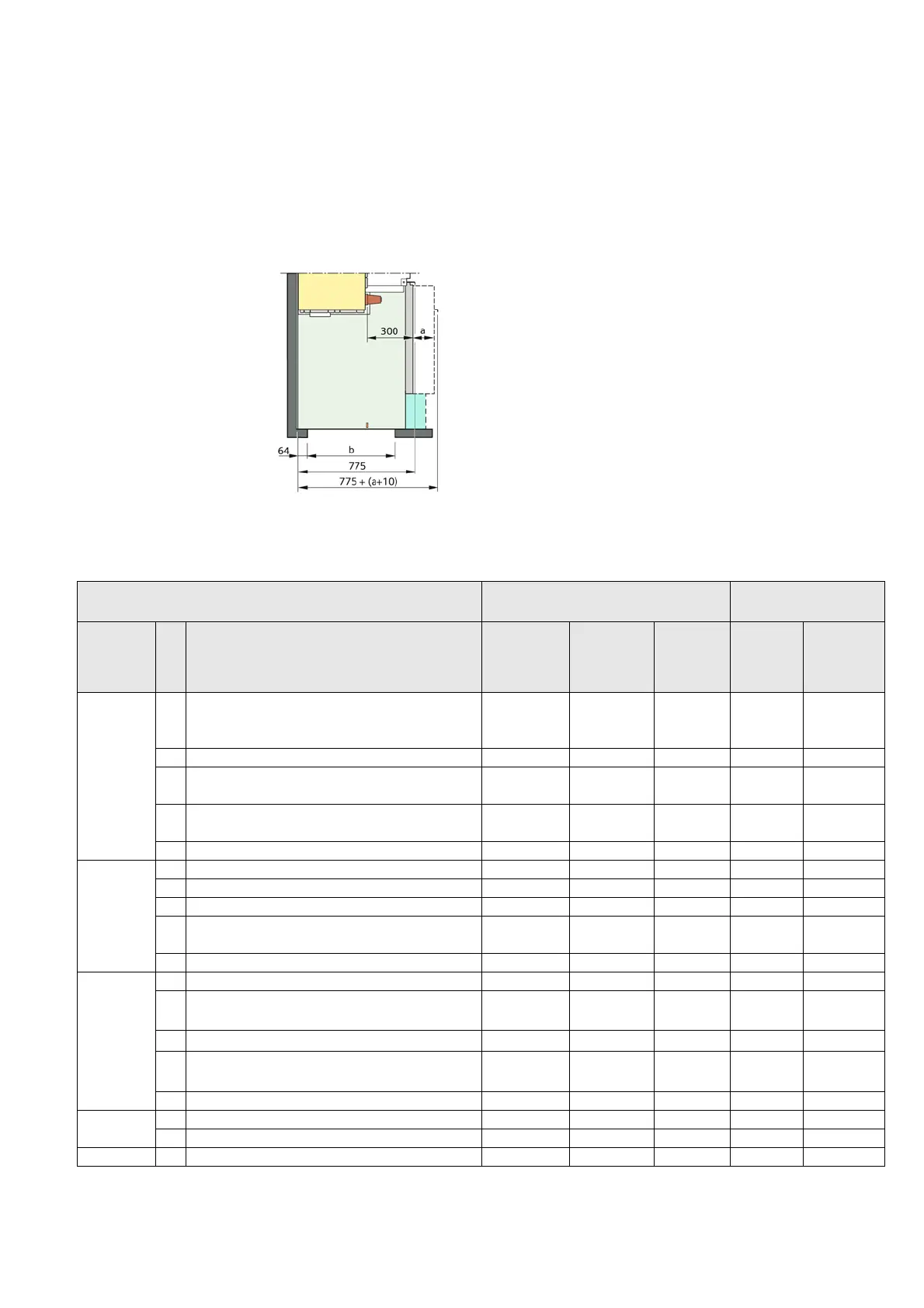

Fig. 15: Mounting depth at the panel connection for panel types R, K and L
Cable plugs for double cable connection (interface type C)
Cable plug Connection combination Deep cable compartment
cover
1
Make Ser.
no.
Type Design
2
Arrangement
of cable plug
(K)
Mounting
depth
(mm)
Deeper by a
(mm)
Depth of
floor
opening b
(mm)
Nexans 1 (K)430TB/G + (K)300PB/G
(K)480TB/G + (K)800PB/G
(K)484TB/G + (K)804PB/G
Screened K + K 290 – 635
2 2x (K)400TB/G with coupling insert (K)400CP Screened K + K 505 250 860
3 (K)400TB/G + (K)400LB/G
with coupling insert (K)400CP-LB
Screened K + K 455 250 860
4 (K)400TB/G + (K)430TB/G
with coupling insert (K)400CP
Screened K + K 403 250 860
5 2x (K)440TB/G with coupling insert (K)440CP Screened K + K 505 250 860
Südkabel 6 SET (12/24) + SEHDK (13.1/23.1) Screened K + K 290 – 635
7 SEHDT 23.1 + SEHDK 23.1 Screened K + K 290 – 635
8 2x SEHDT 23.1 with coupling unit KU 23.2/23 Screened K + K 363 250 860
9 SEHDT (13/23) + SET (12/24)
with coupling unit KU 23 or KU 33
Screened K + K 451 250 860
10 2x SET (12/24) with coupling unit KU 23.2/23 Screened K + K 363 105 715
nkt cables 11 CB 24-630 + CC 24-630 Screened K + K 290 – 635
12 2x CB 24-630 with coupling unit CP 630C
Screened K + K 370
250
105
3
860
715
13 AB 24-630 + AC 24-630 Insulated K + K 290
105
3
715
14 2x AB 24-630 with coupling unit CP 630A
Insulated K + K 370
250
105
3
860
715
15 CB 36-630 (1250) + CC 36-630 (1250) Screened K + K 300 – 635
TE
Connectivity
16 RSTI-58xx + RSTI-CC-58xx Screened K + K 285 – 635
17 RSTI-x9xx + RSTI-CC-x9xx Screened K + K 315 105 715
3M Germany 18 2x 93-EE705-6/xxx with coupling unit KU 23.2 Screened K + K 363 105 715
1
Only for 310 mm and 430 mm wide panels.
2
Use of current transformers and current sensors in combination with insulated systems on request
3
On request
