4 Examination Fundamentals
Instructions for Use 4 - 17

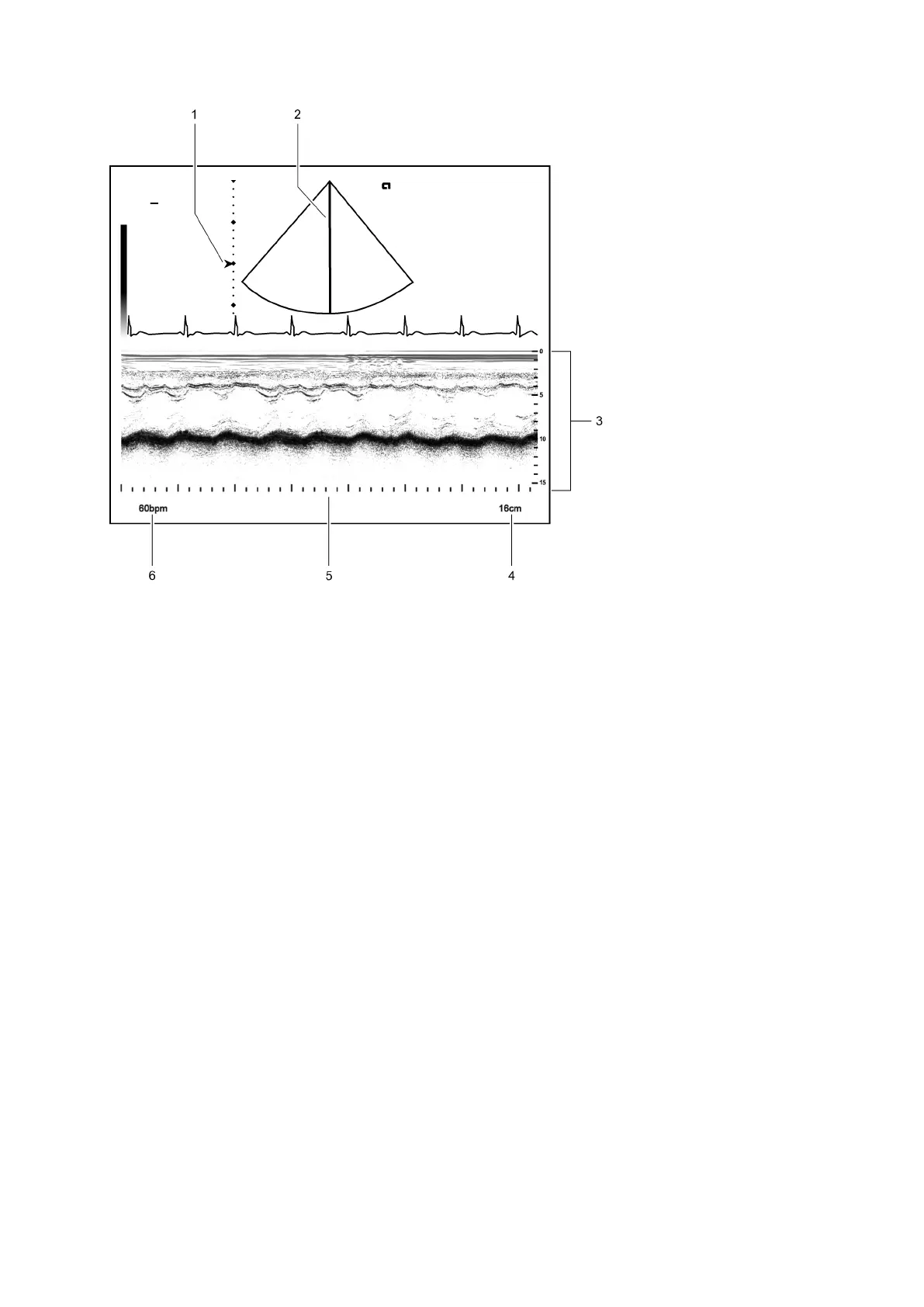

Example of 2D-mode with M-mode imaging.
1 Focal zone markers
2 M-mode cursor
3 M-mode sweep with depth scale
4 Depth
5 Time scale
6 Heart rate
