6 Transesophageal Transducer
6 - 8 Instructions for Use

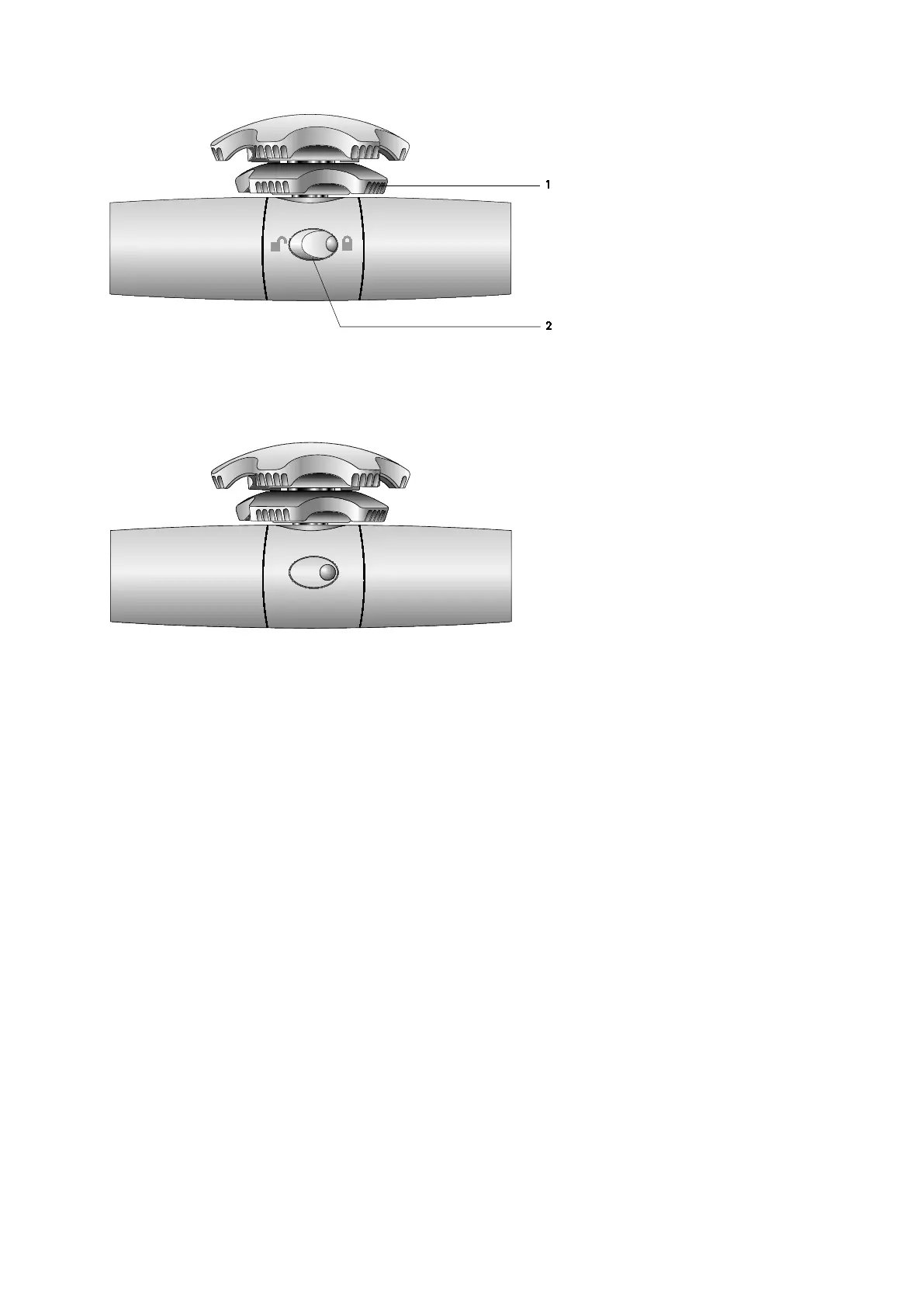

Example of V5Ms transducer with locked/unlocked icons. Brake for Left/Right flex control is in the
locked position.
1 Left/Right flex control (dark gray)
2 Brake for Left/Right flex control (dark gray)
Example of V5Ms transducer without locked/unlocked icons. Brake for Left/Right flex control is in the
unlocked position.
To lock the left/right deflection position of the distal tip:
 Press the raised tactile indicator located on the button of the corresponding brake.
To unlock a brake:
 Press the flat portion on the button of the corresponding brake.
