9 eSieFusion Imaging
9 - 16 Instructions for Use
4. To enable or disable tracking of the needle tip (green circle), select Needle Tip Graphics.

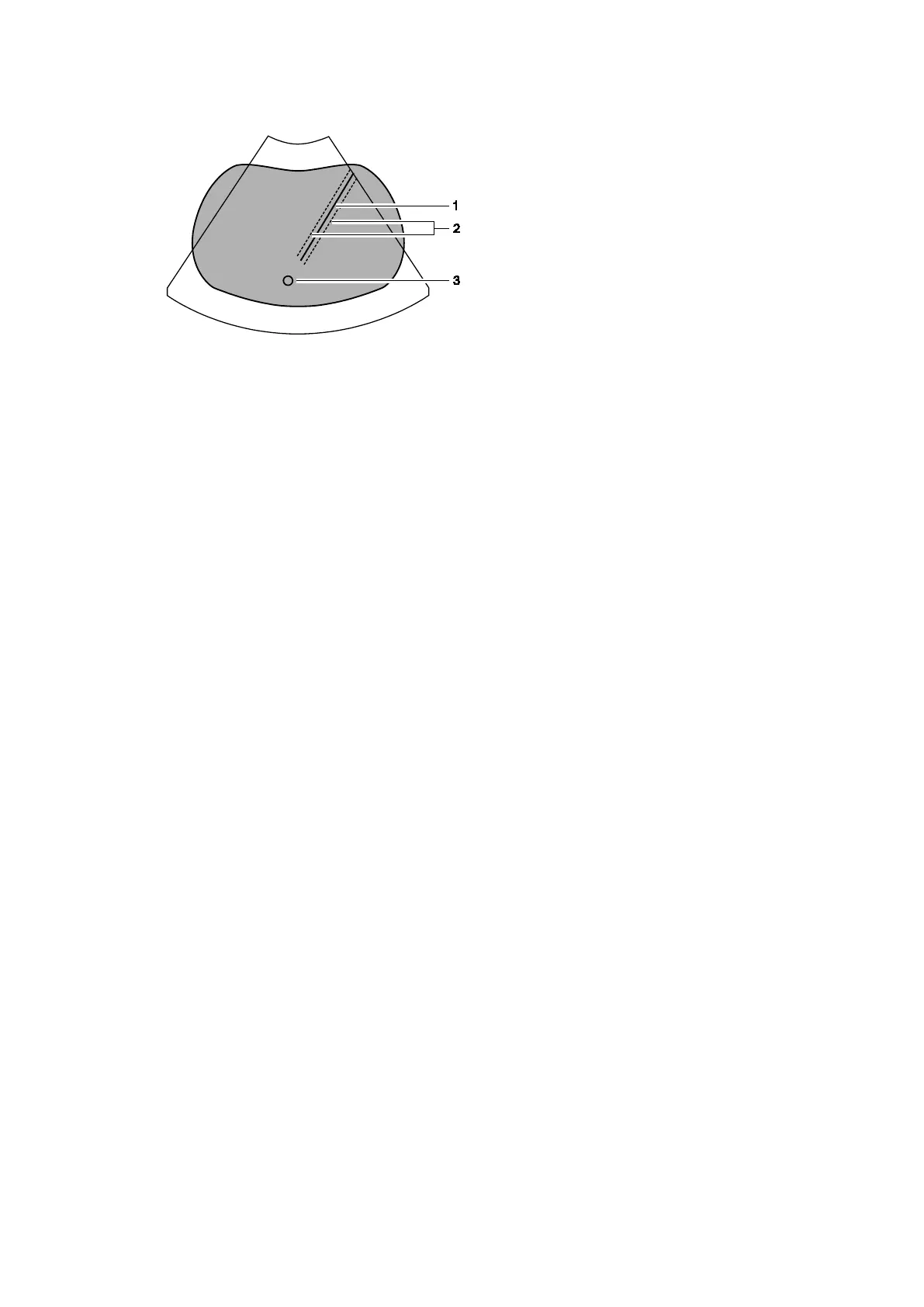

Example of the eSieFusion screen with needle tracking.
1 Indicates the position of the needle (solid line)
2 Indicates 5 mm on each side of the position of the needle (dotted line)
3 Indicates that the needle tip position is outside the image plane
The system displays a graphical indicator of tracking quality for the transducer sensor and
the needle tracking sensor.
5. Use the pan function to view the entire needle path in selected display formats.
See also: Quality Indicators, p. 9-7
