2 Safety and Care
2 - 40 Instructions for Use

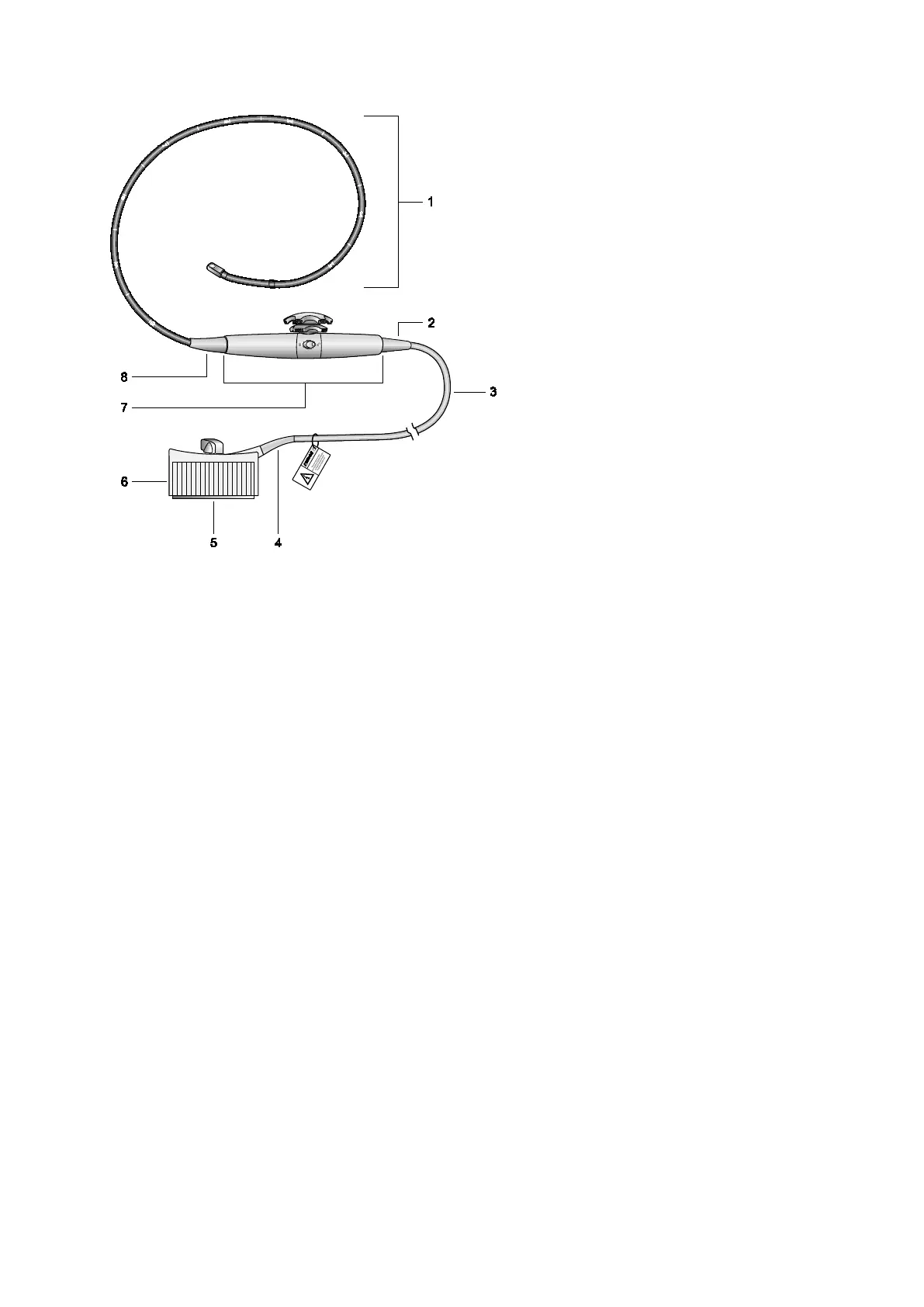

1 Transducer surface in contact with
the patient (flexible shaft with depth
markings, articulating section, and
distal tip)
2 Strain relief for the handle
3 Cable
4 Strain relief for the connector
5 Electrical component on the
connector
6 Connector
7 Handle with controls
8 Strain relief for the handle
Example of transesophageal transducer components.
