Appendix 1: Jumper Settings for System Interrupts
For interrupt-controlled program execution with the CPU 948, there
are four system interrupts available, as follows:
- INT A/B/C/D (dependent on the CPU slot, see System Manual /2/,
- INT E,
- INT F
and
- INT G.
The interrupts you want to use must be enabled using jumpers. The
jumpers are located on the basic board above the receptacle for the

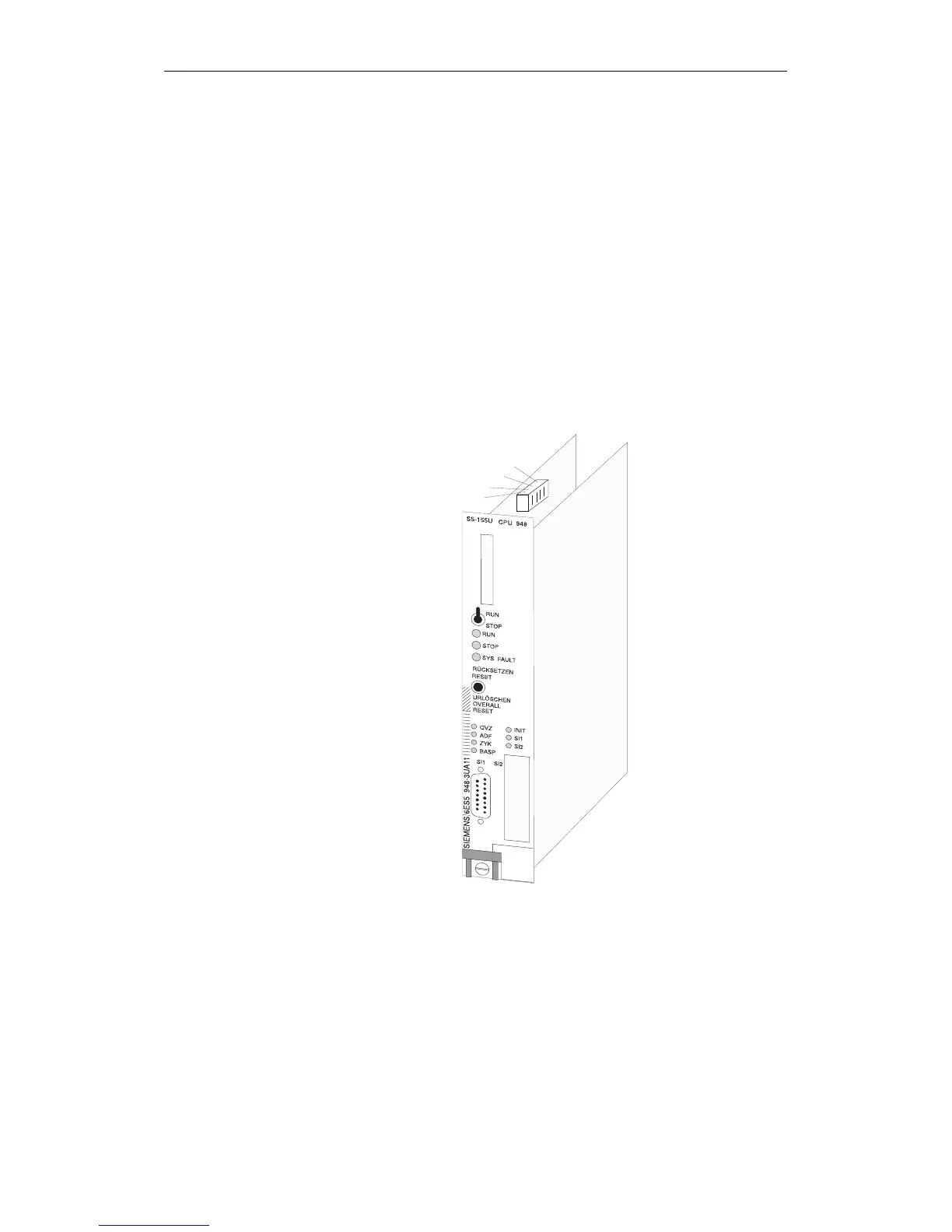

memory card. The exact position can be seen in the following diagram:
INTF
INTG
INTE
INTA/B/C/D
Fig. 12-1 Location of the jumper
Appendix 1: Jumper Settings for System Interrupts
CPU 948 Programming Guide
12 - 4 C79000-G8576-C848-04
