Programming Manual of FC2005/FC901
A6V10333724_b_en_-- 9|63

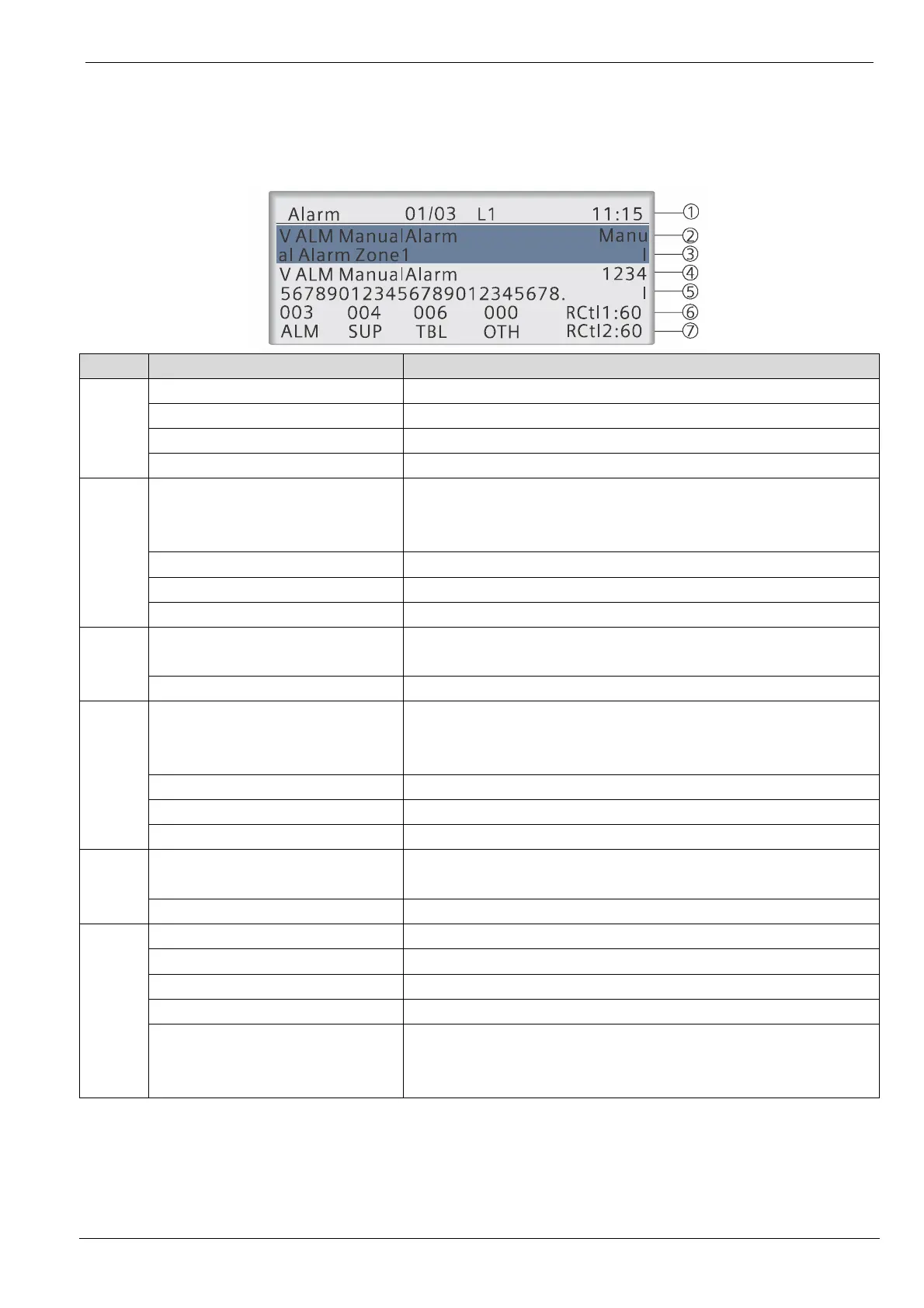

1.3.2 LCD display in Canada
The text displays in the below graphic and table is just an example. The actual display corresponds to the
actual situation.
Line Current text Description
1 Alarm Current event type
01/03 Current event/total events
L1 Access level
11:15 System time
2 V Possible display:
V: The event is acknowledged
!: The event is unacknowledged
ALM Current event type
ManualAlarm Specific current event type
Manu Connects to the content in line 3
3 al Alarm Zone1 Event location (see complete information together with the last 4
characters in line 2)
I Possible display: I/O (in or out flag)
4 V Possible display:
V: The event is acknowledged
!: The event is unacknowledged
ALM Current event type
ManualAlarm Specific current event type
1234 Connects to the content in line 2
5 567890123456789012345678. User defined (Max. 30 characters; see complete information
together with the last 4 characters in line 2)
I Possible display: I/O (in or out flag)
6, 7 003 ALM Alarm event amount
004 SUP Supervisory event amount
006 TBL Trouble event amount
000 OTH Other event amount
RCtl1:60
RCtl2:60
Releasing timer name and releasing count down time (60 s by
default; Max. 60 s; DIS (discharge) is displayed after count
down.)
To Next Page
