Siemens FC2005 - Enclosure Mounting

Programming Manual of FC2005/FC901
A6V10333724_b_en_-- 27|63
12. HOW TO SAVE CONFIGURE
Function: To save changes permanently, otherwise the changes will be lost when the system is restarted.
Steps:
1. Press “Menu” to display the main menu (Fig.15-1).
2. Press “→” to select "Conf" submenu (Fig.15-2), press “OK” to
display the configuration saving window (Fig.15-3).
3. Press "OK" to confirm saving change and return to previous
screen.

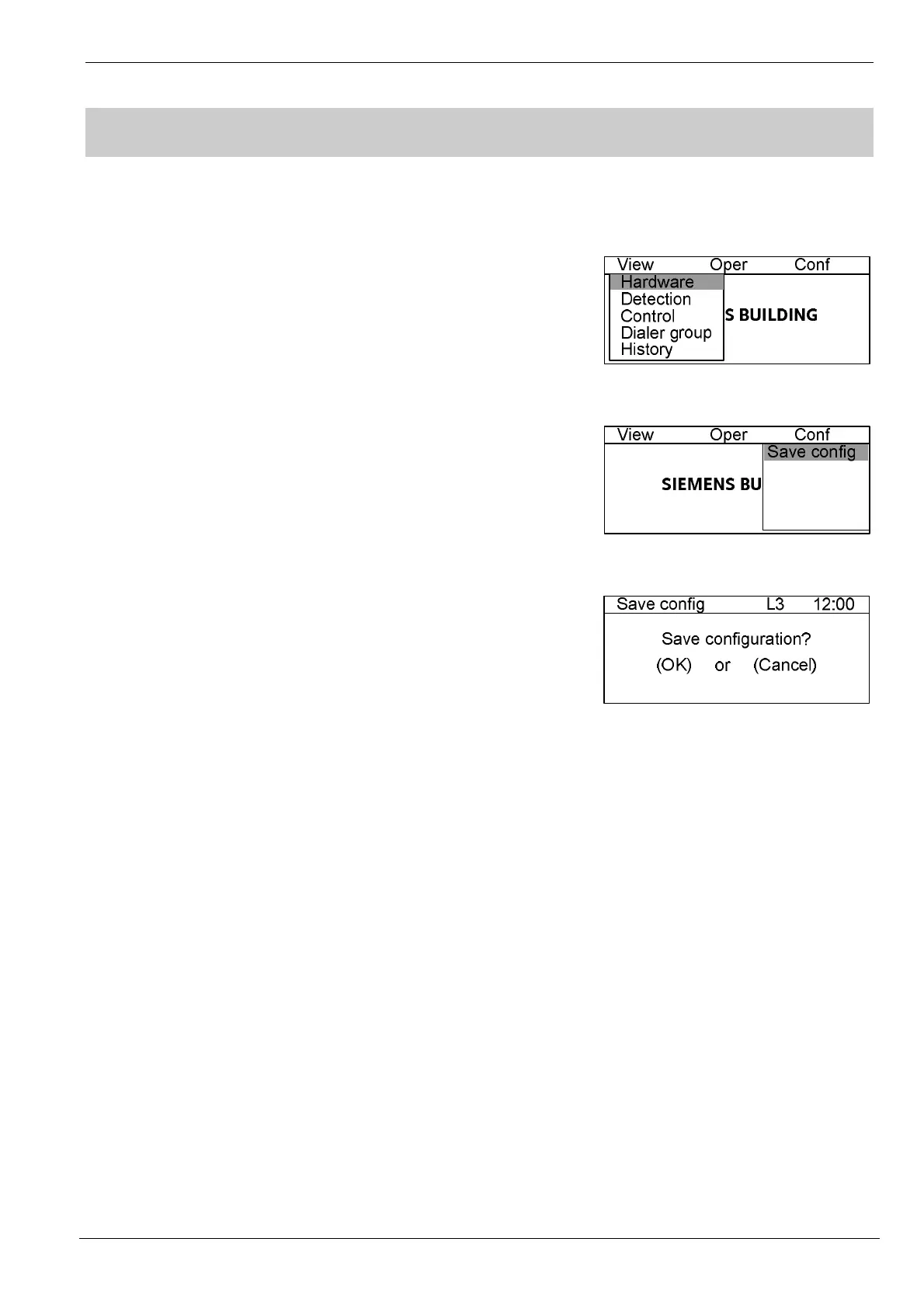

Fig.15-1
Fig.15-2
Fig. 15-3
