Programming Manual of FC2005/FC901
8|63 A6V10333724_b_en_--
1.3 LCD display
A 160 by 64 dot LCD display is used to display information such as event types, event amount, event location,
user level, releasing timer, etc. A back light is included in the display to assure visibility in dim light. To save
power, the back light is only activated during a reported event or on operation of a display control button.
The LCD display has altogether 7 lines, and each line displays 26 characters. It displays two events at a time.
Users can cycle through a circular list once the first event or last event message is reached.
1.3.1 LCD display in US

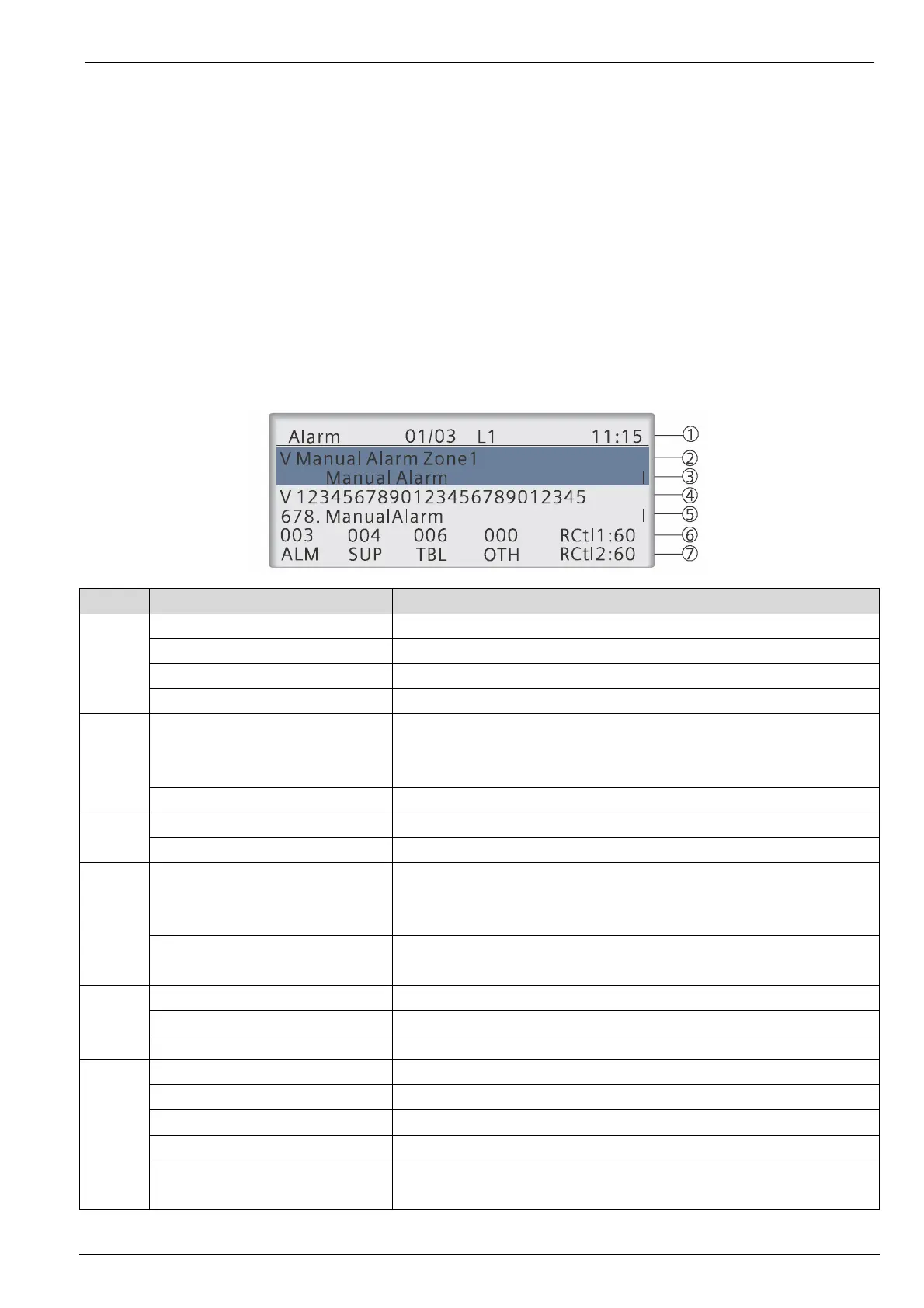

The text displays in the below graphic and table is just an example. The actual display corresponds to the
actual situation.
Line Current text Description
1 Alarm Current event type
01/03 Current event/total events
L1 Access level
11:15 System time
2 V Possible display:
V: The event is acknowledged
!: The event is unacknowledged
Manual Alarm Zone1 Event location
3 Manual Alarm Event type
I Possible display: I/O (in or out flag)
4 V Possible display:
V: The event is acknowledged
!: The event is unacknowledged
1234567890123456789012345 User defined (Max. 30 characters; see complete information
together with the first 4 characters in line 5)
5 678. Connects to the content in Line 4
ManualAlarm Event type
I Possible display: I/O (in or out flag)
6, 7 003 ALM Alarm event amount
004 SUP Supervisory event amount
006 TBL Trouble event amount
000 OTH Other event amount
RCtl1:60
RCtl2:60
Releasing timer and releasing count down time (60 s by default;
Max. 60 s; DIS (discharge) is displayed after count down.)
