Programming Manual of FC2005/FC901
16|63 A6V10333724_b_en_--

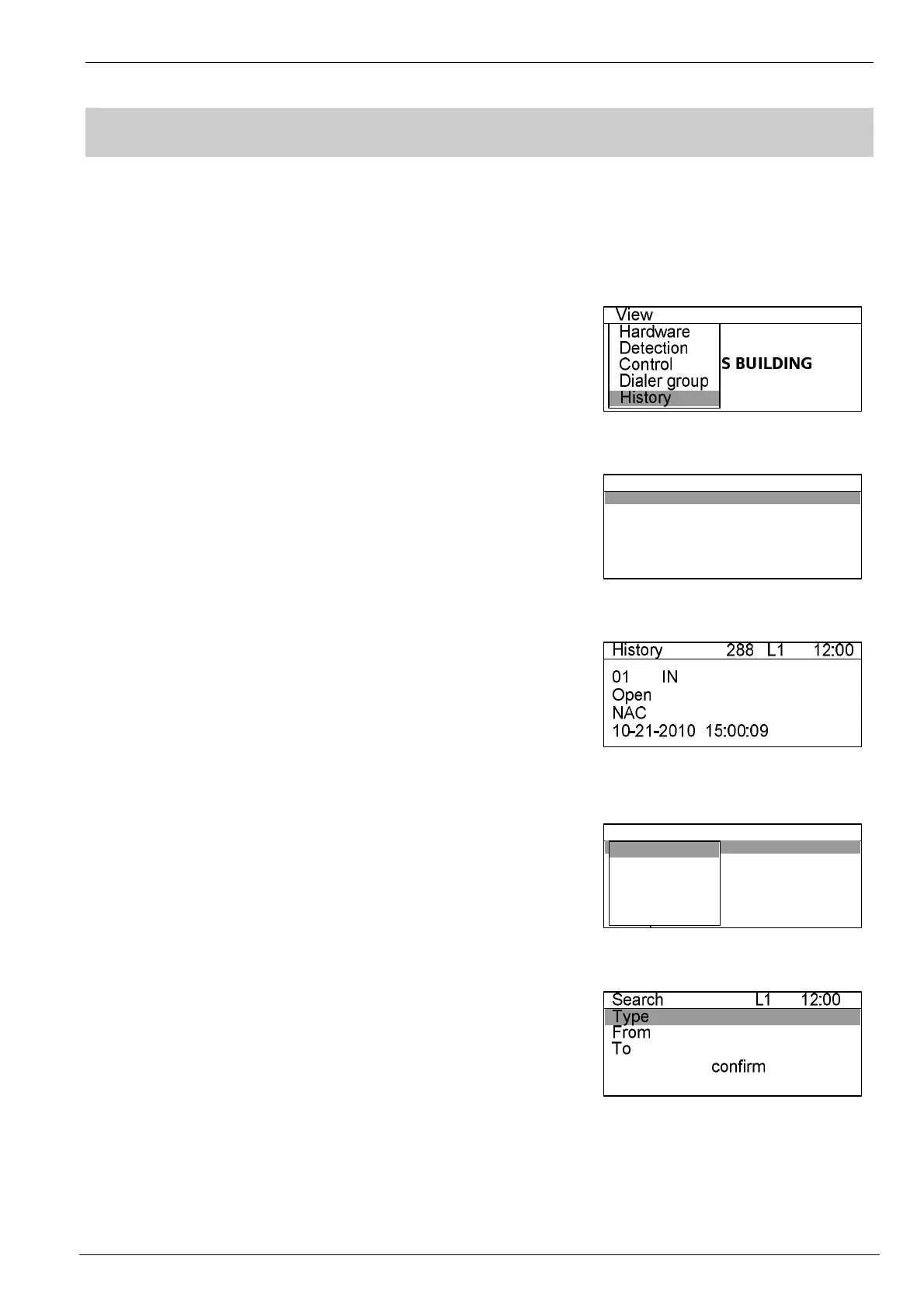

2. HOW TO VIEW HISTORY
Function: A panel includes a non-volatile memory recording 1000 system events. Identified alarm, trouble,
supervisory, status and other significant events will be recorded along with the date and time of occurrence.
This feature allows user to view these events.
Steps:
1. Press “Menu” to display the main menu (Fig. 5-1).
2. Press "↓" to select “History” item and press “OK”, all history
events are displayed in order of occurance time (Fig. 5-2).
3. Press "↓"/“↑” to navigate a history event and press “OK”. The
detail information is displayed (Fig. 5-3).
4. Press “C” to return to previous screen.
Search:
Step 1 and step 2 is same as above.
3. Press “Menu” to display “Option” menu (Fig. 5-4) and press “OK”
to display search items (Fig. 5-5). There are two kinds of items:
type and time.
Type: There are six kinds of type: alarm, trouble, supervision,
status, test, disable. Press "↓"/“↑” to navigate one type and
press “OK”, all history events of the type are listed.
Time: Select “From” and press”OK” to enter starting time; Select
“To” and press”OK” to enter ending time; Select “Confirm” and
press “OK”, all events which occure during the period are listed.
Fig.5-1
01 Oven 10-21-2010 15:00:
02 Acknowledge 10-21-2010
03 Unacknowledge 10-21-20
04 Acknowledge 10-21-2010
05 Open 10-21-2010 15:00:
06 Open 10-21-2010 15:00:
History 288 L1 12:
01 Open 10-21-2010 15:00:
Fig.5-2
Fig.5-3
01 Oven 2010-12-03 15:00:09
02 Open 2010-12-03 15:00:10
03 Open 2010-12-03 15:00:11
04 Open 2010-12-03 15:00:12
05 Open 2010-12-03 15:00:13
06 Open 2010-12-03 15:00:14
Option
01 Open 2010-12-03 15:00:09
View
Search
Fig.5-4
Fig.5-5
