Siemens M20 Terminal User Manual

Technical data
Version 8 dated 15.03.00 214
Siemens Information and Communication Products
A

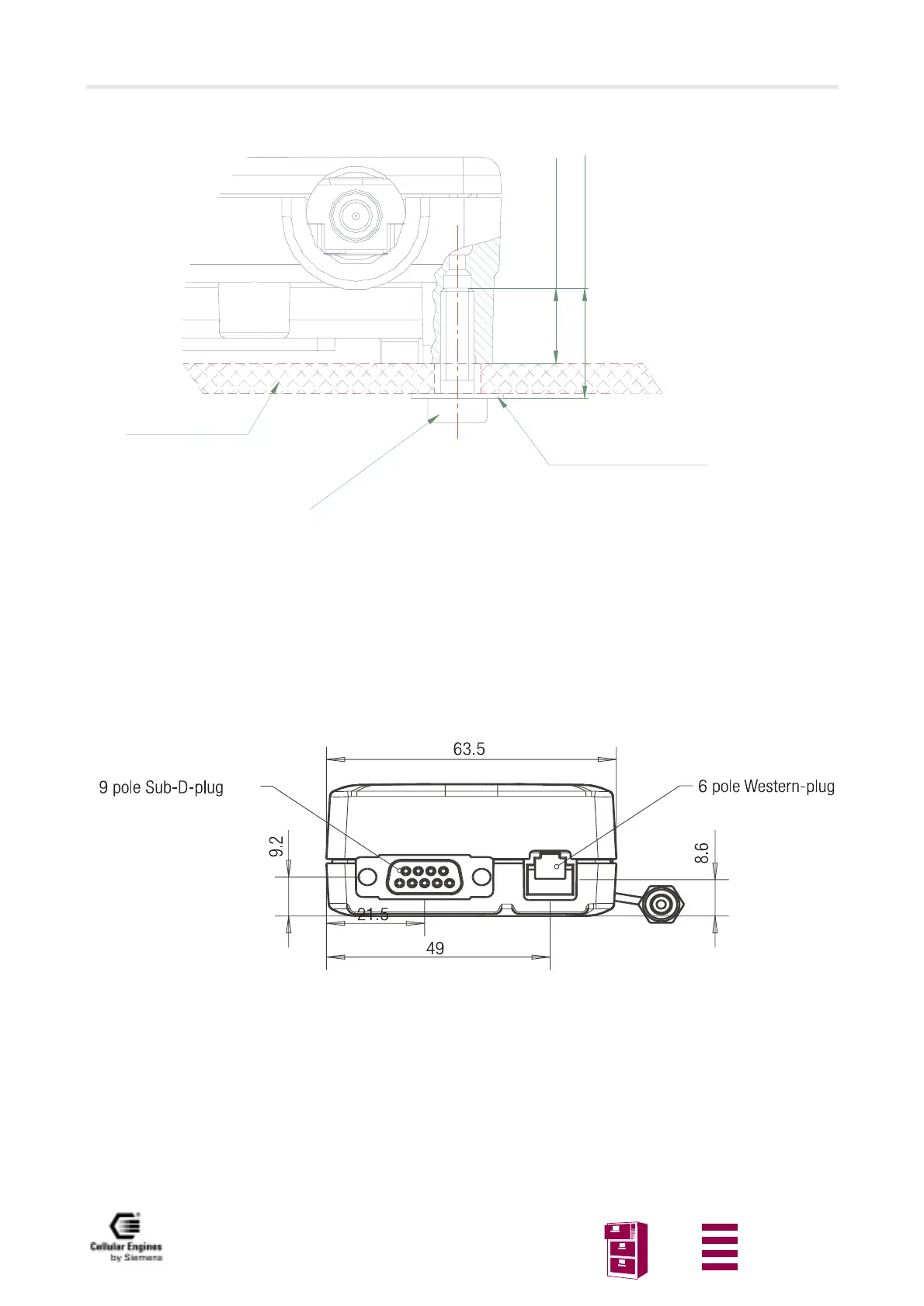

15.2.1 M20 Screw Dimensions
Fig. 15-2 M20 screw dimensions
15.3 Design drawing of the M20 Terminal
Fig. 15-3 M20 Terminal front view
Screw: metal thread-cutting screw, diameter 1.8mm,
free of oil and grease
Screw in depth (into housing): min 3mm, max. 4.5mm
Tightening torque: 0.2Nm+-0.05
Optional spacer
PCB
Screw in depth
Lengh of screw
