Technical data
Version 8 dated 15.03.00 216
Siemens Information and Communication Products
A

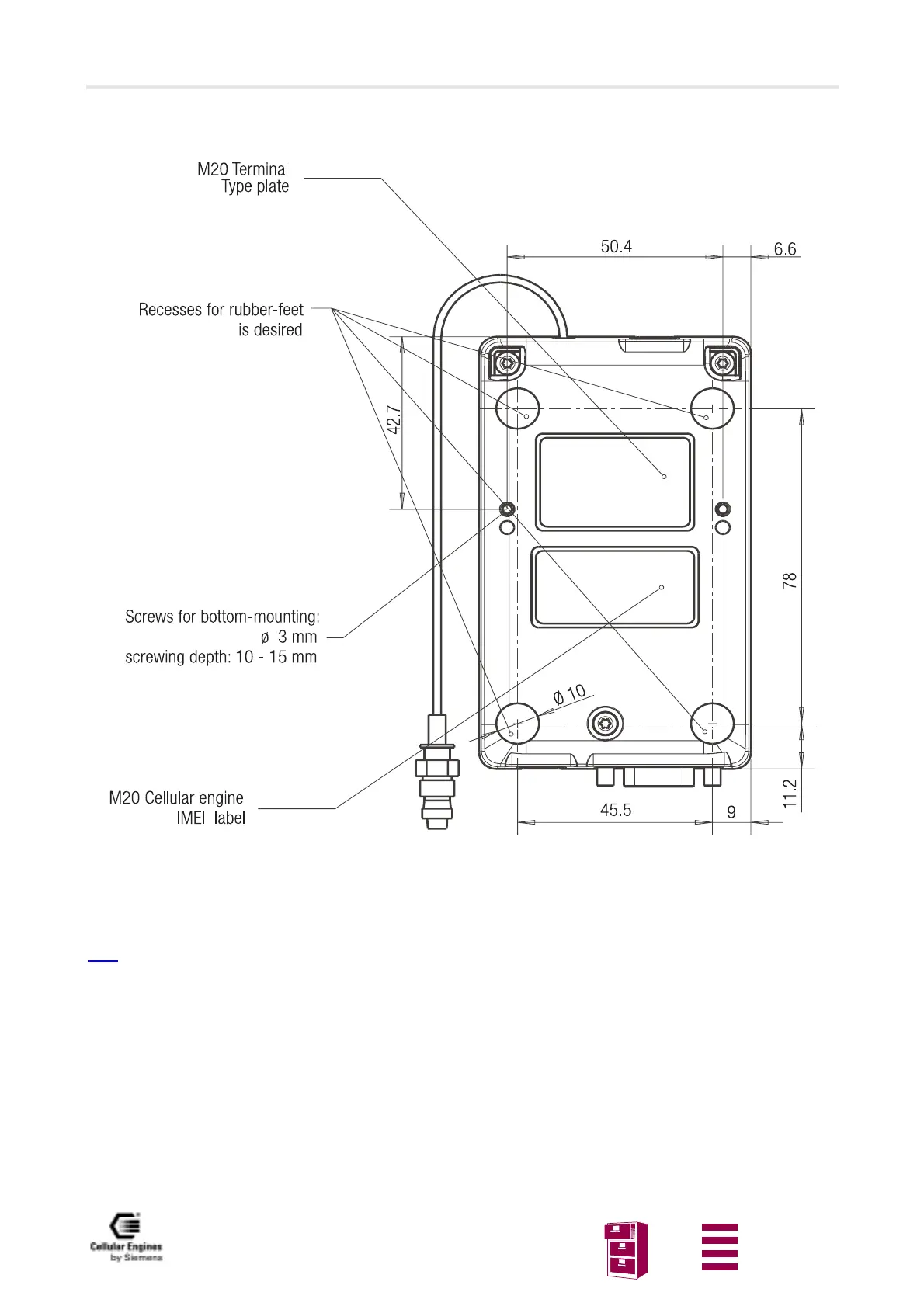

Fig. 15-6 M20 Terminal bottom view
There are two possibilities for mounting the device:
• with M3 screws (length > 35 mm) for mounting from the top
• with 3 mm diameter screws for mounting from the bottom (hole depth 15 mm)
Note
: when mounting the M20 Terminal from the bottom, the holes for the screws are shielded on the inside, thus preven-
ting particles from entering the terminal. This cover is situated 15 mm from the base. The use of longer screws will destroy
this cover, resulting in a 3 mm hole if the screw is removed. In this case protection-class IP40 cannot be guaranteed!
