3 Commissioning
MICROMASTER 430 Operating Instructions
6SE6400-5AC00-0BP0
35
3.2.1 Commissioning with the SDP
In addition, the following conditions must be met:
Ø Linear V/f motor speed controlled by an analog potentiometer.
Ø Maximum speed 3000 rpm at 50 Hz (3600 rpm at 60 Hz); can be controlled by
a potentiometer via the analog inputs of the inverter.
Ø Ramp-up time = 10 s
Ø Ramp-down time = 30 s
Settings for more complex applications can be found in the parameter list and in
Section 3.2.2 "Commission Overview with BOP-2".
Table 3-1 Default settings for operation using the SDP
Terminals Parameter Default Operation
Digital Input 1 5 P0701 = ‘1’ ON right
Digital Input 2 * 6 P0702 = ‘12’ Reverse
Digital Input 3 7 P0703 = ‘9’ Fault Acknowledge
Digital Input 4 8 P0704 = ‘15’ Fixed Frequency
Digital Input 5 16 P0705 = ‘15’ Fixed Frequency
Digital Input 6 17 P0706 = ‘15’ Fixed Frequency
Digital Input 7 Via AIN1 P0707 = ‘0’ Inactive
Digital Input 8 Via AIN2 P0708 = ‘0’ Inactive

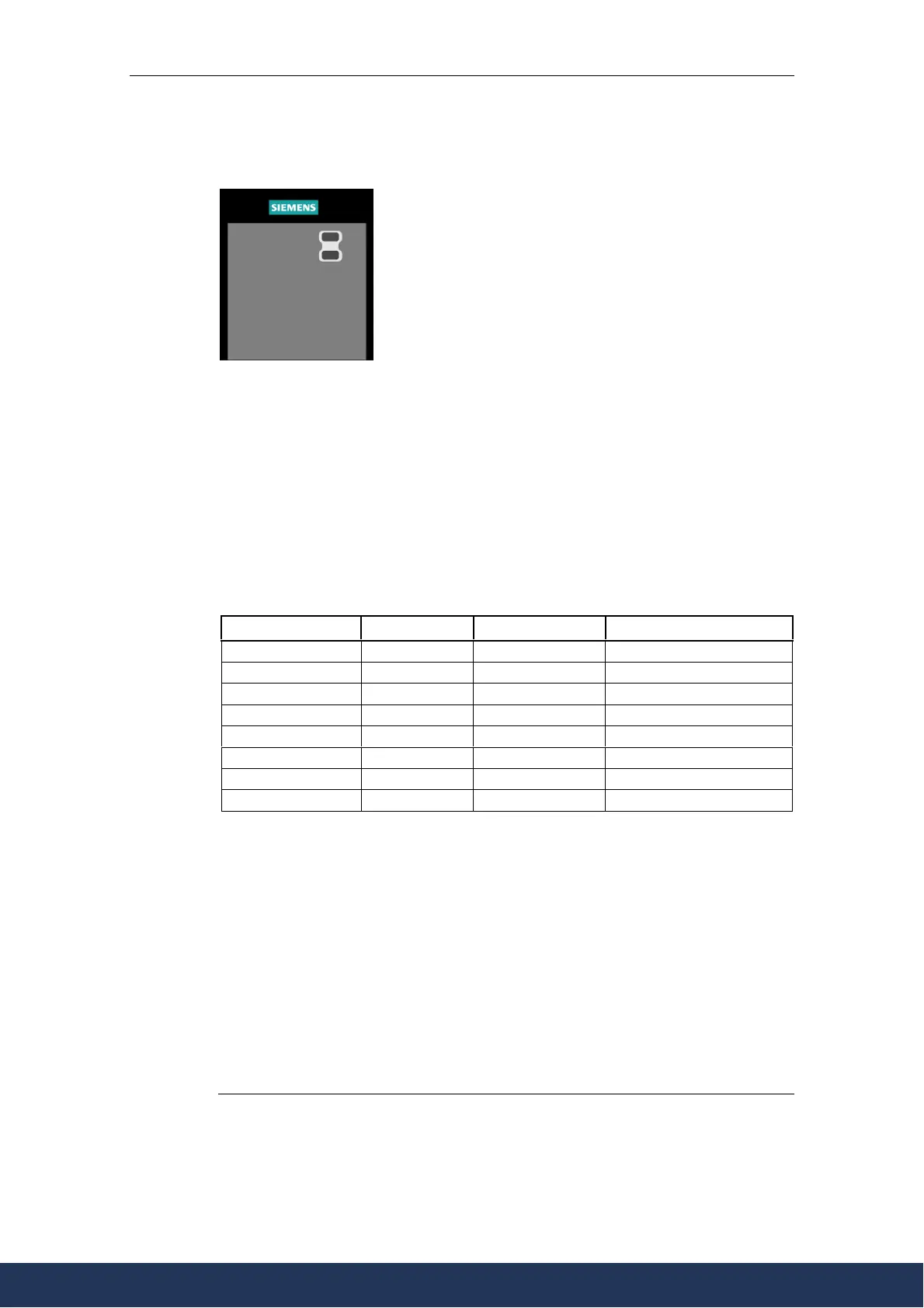

The SDP has two LEDs on the front which display the
current operating status of the inverter (see Section 6.1).
When the SDP is used, the presettings of the inverter
must be compatible with the following motor data:
Ø Rated motor power
Ø Motor voltage
Ø Rated motor current
Ø Rated motor frequency
(A conventional Siemens motor is recommended)
* The standard setting for the change of rotation direction is as inhibited.
(Parameter 1110)
