3 Commissioning
MICROMASTER 430 Operating Instructions
34 6SE6400-5AC00-0BP0
3.2 Commission modes
In the standard version, the MICROMASTER 430 is fitted with the Status Display
Panel (SDP) (see Figure 3-2) with which it is possible to use the inverter with the
pre-assigned factory settings for a large range of applications. If these factory
settings are not suitable, you can adapt them to suit your equipment conditions
using the Basic Operator Panel-2 (BOP-2) (see Figure 3-2). The BOP-2 are
available as options. You can also adjust the factory settings using the PC IBN tool.
This software is available on the CD ROM which comes with the documentation of
the unit.
ATTENTION
MICROMASTER 430 can only be operated with the BOP-2.
It is not possible to use BOP or AOP.
SDP
Status Display Panel
BOP-2
Basic Operator Panel

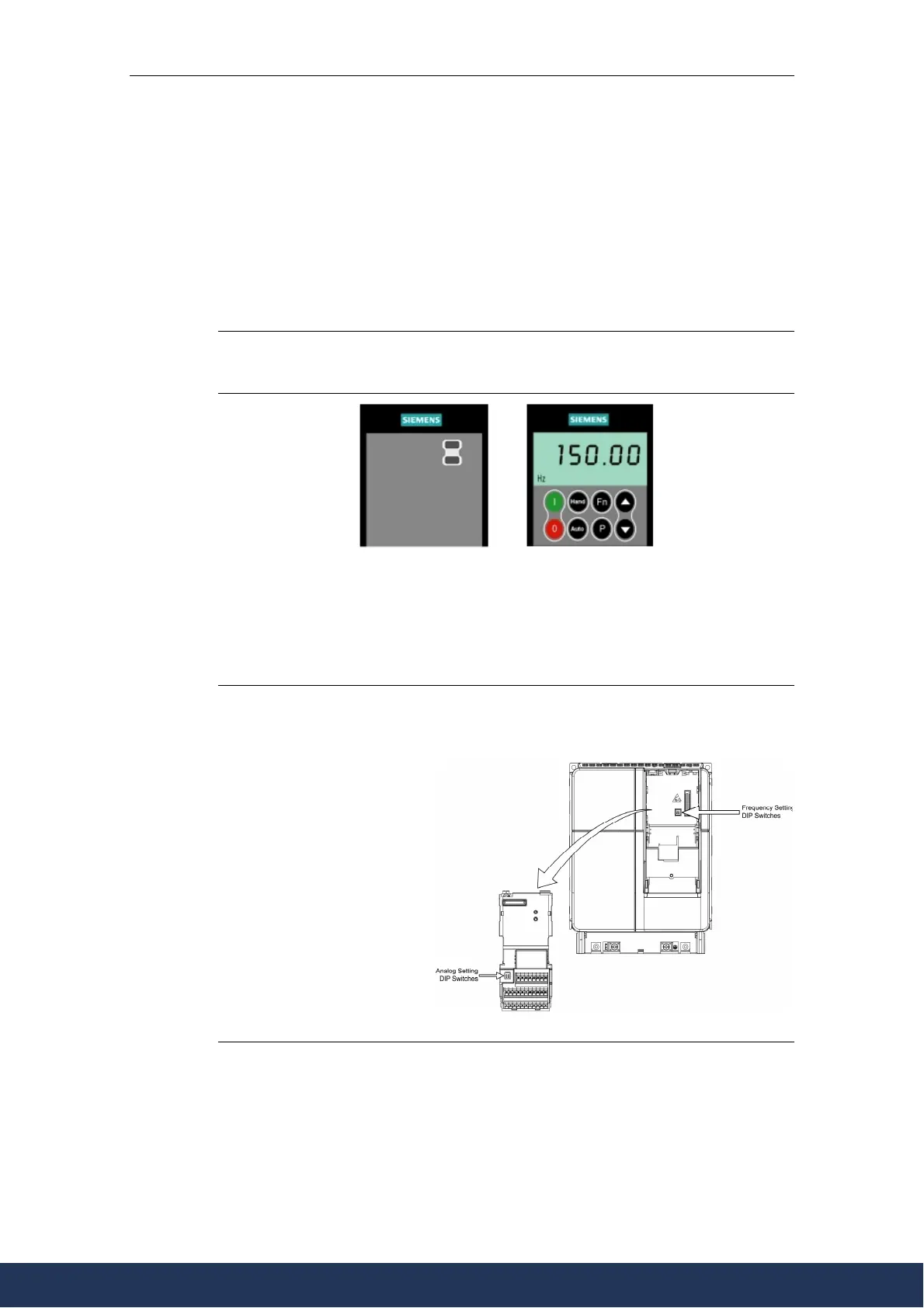

Figure 3-2 Panels available for the MICROMASTER 430 Inverter
For notes on replacing the operator panels please refer to the corresponding
annexes A to this manual.
NOTICE
Frequency setting; the DIP switch is located on the control board, underneath the
I/O board as shown in Figure 3-3 below. The inverter is delivered as follows:
Ø DIP switch 2:
♦ Off position:
European defaults
(50 Hz, kW etc.)
♦ On position: North
American defaults
(60 Hz, hp etc.)
Ø DIP switch 1:
Not for customer use.
Figure 3-3 DIP switch
