2 Installation
MICROMASTER 430 Operating Instructions
24 6SE6400-5AC00-0BP0
Ø 5.5 mm
0.22"
204 mm
8.03"
174 mm
6.85"
FRAME SIZE C
FRAME SIZE D
Ø 17.5 mm
0.68"
486 mm
19.13"
235 mm
9.25"
FRAME SIZE E
616.4 mm
24.27"
Ø 17.5 mm
0.68"
235 mm
9.25"
FRAME SIZE F
810 mm
31.89"
with
filter
1110 mm
43.70"
Ø 15 mm
0.59"
300 mm
11.81"

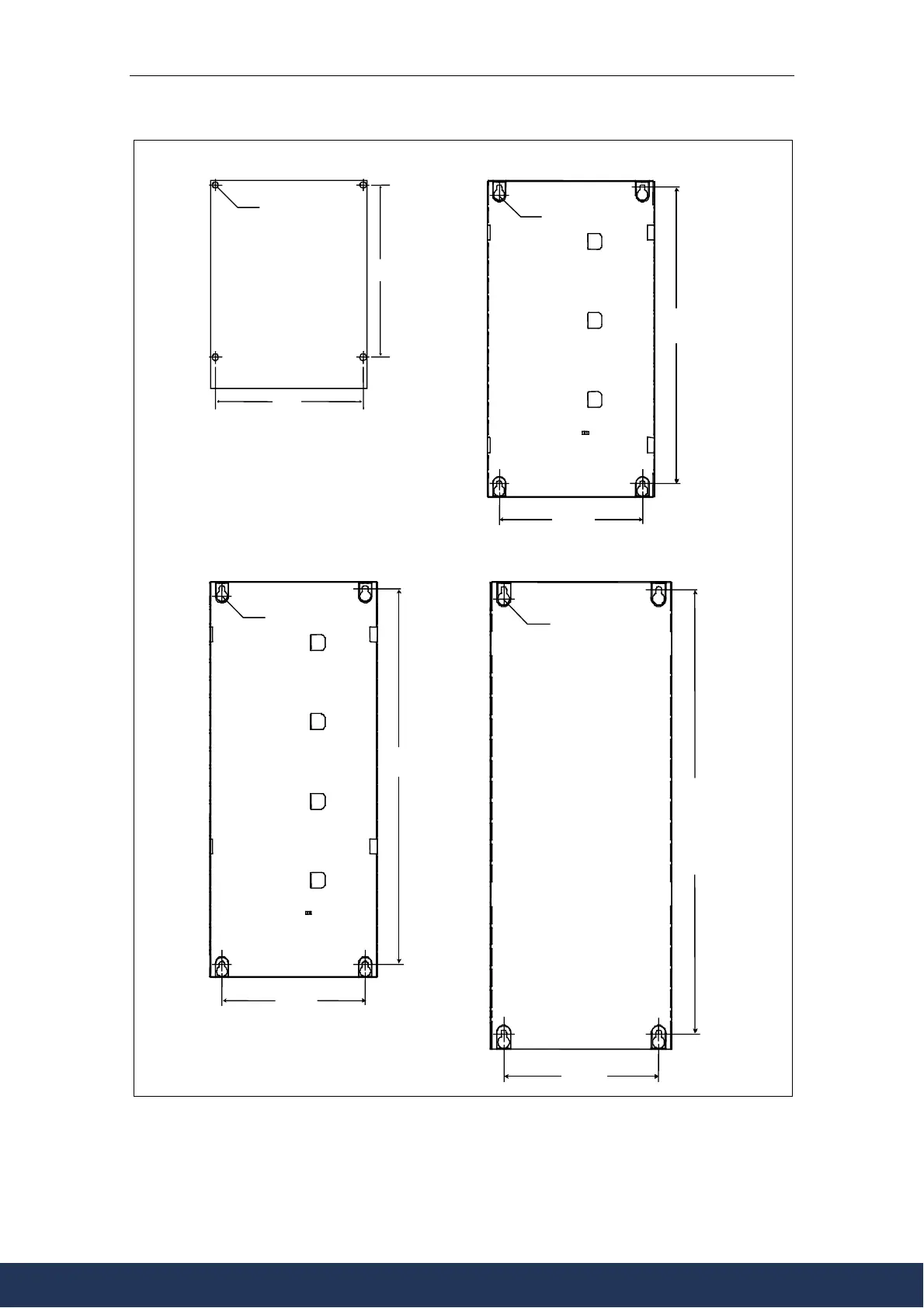

Figure 2-4 Drill pattern for MICROMASTER 430
