3 Commissioning
MICROMASTER 430 Operating Instructions
44 6SE6400-5AC00-0BP0
Motor data for parameterization
50 Hz
230/400V
0.61 0.35 A
Cos j 0.81
Cos j 0.81
65%
0.12kW
2800 / min
3_Mot
IEC 56
IM B3
Nr. ED510 3053
IP54 Rot KL 16
60 Hz 440V Y
0.34A
0.14 kW
3310 /min
S.F. -- 1.15
12.022
I.CI.F
P0308 P0310 P0304
P0309 P0305 P0311 P0307

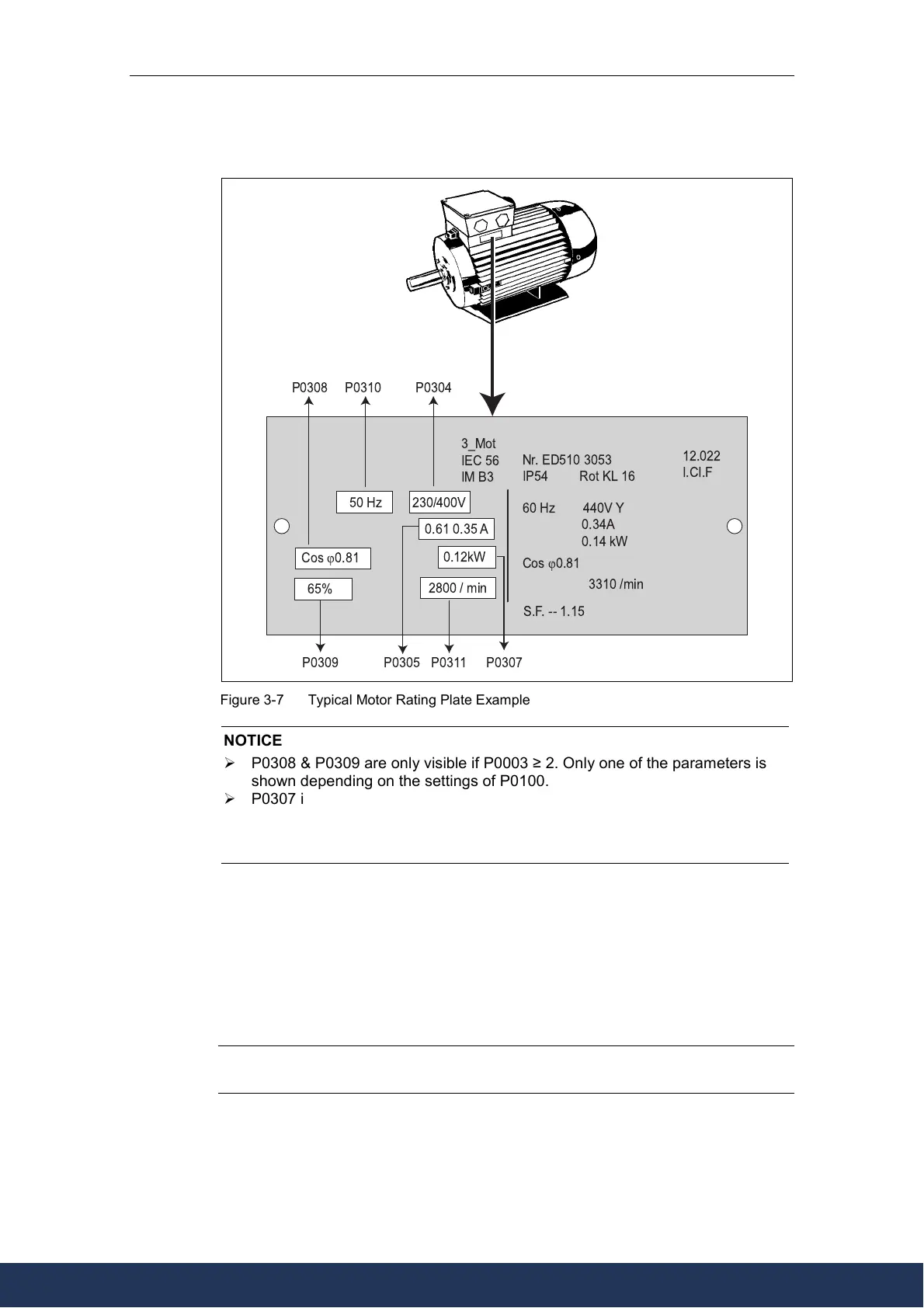

Figure 3-7 Typical Motor Rating Plate Example
NOTICE
Ø P0308 & P0309 are only visible if P0003 ≥ 2. Only one of the parameters is
shown depending on the settings of P0100.
Ø P0307 indicates kW or HP depending upon the setting of P0100. For detailed
information, please see the Parameter List.
Ø Changing motor parameters is not possible unless P0010=1.
Ø Ensure that the inverter is configured correctly to the motor.
3.2.4 Reset to Factory default
To reset all parameters to the factory default settings; the following parameters
should be set as follows (BOP-2 or Communication Option needed):
1. Set
P0010=30.
2. Set
P0970=1.
NOTE
The reset process can take up to 3 minutes to complete.
