Mounting
4.3 Fixing
MicroSAM
56 Operating Instructions, 06/2012, C79000-G5376-C560-07
4.3 Fixing
The gas chromatograph is supplied preassembled on a metal bracket.
The device is:
● Secured using four screws through four holes in the metal bracket.
● Secured using two screws through the two elongated holes in the metal bracket to allow
simple removal.
NOTICE
Note the correct mounting position
The chromatograph must always be mounted horizontally with the analysis module at
the top. When mounted correctly, the technical specifications are guaranteed, and the
text can be read in the inspection window.
If you wish to mount the chromatograph in a different position, please first contact
Siemens AG servicing personnel.
[
/ PP
1
2
3
4
5
6
7
8

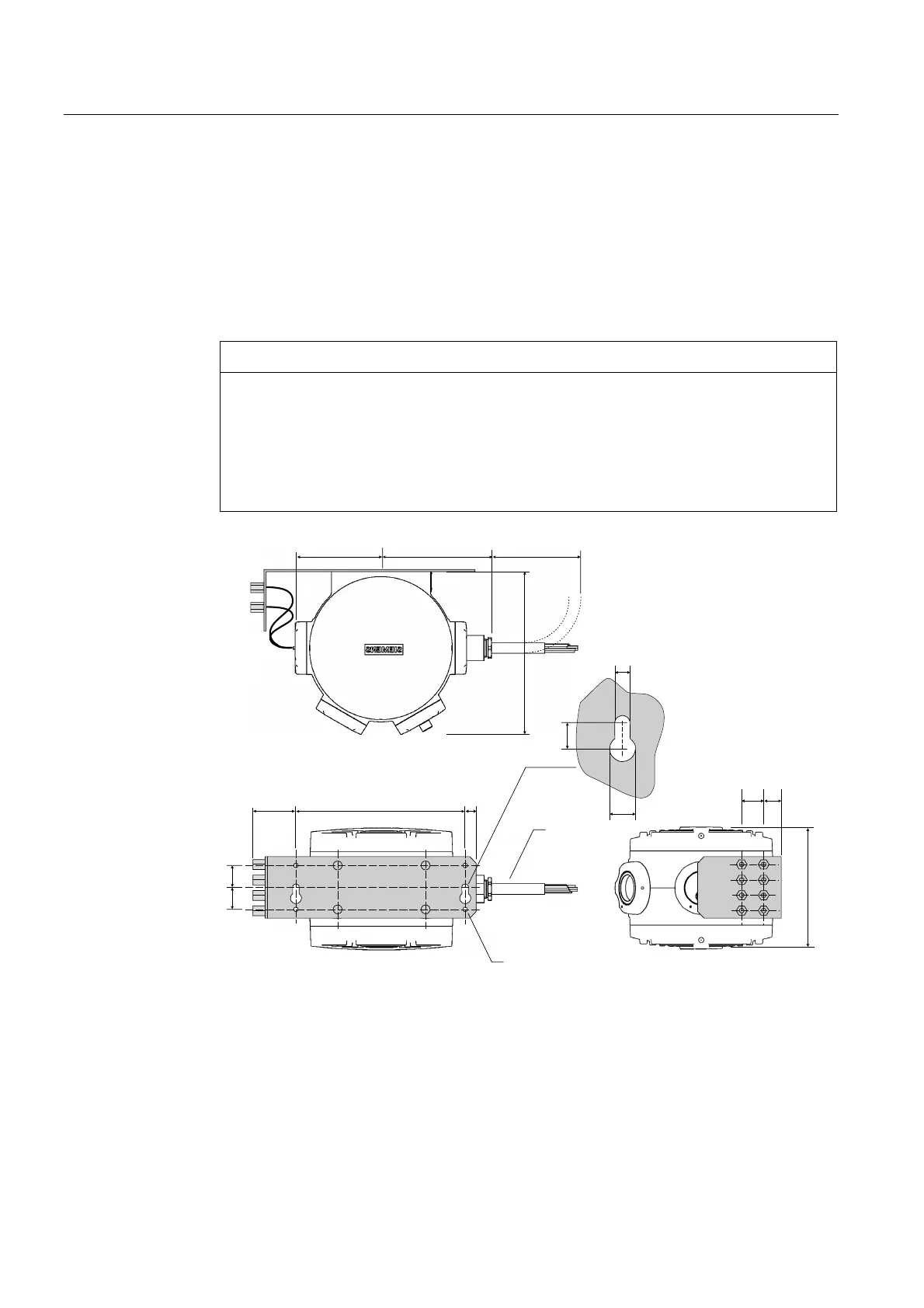

Figure 4-1 Gas chromatograph mounting
