Siemens MicroSAM - Purge Sample Loop

Description
3.6 Functions
MicroSAM
Operating Instructions, 06/2012, C79000-G5376-C560-07
39

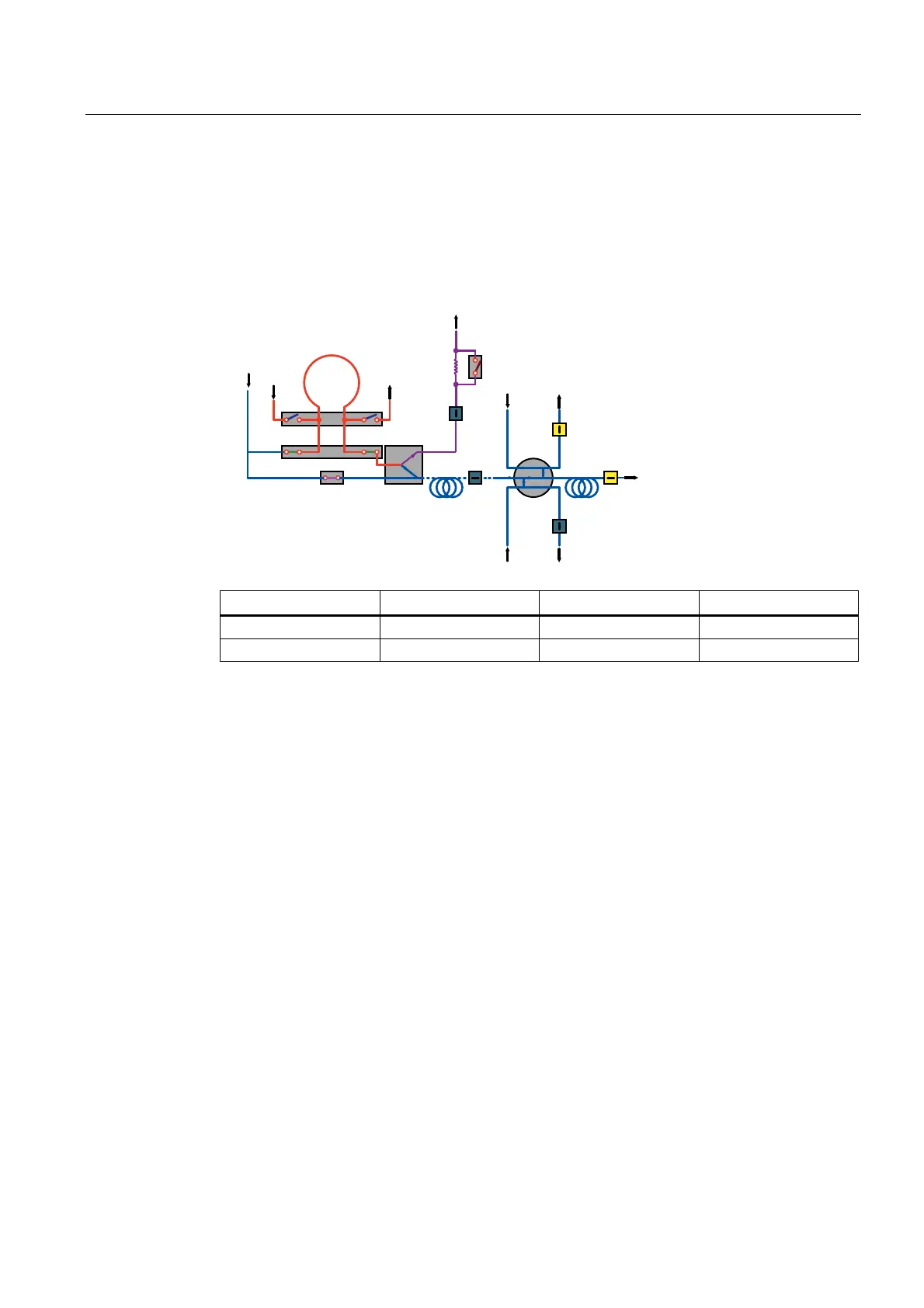

3.6.5.2 Purge sample loop
Live
Time switching point t
4
= -10 s. The contents of the sample loop are transferred to the outlet
"Backflush" by means of the live injection.
&ROXPQ
7&'% 
7&'% 
7&'$
7&'
&ROXPQ
6DPSOH
2XW
&*
09
09
09
09
09
09
6DPSOH
,Q

/RRS
6DPSOH
(3&
(3&
7&'$

%DFNIOXVK
(3&
/LYH
,QMHFWLRQ
/LYH
6ZLWFKLQJ
MV1 MV2 MV3 MV4
Flush loop Sample Backflush Injection
ON ON OFF OFF
