3.6.8 Monitoring of the chromatograph functions
The gas chromatograph is a measuring instrument for determining the concentration of
selected components in a process gas. The intended use of the device includes checking of
correct functioning at regular intervals.
Display
Up to release version 4, the display consists of 8 LEDs. From release version 5 onwards, the
display consists of an alphanumeric display and 6 LEDs.
5HDG\
0DLQW5HJ
)DLOXUH
6DPSOHIORZ
+HDUWEHDW
9'&
+HDOWK6WDWXV
3RZHU
5HDG\
+HDUWEHDW
0DLQW5HT
6DPSOHIORZ
6&2
PRO
)DLOXUH

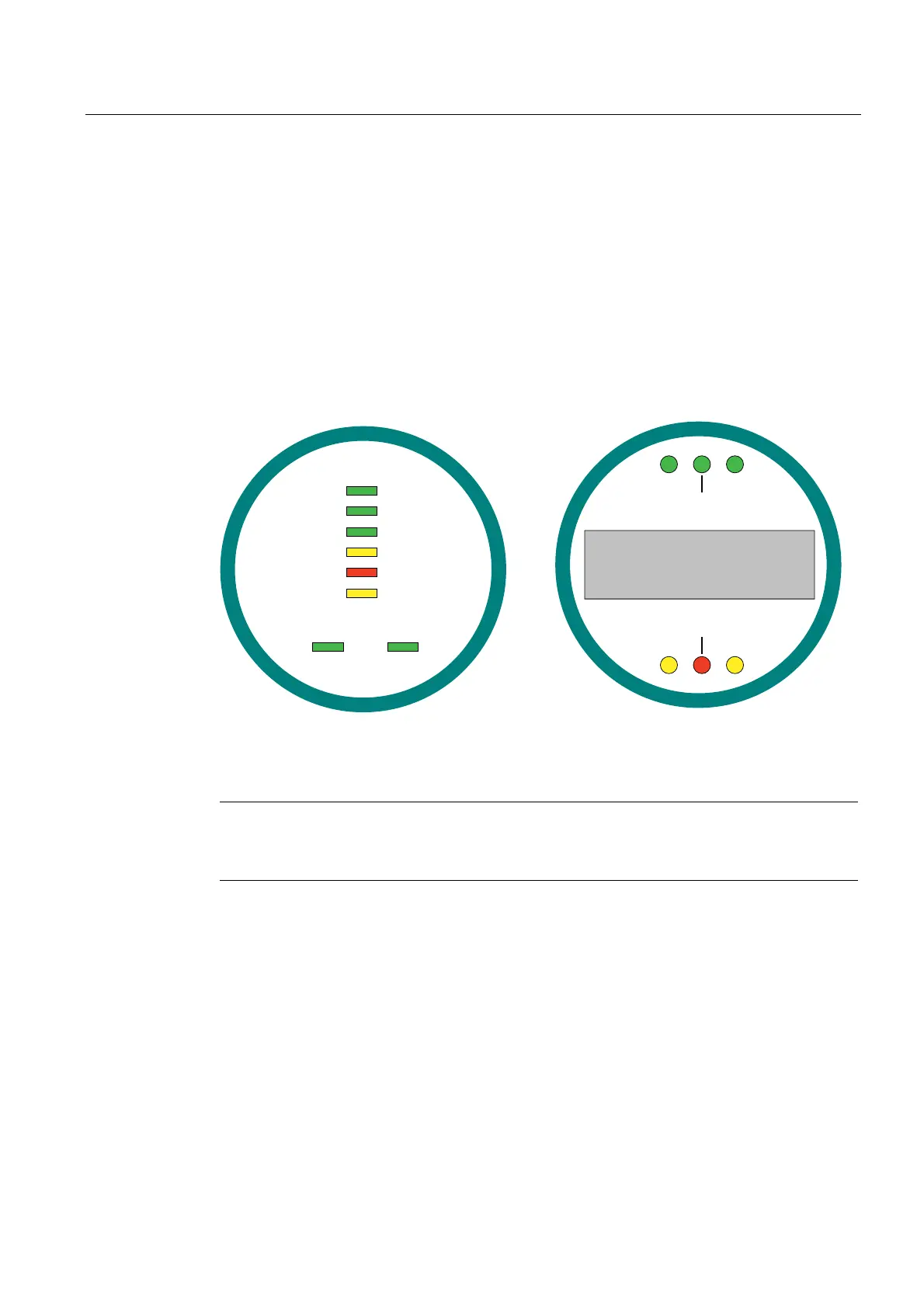

Display up to and including release version 4 Display from release version 5 onwards
Note
Release version
You can find the release version of your gas chromatograph on the rating plate under "AS".
