Mechanical systems 10 - 21
Siemens AG SPR8-220.061.03 Page 21 of 28 MOBILETT Plus HP
Medical Solutions Rev. 03 09.03 CS PS 24
Adjustment of the hand/parking brake 10
• Disconnect the unit from the wall outlet.
• Block up the unit on both sides with 5 x 5 cm pieces of wood. The wheels must be able to
rotate independently.
• Remove the rear wheel by removing the screw.
• Check the brake linings. If the brake linings are thinner than 1 mm, they must be replaced
(Fig. 22).
• Remove the old lining by loosening the screw (pos. 1 / Fig. 22).
• When installing the new lining, make sure that the lining is facing the right way.
• If the braking linings meet the requirements and the braking force is still low, check the
tension of the brake wire.
• Remount the rear wheels.

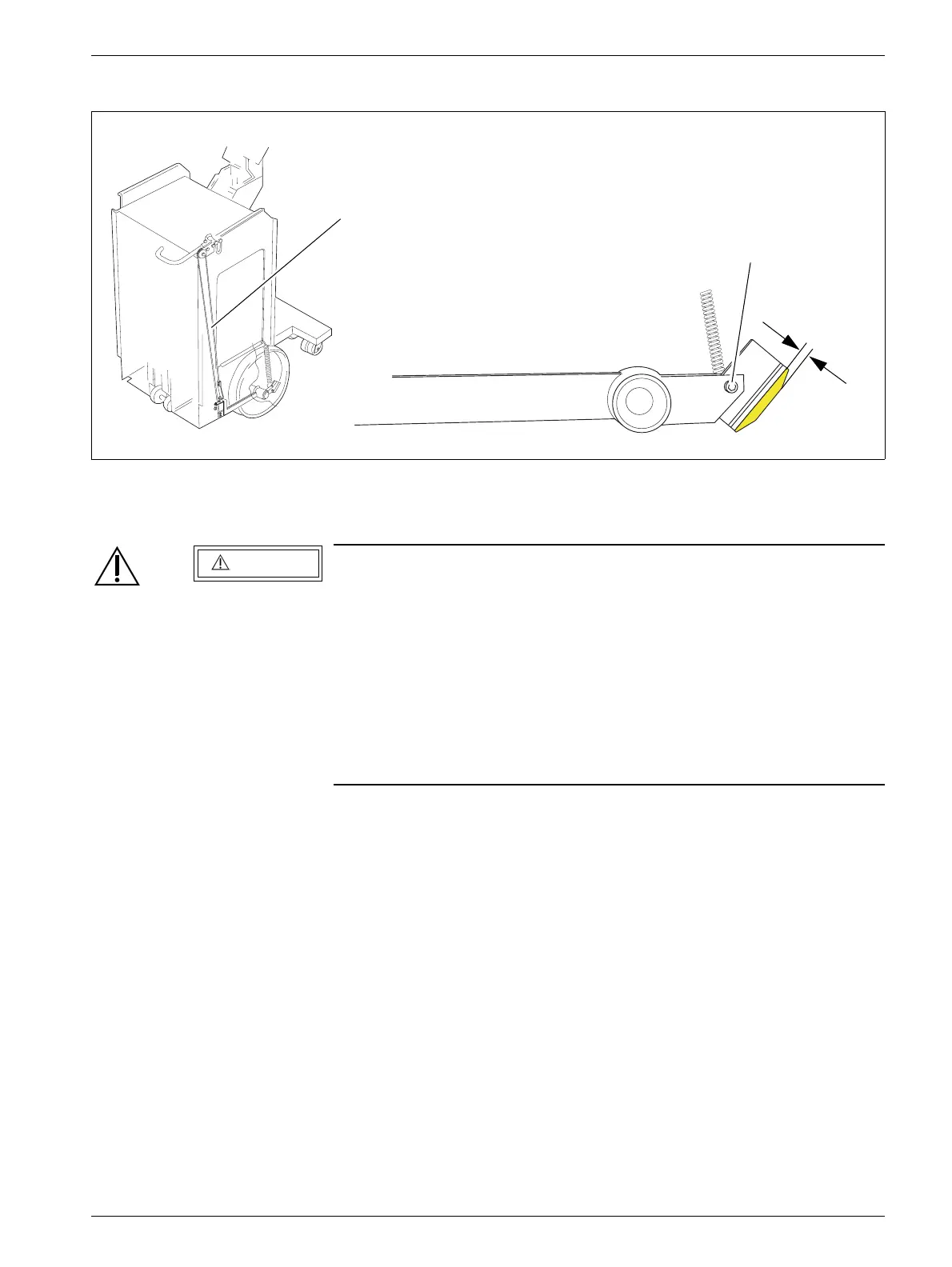

Fig. 22
High Voltage!
Life-threatening hazard of electric shock. Never work with the
system open if the batteries are still connected and the capacitor
is charged. If the batteries are connected, the complete system is
powered on!
The capacitors in M10 and M11 may still be charged even if the
system is switched OFF and the mains cable is
disconnected. The capacitors in M10 and M11 must be consid-
ered charged until the protective measures listed in this section
have been performed.
Equipment required: Spring scale
MOB00657
> 1 mm
1
MOB00660
Braking
wire
DANGER
