Siemens MOBILETT Plus HP - Replacement of Fuse (4 A)

Motor drive units 11 - 7
Siemens AG SPR8-220.061.03 Page 7 of 8 MOBILETT Plus HP
Medical Solutions Rev. 03 09.03 CS PS 24
• Remove the two back nuts (2/Fig. 10).
• Pull out the motor power unit.
• Replace the motor power unit.
Replacement of fuse (4 A) 11
• Pull out the motor power unit.
• Replace the fuse (3/Fig. 11).

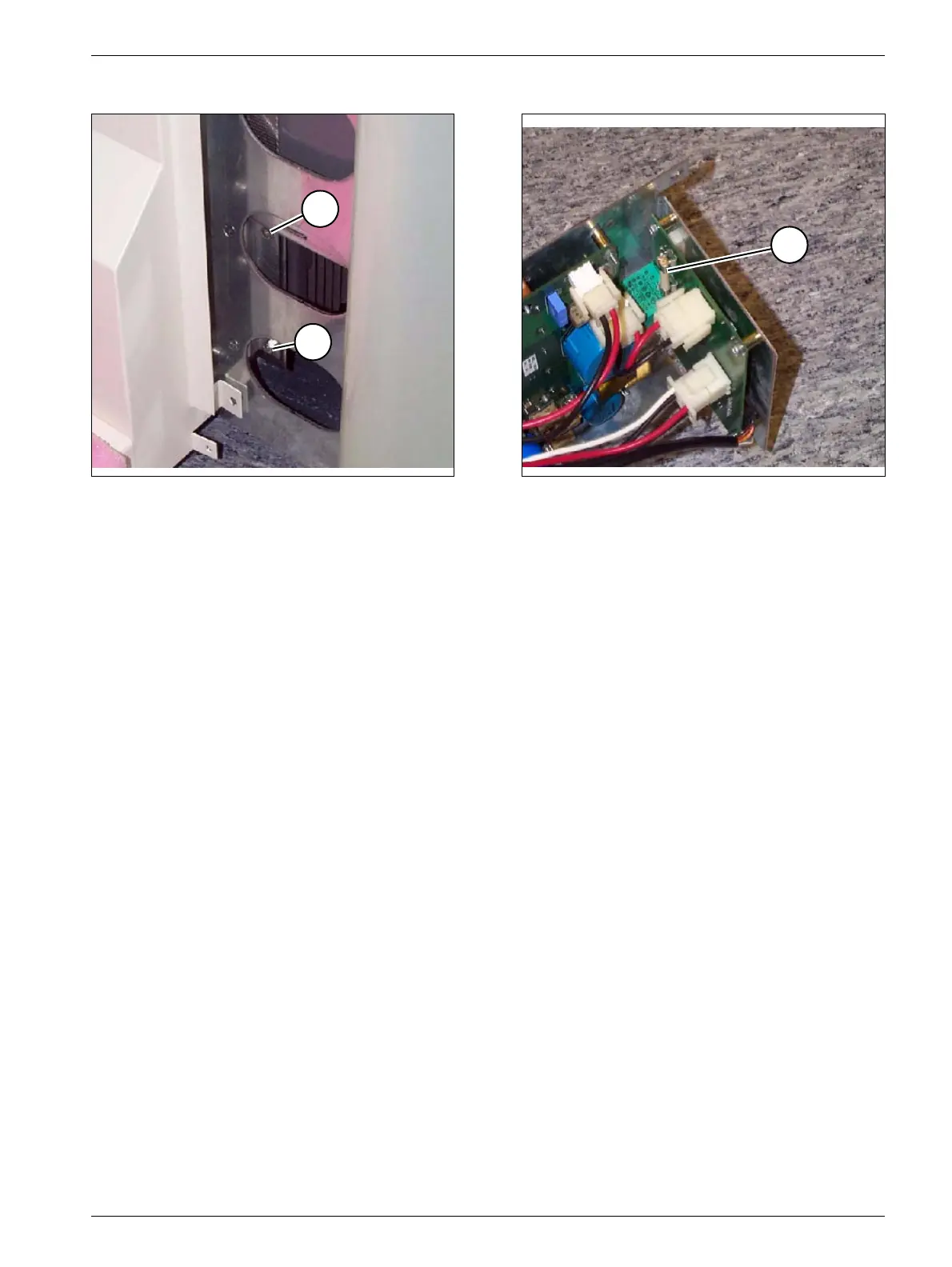

Fig. 10 Fig. 11
3
2
2
