Replacement and repairs on the collimator 9
Replacing the collimator lamp 9
• Remove the cover (1) by removing the screws (4) marked "A" (Fig. 1). Turn the collimator
around so that the lamp housing is in front of the cover opening.
• Remove the protective plate (2) covering the collimator lamp by loosening, not removing,
the screws marked "B" by one turn. Do not adjust screws "C", "D", or "E" (Fig. 2).
• Remove the defective lamp and replace it with a new lamp (Fig. 3). Do not touch the
bulb with bare fingers. (See "list of spare parts".)
• Reinstall the protective plate. Tighten the screws marked "B".

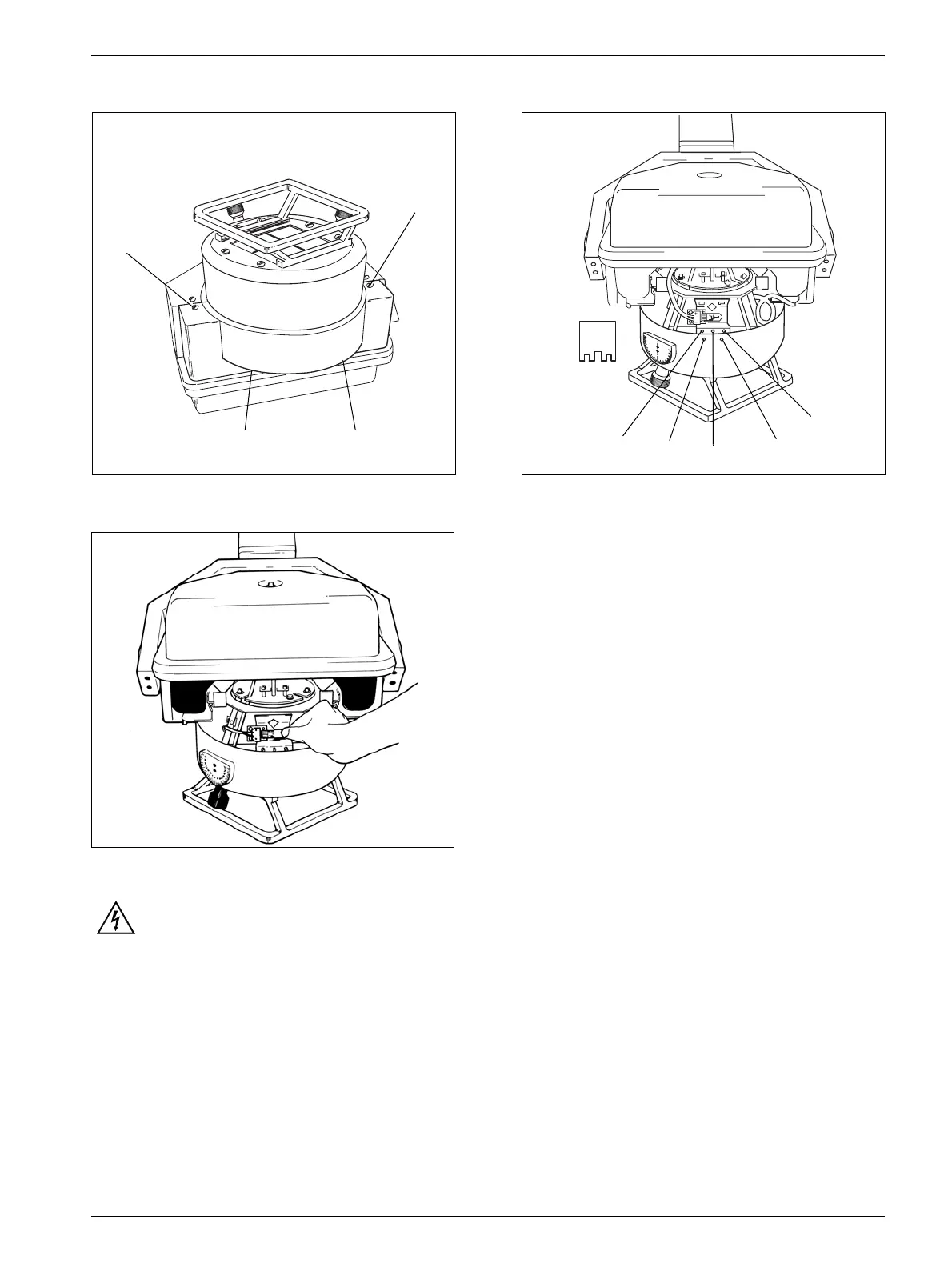

Fig. 1 Fig. 2
Fig. 3
Equipment required: Lux meter
