Motor drive units 11
Adjustment of the speed 11

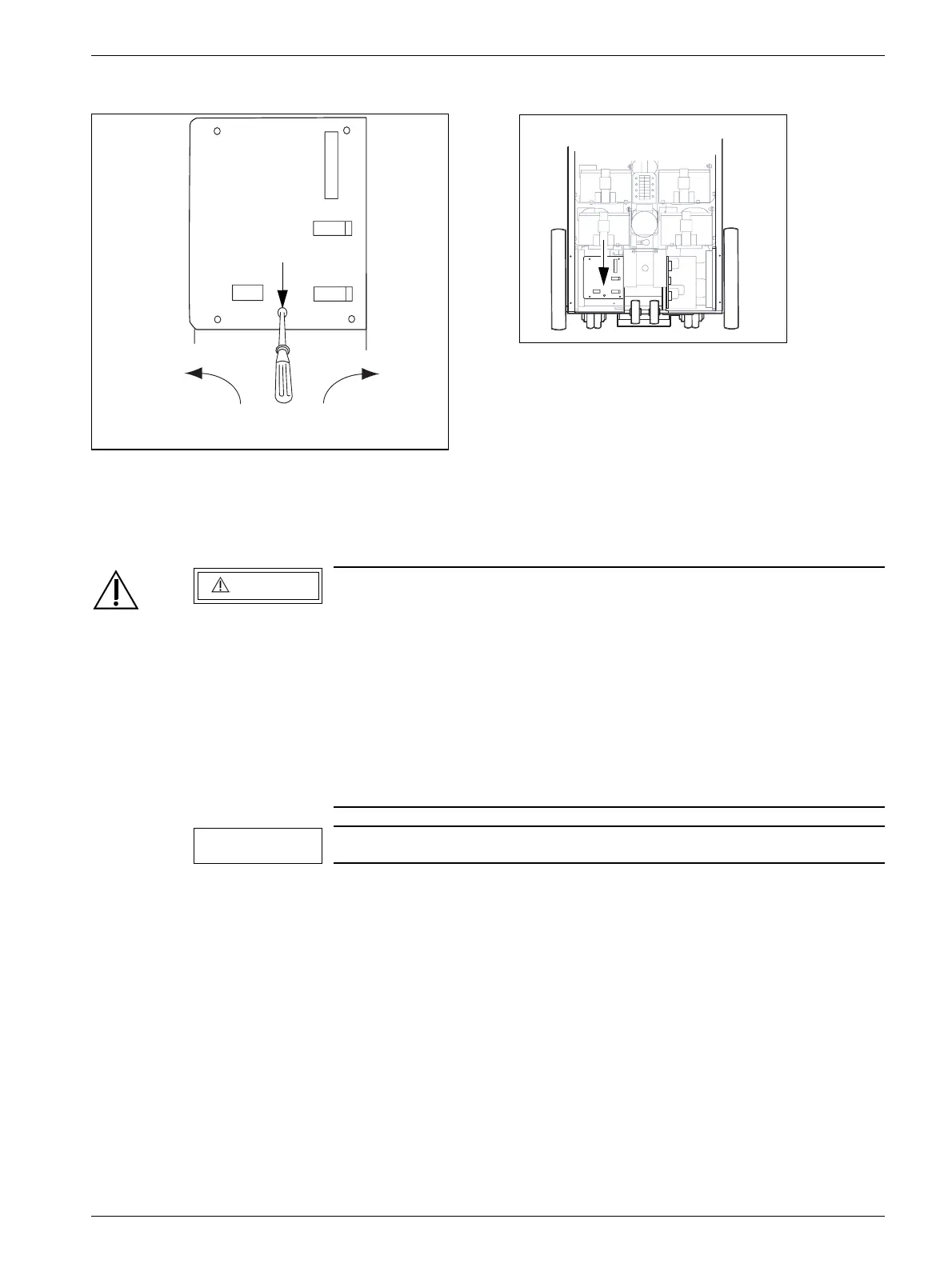

• Adjust the speed with a screwdriver as shown in (Fig. 1).
• Clockwise rotation decreases the speed.
• Counterclockwise rotation increases the speed.
Fig. 1
High Voltage!
Life-threatening electric shock hazard exists. Never work with the
system open if the batteries are still connected and the capacitor
is charged. If the batteries are connected, the complete system is
powered on!
The capacitors in M10 and M11 may still be charged even if the
system is switched OFF and the mains cable is
disconnected. The capacitors in M10 and M11 must be consid-
ered charged until the protective measures listed in this section
have been performed.
There is only one backward speed.
MOB00478
CCW =
CW =
faster
slower
MOB00477
DANGER
NOTE

Siemens MOBILETT Plus HP Specifications

General

Type	Mobile X-ray System
Weight	Approx. 290 kg
Power Supply	100-240 VAC, 50/60 Hz
Generator	High-frequency generator
Image Processing	Digital image processing
Focal Spot Size	0.6 / 1.2 mm
X-ray Tube Focal Spot	0.6/1.2 mm
Collimator	Manual Collimator
