HT and single tank error diagnosis 6 - 5
Siemens AG SPR8-220.061.03 Page 5 of 12 MOBILETT Plus HP
Medical Solutions Rev. 03 09.03 CS PS 24
Exposure values: 40 kV 5 mAs, HT 8 kV/div (200 mV/div),
I
inverter-single tank
100 A/div (only the end of the exposure is shown)

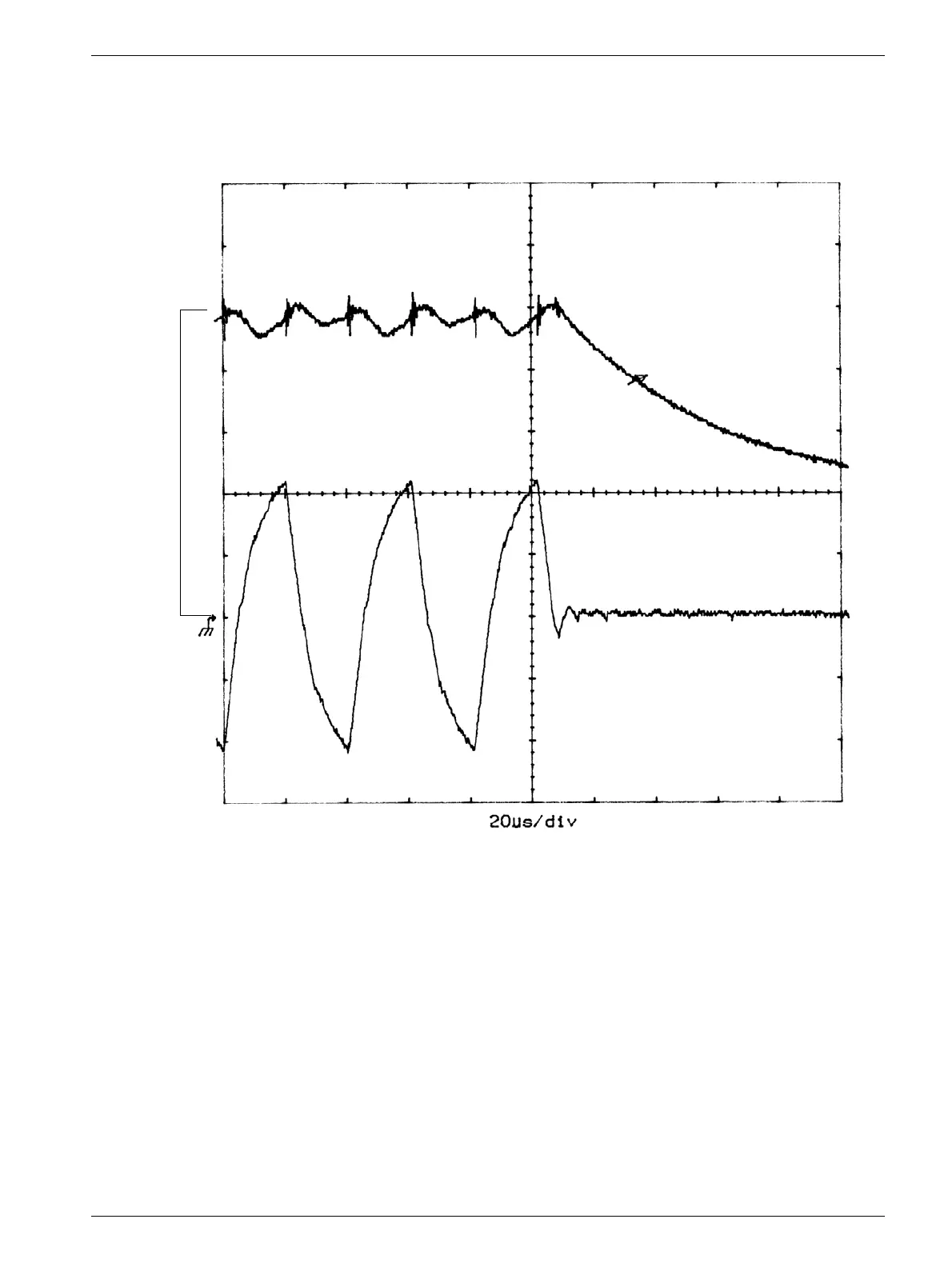

Fig. 2 HT and inverter current, inverter and single tank normal
Inverter
current
HT on
D1
