Siemens MOBILETT Plus HP Service Manual

MOBILETT Plus HP SPR8-220.061.03 Page 6 of 12 Siemens AG
Rev. 03 09.03 CS PS 24 Medical Solutions
6 - 6 HT and single tank error diagnosis
Exposure values: 90 kV 5 mAs, HT 20 kV/div (500 mV/div)
I
inverter-single tank
50 A/div (only the end of the exposure is shown

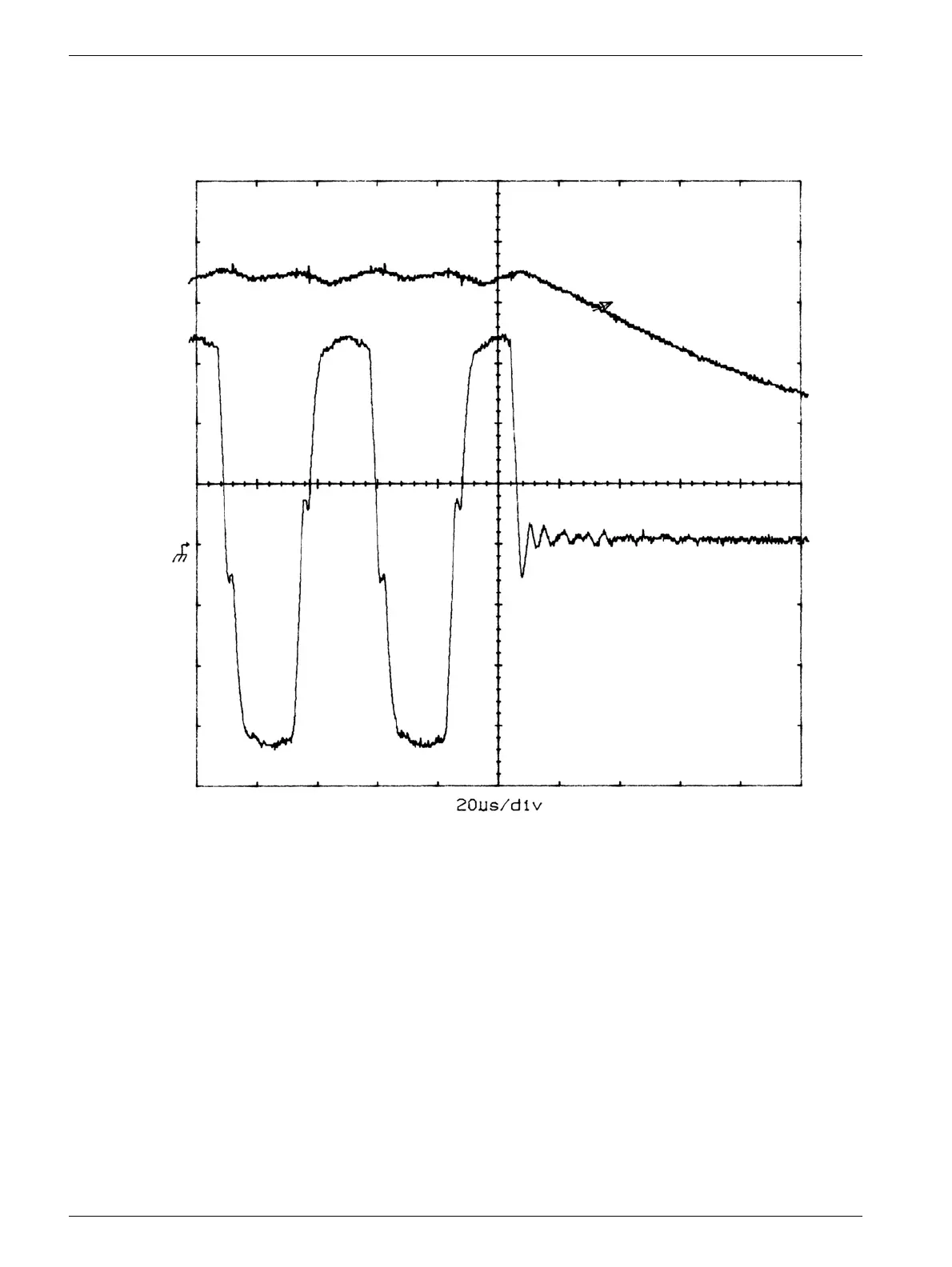

Fig. 3 HT and inverter current, inverter and single tank normal
HT on
D1
Inverter
current
