Siemens MOBILETT Plus HP Service Manual

Replacement and repairs on the collimator 9 - 5
Siemens AG SPR8-220.061.03 Page 5 of 10 MOBILETT Plus HP
Medical Solutions Rev. 03 09.03 CS PS 24

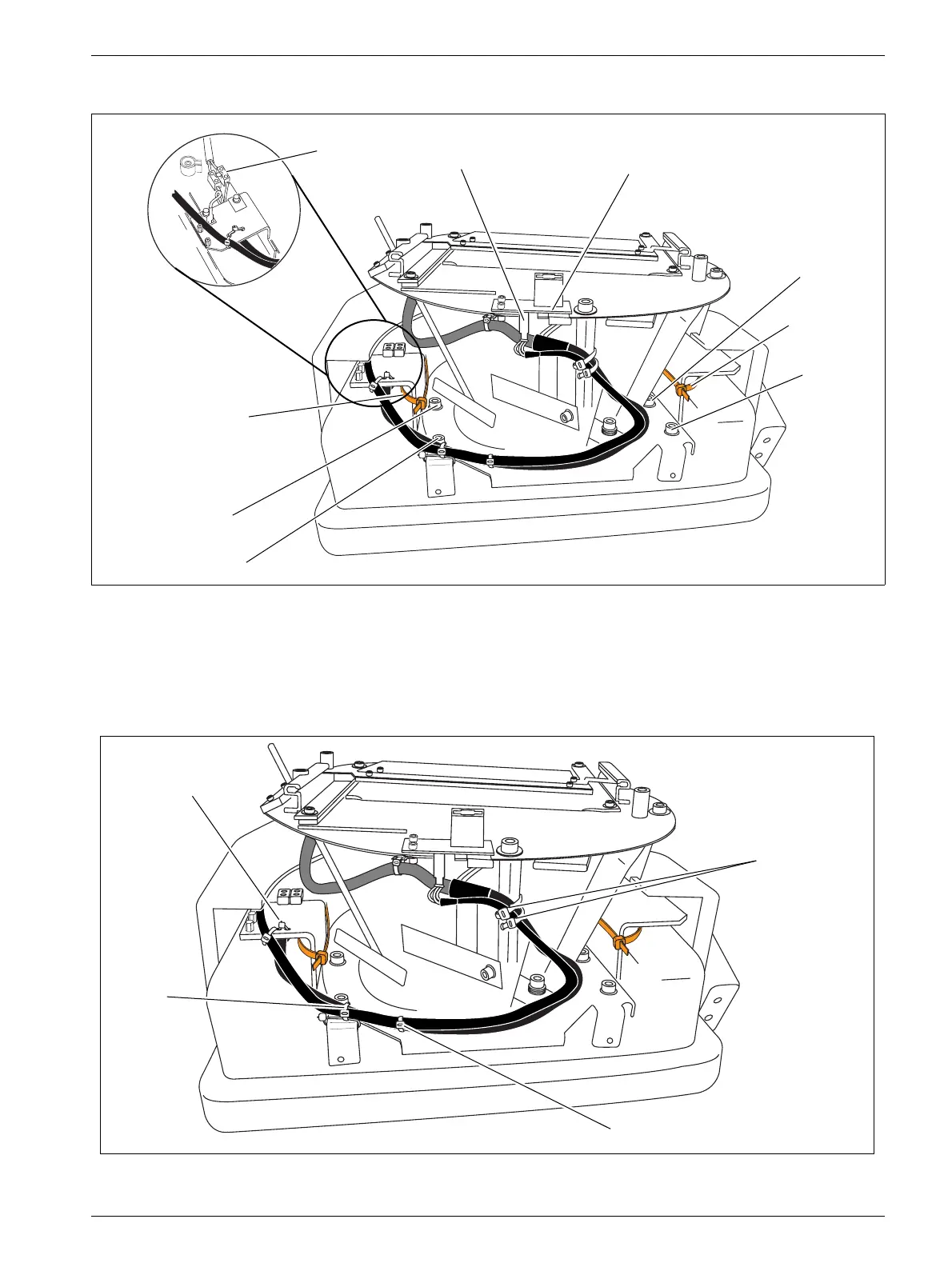

• Disconnect the cable to the connection terminal board "D" (Fig. 8).
• Disconnect K71 from board D70 (Fig. 8).
• Remove the cable ties on the left and the right side (Fig. 8).
• Remove the five cable ties according to "F" (Fig. 9).
Fig. 9
Fig. 8
MOB00648
D
E
E
E
E
cable tie
right side
cable tie left side
D70
K71
MOB00650
F
F
F
F
