Siemens SCALANCE XC-200 Set Up And Configuration

3 Configuration and commissioning of the Service Bridge
Service Bridge – Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
12
 Siemens AG 2019 All rights reserved
3 Configuration and commissioning of the
Service Bridge
The following steps are necessary in order to configure a SCALANCE XC-200
switch to a Service Bridge:

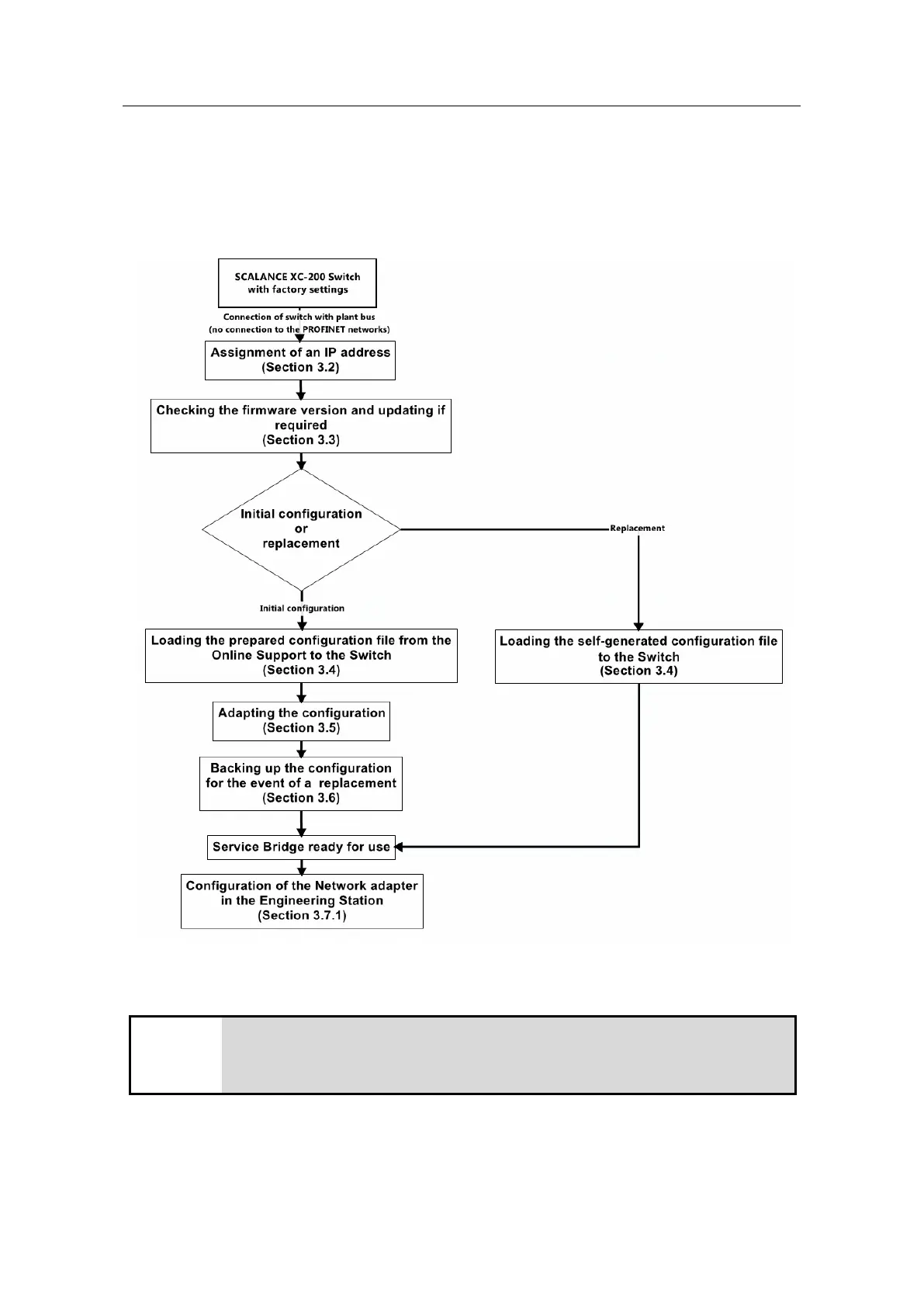

Figure 3-1
These steps can be carried out either in a separate network or directly on the plant bus using
the switch. In both cases, the switch is accessed via port 1.
CAUTION
Connect the PROFINET networks to the Service Bridge only after the
configuration steps are completed. Otherwise the network separation will
not be maintained.
