6.2 Networks with a Y switch (XF204-2BA DNA)
When the Service Bridge is used in a R1 network with a Y switch, the following
devices are available depending on the access point (see
Figure 6-2):
(1) Access in the R1 network subnet 1
Devices in this subnet and behind the Y switch are accessible.
(2) Access in the R1 network subnet 2
Devices in this subnet and behind the Y switch are accessible.
(3) Access behind the Y switch
Devices behind the Y switch and in both subnets of the R1 network are
accessible.

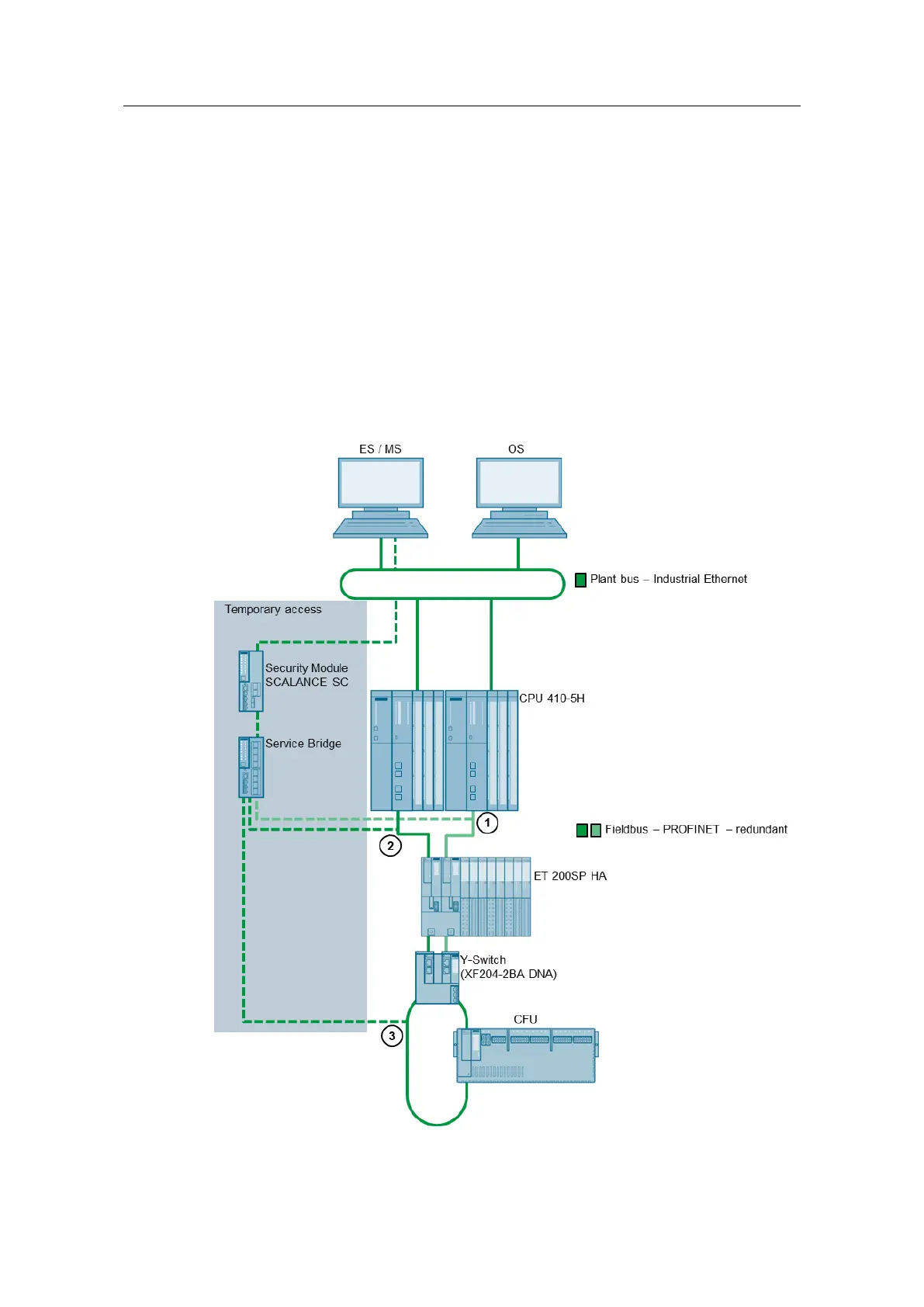

Figure 6-2
