Service Bridge – Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
Siemens AG 2019 All rights reserved
4.2.4 PROFINET
The PROFINET properties of the Service Bridge are configured in the "System >
PROFINET" menu. Since the Service Bridge is only intended for access from the
plant bus to the PROFINET networks, it is configured as an IE switch.
Configuration/use as an IO device is not intended.

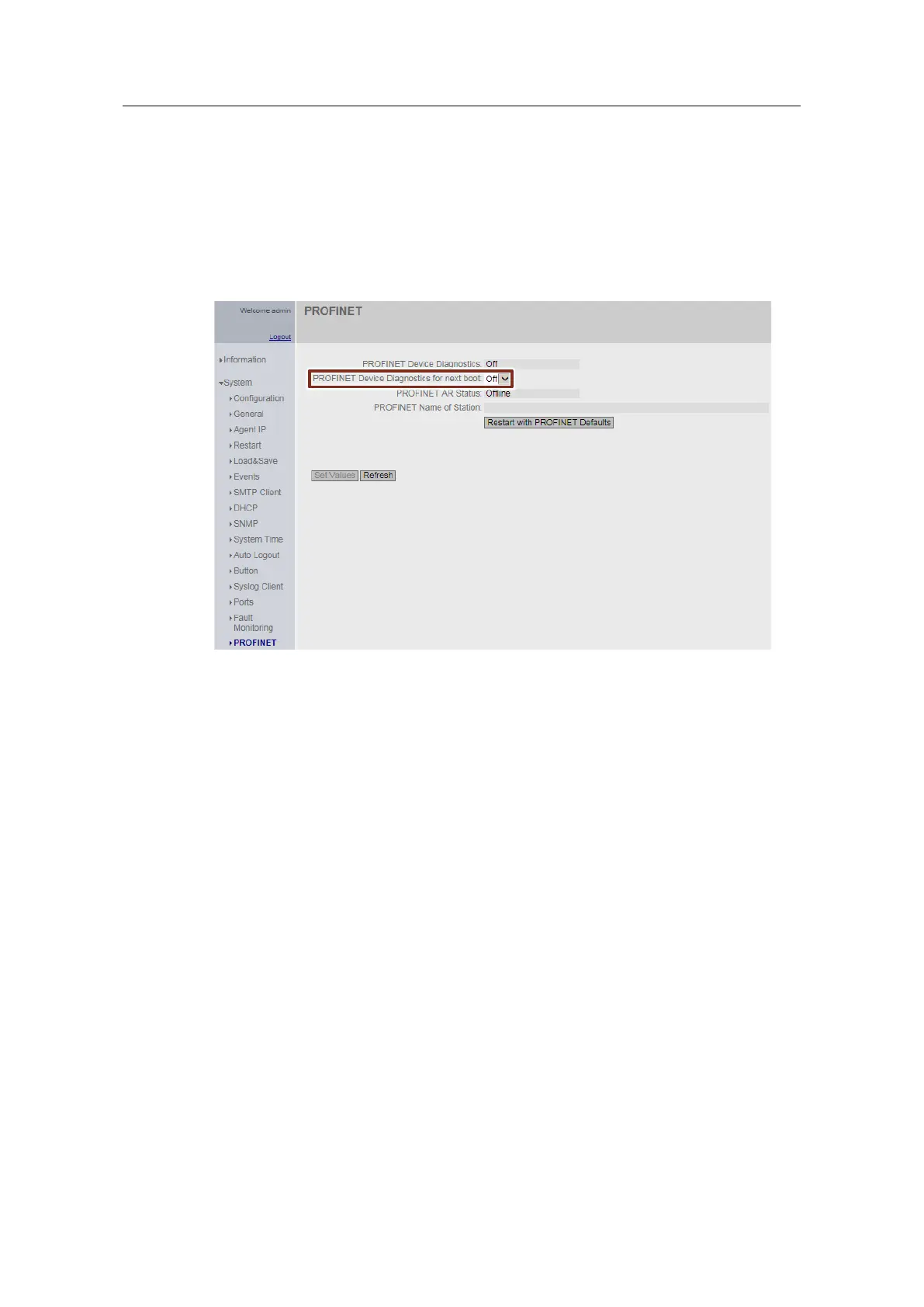

System > PROFINET
Figure 4-10:
The function "PROFINET Device Diagnostics for next boot" is disabled for the
Service Bridge; this means that PROFINET device diagnostics and consequently
the PROFINET interface are inactive.
