4 Configuration file
Service Bridge Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
38
Siemens AG 2019 All rights reserved

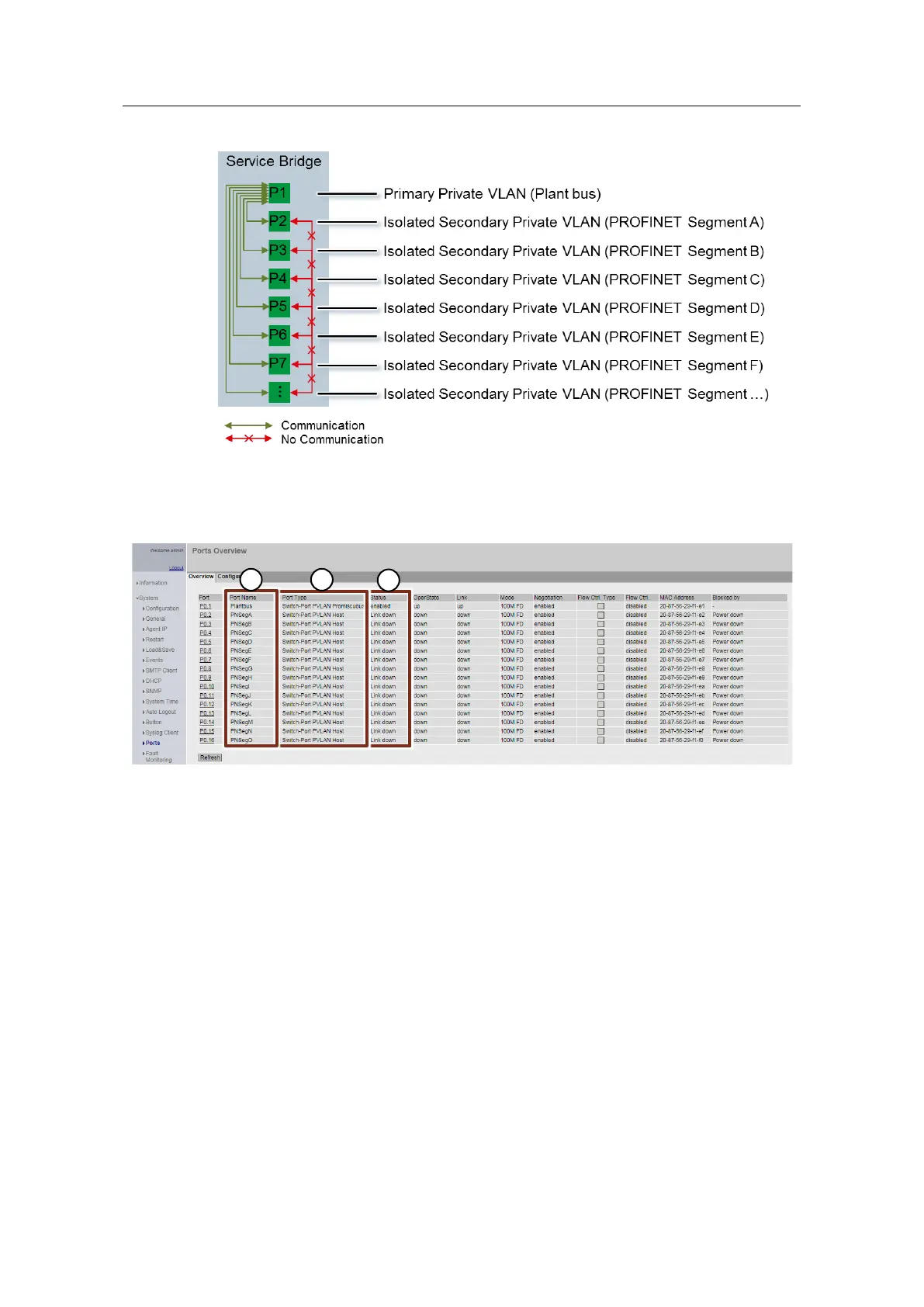

Figure 4-1
4.1.2 Ports
System > Ports
Figure 4-2
1 2
3
The type, status, etc. of the ports are set in the "System > Ports" menu. The
following settings are provided for the Service Bridge:
(1) Port Name: The port name can be adjusted if required.
(2) Port type:
Port type "Switch-Port PVLAN Promiscuous" is configured for Port 1 (plant
bus). Promiscuous ports belong to a Primary PVLAN; devices at a
promiscuous port can communicate with all the other devices of the
PVLAN.
Port type "Switch-Port PVLAN Host" is set for the remaining ports (PNSeg).
Host ports belong to a Secondary PVLAN. Devices on a host port can only
communicate with certain devices of the PVLAN.
(3) Status:
Port 1 (plant bus) is enabled, i.e. activated.
The remaining ports (PNSeg) are disabled as "Link down" and can be
enabled from this menu if required.
