4.2.5 Rate control
The rate limits of the individual ports are configured in the "Layer 2 > Rate Control"
menu. The purpose is to limit the spread of broadcasting storms in the event of a
fault. The following settings are provided for the Service Bridge:
Layer 2 > Rate Control

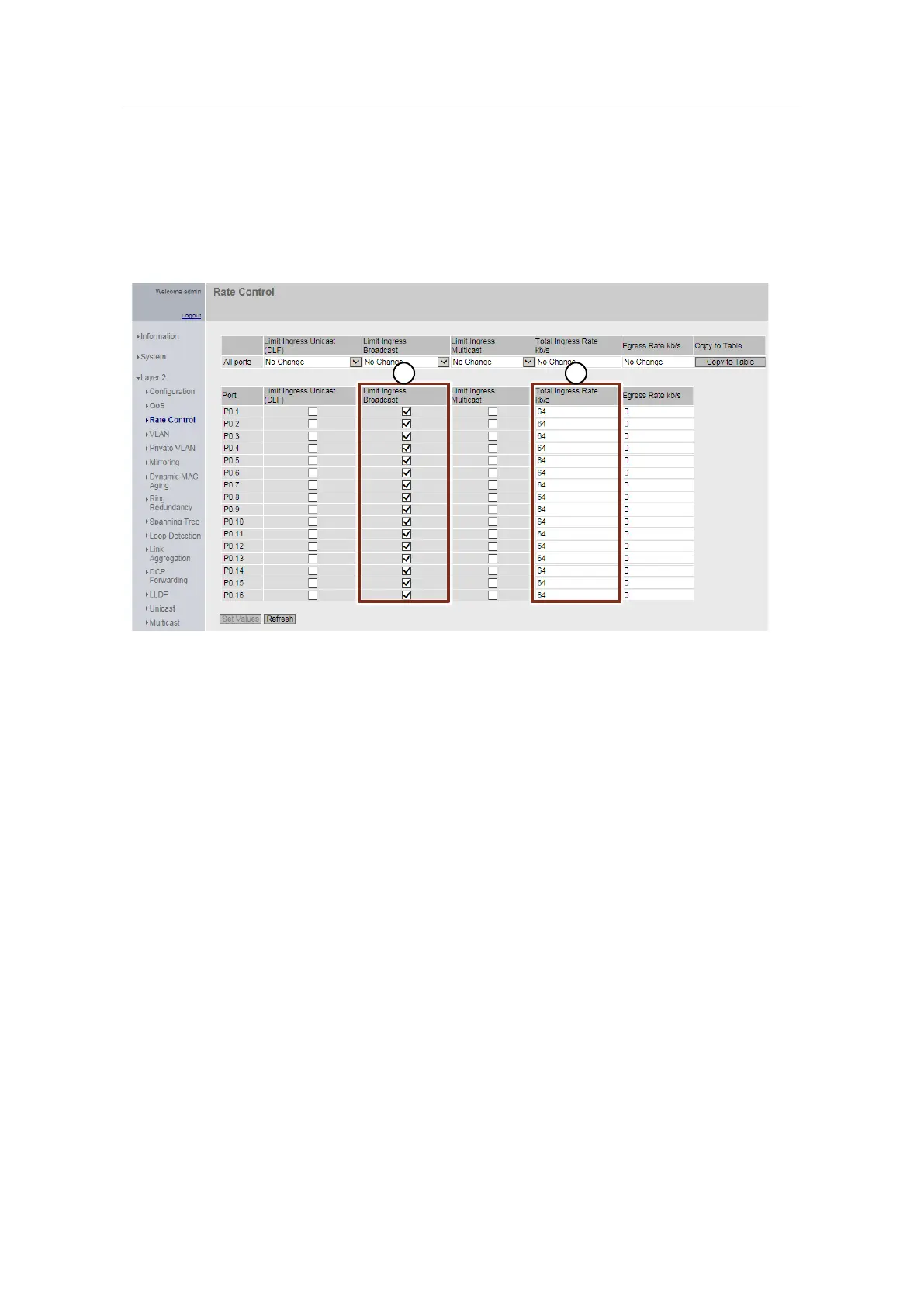

Figure 4-11
1 2
(1) The function "Limit Ingress Broadcast" is activated for all ports. This means
that the data rate for incoming Broadcast message frames is restricted to the
"Total Ingress Rate" (2).
