Service Bridge – Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
Siemens AG 2019 All rights reserved
System > Fault Monitoring: Link Change

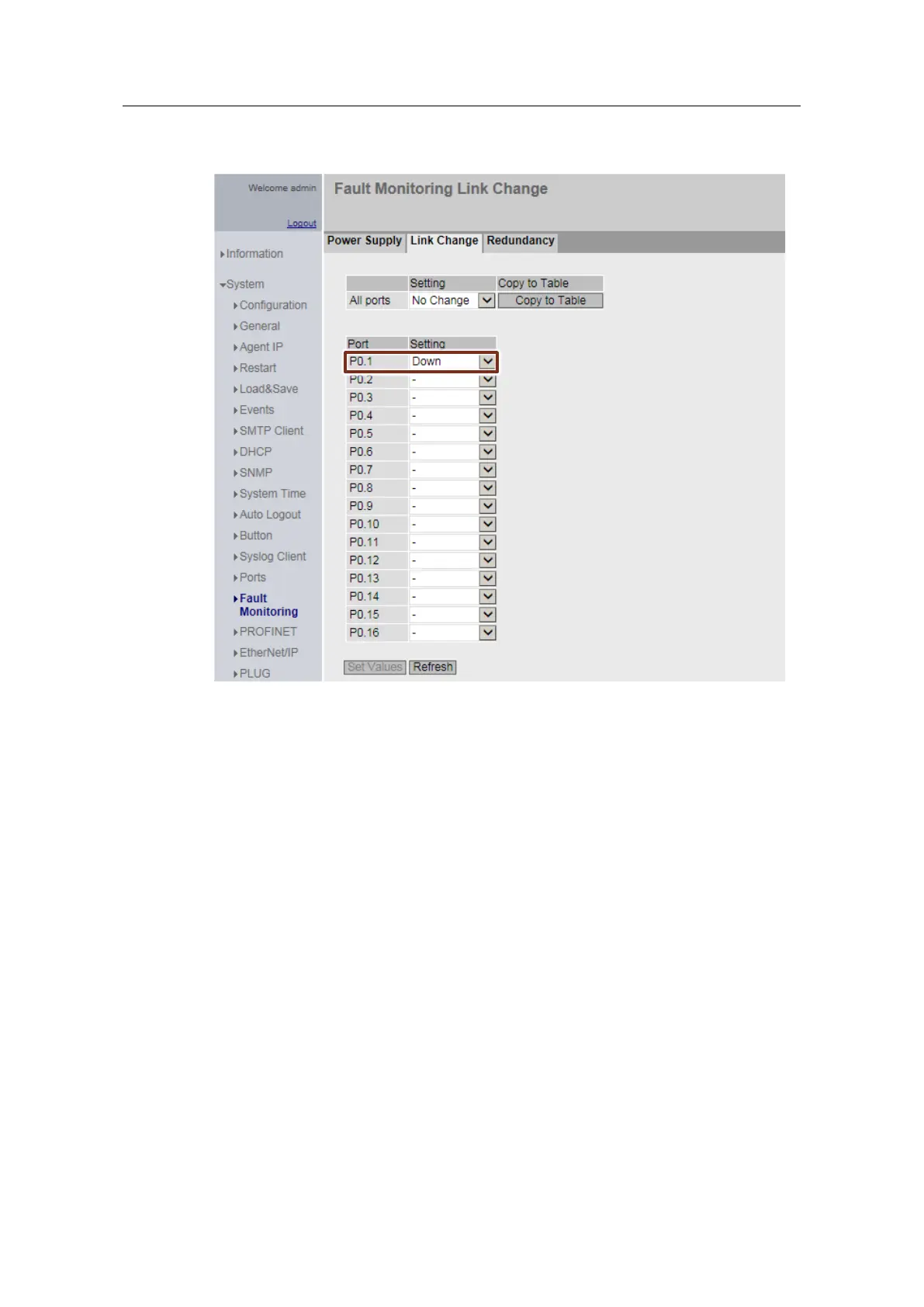

Figure 4-9
Link status change monitoring is configured in the "Link Change" tab.
Monitoring of Port 1 is configured as "Down" for the Service Bridge, which means
that an error will be triggered if a link (connection) is no longer present at this port.
A fault leads to the triggering of the signaling contact and causes the fault LED on
the device to light up.
