4.3 Class B Wiring Applications

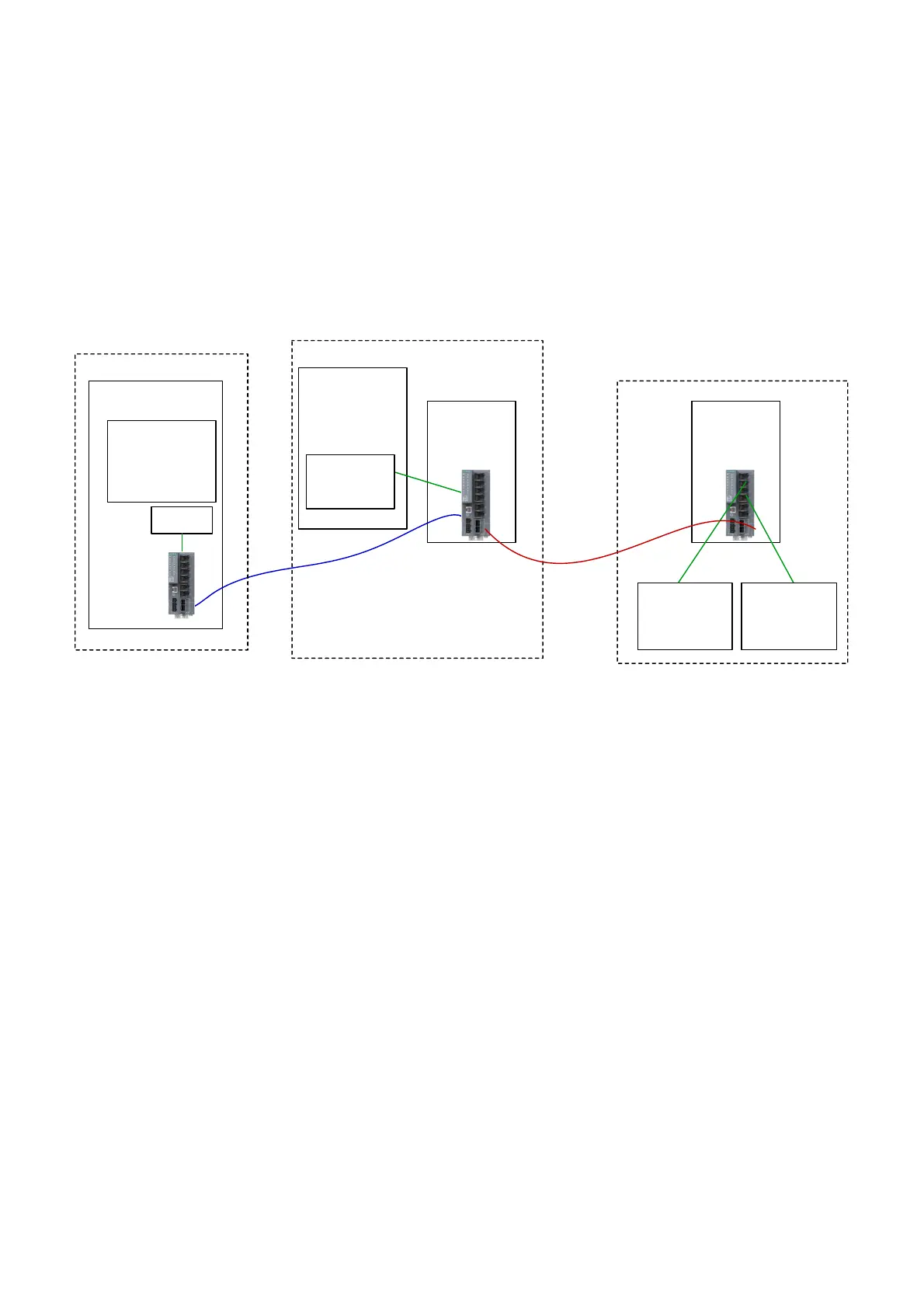

Figure 4-3 illustrates a conceptual Class B fiber network with Scalance XC206-2SFP-MM/-SM switches in
the following representative configurations:
 In a GCNET Building Enclosure
 In a Network Enclosure with a colocated Desigo Fire Safety Compact/Cerberus PRO Compact.
 In a Network Enclosure Enclosure with two colocated Desigo CC Distributed Servers
Multimode and Single Mode fiber are mixed for representation.
Network
Enclosure
Desigo CC /
Cerberus DMS
Distributed
Server
VNT Building
Enclosure
Desigo Fire Safety
Compact /
Cerberus PRO
Compact
Enclosure
Network
Enclosure
VNT
Desigo Fire Safety
Modular / Cerberus
PRO Modular
PMI
Single Mode
Fiber
Multi mode
Fiber
Ethernet
Ethernet Ethernet
Room 3
Room 1
Room 2
Desigo CC /
Cerberus DMS
Distributed
Server
Desigo Fire Safety
Compact / Cerb erus
PRO C ompact PMI
Ethernet
Figure 4–3: Representative Class B Network Example
