4.5 Additional Applications
4.5.1 Monitoring-Only Applications – All Monitoring Only

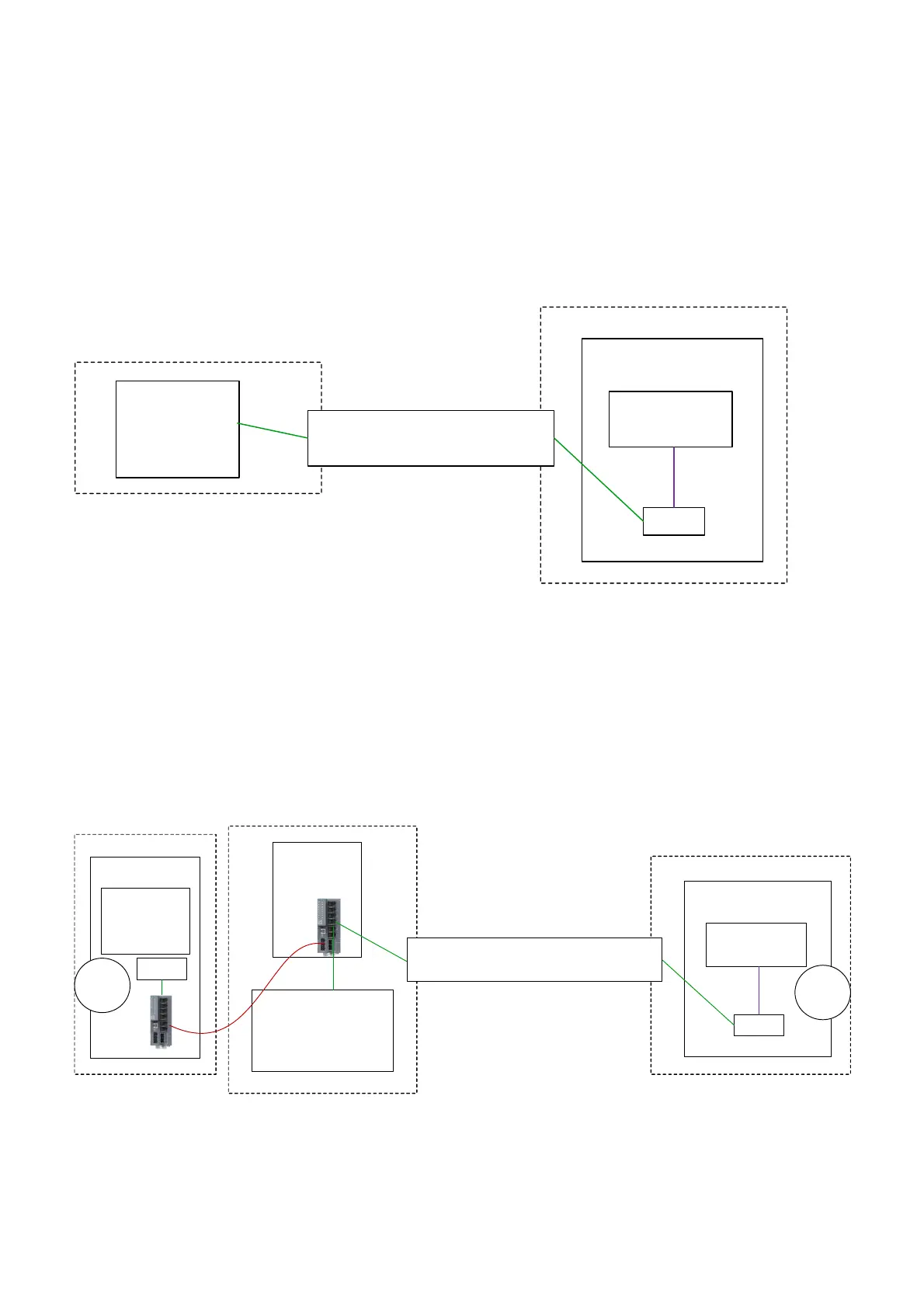

Figure 4-5 illustrates a Class B network with an interface to a Monitoring-Only application via the MOSA
and no control on any panels at the Desigo CC/Cerberus DMS. Note that the UL864 switch is not
required.
Desigo CC /
Cerberus DMS
Server / Distributed
Server / FEP
Desigo Fire Safety Modular /
Cerberus PRO Modular
Enclosure
MOSA
Desigo Fire Safety Modular /
Cerberus PRO Modular
PMI
Non-UL864 IP Building Infrastructure
Ethernet
RS485
Figure 4–5: Representative Class B Monitoring-Only Example – All Monitoring Only
4.5.1 Monitoring-Only Applications – Control on Other Panels
Figure 4-6 illustrates a Class B network with an interface to a Monitoring-Only application via the MOSA,
but one in which the Desigo CC/Cerberus DMS has control of other panels.
Since the Desigo CC/Cerberus DMS has control of some panels, UL864 infrastructure is required for
those panels. However, connections may be made from the UL864 switch to non-UL864 building
infrastructure for the Monitoring Only application.
VNT Building
Enclosure
VNT
Desigo Fire Safety
Modular / Cerberus
PRO Modular
PMI
Ethernet
Room 1
Desigo Fire Safety Modular /
Cerberus PRO Modular
Enclosure
MOSA
Desigo Fire Safety Modular /
Cerberus PRO Modular
PMI
RS485
Desigo CC / Cerberus DMS
Server / Distributed Server /
FEP
Network
Enclosure
Room 2
Ethernet
Ethernet
Multimode
Fiber
Control from
Management
Statio n
Monitori ng
Only from
Management
Statio n
Ethernet
Scalance
XC206-2SFP
-MM/-SM
Scalance
XC206-2SFP
-MM/-SM
Non-UL864 IP Building Infrastructure
Figure 4–6: Representative Class B Monitoring-Only Example – Control on Other Panels
