Siemens Industry, Inc. 25 A6V12198161_en--_a
Smart Infrastructure
.

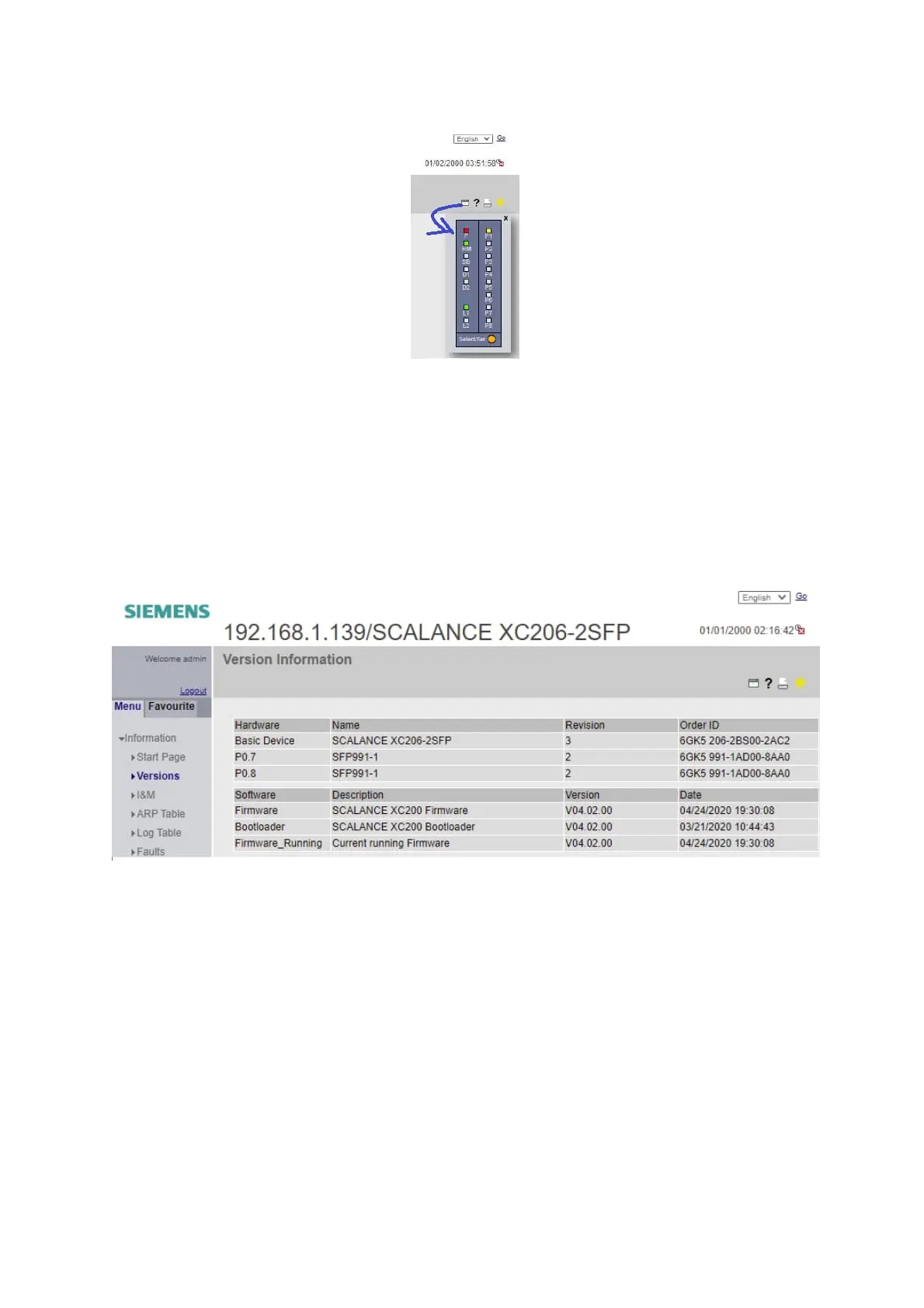

Figure 7–9: Current Scalance Switch LED States
You can open the image of Scalance switch LED in the current state.
7.3.2 Fiber Optic Switch Settings
The version information is shown on Menu > Information > Versions for basic device hardware
XC206-2SFP, and for fiber optic transceivers SFP991-1 for multi-mode and SFP991-1LD for single-
mode fiber on ports 7 and 8.
Figure 7–10: Version Information
The following version information is displayed:
P0.7 – P0.8 designates the port in which an SFP module is inserted.
Revision shows the hardware version of the device.
Order ID shows the article number of the device or described module.
Firmware shows the current firmware version. If a new firmware file was downloaded and the
device has not yet restarted, the firmware version of the downloaded firmware file is displayed
here. After the next restart, the downloaded firmware is activated and used.
Bootloader shows the version of the boot software stored on the device.
Firmware_Running shows the firmware version currently being used on the device.
