9.3 Fiber Optic Switch Setup

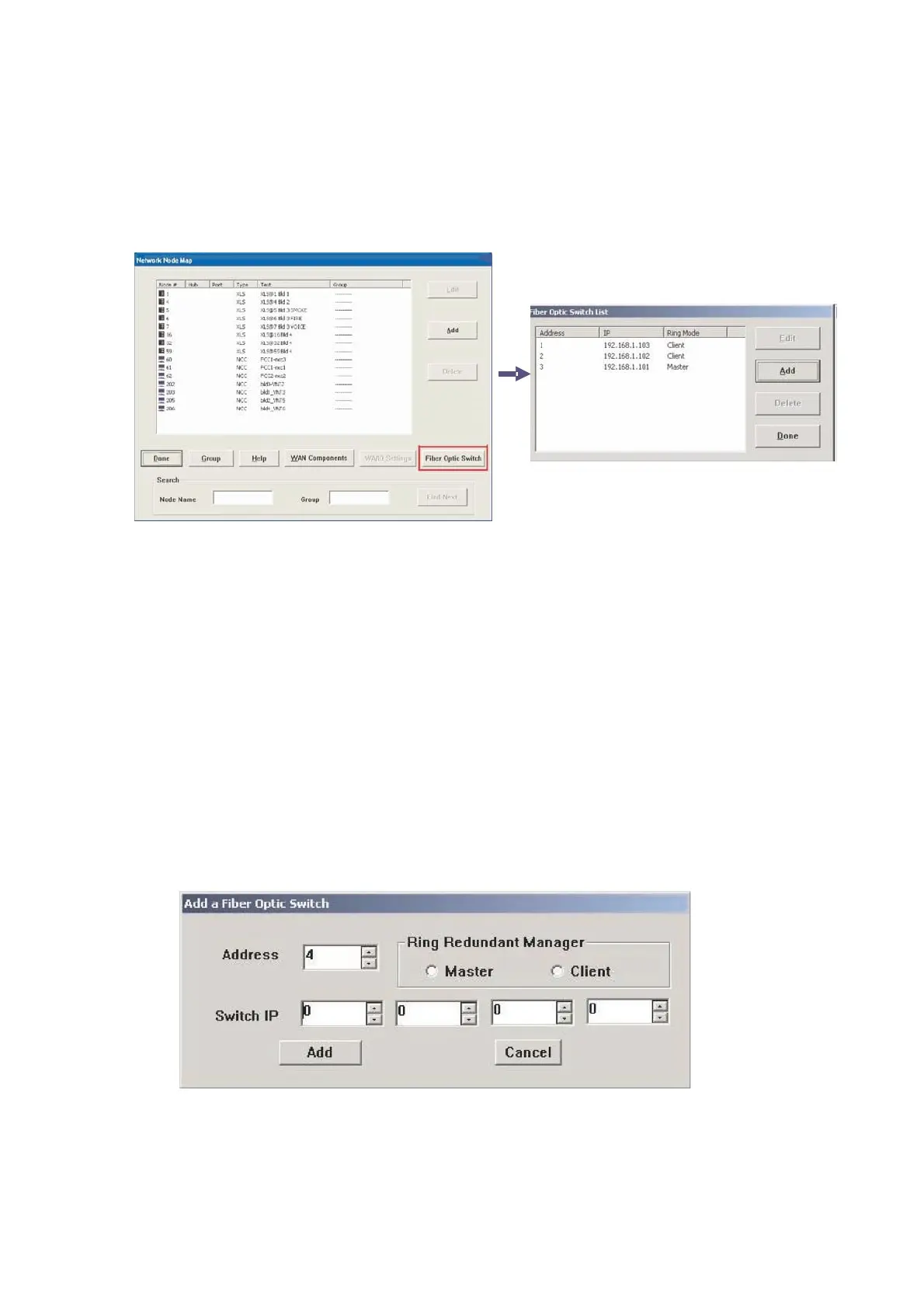

A new button is added in the NCC’s Network Node Map window for the Ethernet Multimode Fiber Switch
as shown in Figure 9-8. Click Fiber Optic Switch to open the Fiber Optic Switch List window to add,
delete, or update a Fiber Optic Switch.
Figure 9–8: NCC Fiber Optic Switch Node List
9.3.1 Add A Switch
To add a new Fiber Optic Switch, complete the following steps:
1. Click Add in the Fiber Optic Switch List dialog.
2. Assign an address ID to the switch in the range of 1-49. If an address is selected that is
already used, a warning message will pop-up to notify the user that the address is not a
valid address.
3. Add the IP address of the switch as the assigned IP address. Assign IP Address.
4. For the Ring Redundant Manager, select either Master or Client to agree with the
setting, Ring Redundancy Manager.
5. Click Add to complete the changes or click Cancel to leave the settings as they were.
Figure 9–9: Adding A Fiber Optic Switch
