Siemens Scalance XC206-2SFP-MM User Manual

Siemens Industry, Inc. 14 A6V12198161_en--_a
Smart Infrastructure
4.4 Class X Wiring Applications
Figure 4-4 illustrates a conceptual Class X fiber network with Scalance XC206-2SFP-MM/-SM switches in
the following representative configurations:
 In a Desigo Fire Safety Modular/Cerberus PRO Modular GCNET FCC Enclosure with a colocated
Desigo CC Client
 In a Desigo Fire Safety Modular/Cerberus PRO Modular GCNET Building Enclosure
 In a Network Enclosure with a colocated Passive NCC
 In a Network Enclosure with a colocated Desigo Fire Safety Compact/Cerberus PRO Compact and
a colocated Desigo CC Client
 In a Network Enclosure with a colocated Desigo Fire Safety Compact Voice/Cerberus PRO
Compact Voice
 In a Network Enclosure with a colocated Desigo CC Server, a Desigo CC FEP, and an NCC
Desigo CC /
Cerberus DMS
Client
Network
Enclosure
Network
Enclosure
VNT FCC
Enclosure
VNT Building
Enclosure
NCC
Passive NCC
Desigo Fire Safety
Modular / Cerberus
PRO Modular
Network
Enclosure
Network
Enclosure
VNT
VNT
Des igo Fire
Safety Modular /
Cerberus PRO
Modular PMI
Multi mode
Fiber
Multimode
Fiber
Multi mode
Fiber
Ethernet
Ethernet
Ethernet Ethernet
Ethernet
Ethernet
RS485
RS485
Room 6
Room 3
Room 2
Room 1
Desigo CC /
Cerberus DMS
Client
Desigo Fire
Safety
Compact /
Cerberus PRO
Compact
Enclosure
Multi mode
Fiber
Ethernet
Room 4
Desigo Fire
Safety
Compact /
Cerberus PRO
Compact PMI
Desigo Fire
Safety
Compact /
Cerberus PRO
Compact
Enclosure
Ethernet
Room 5
Desigo Fire
Safety
Compact /
Cerberus PRO
Compact Voice
Card Cage
Ethernet
Desigo CC /
Cerberus DMS
Server
Desigo CC /
Cerberus DMS
FEP

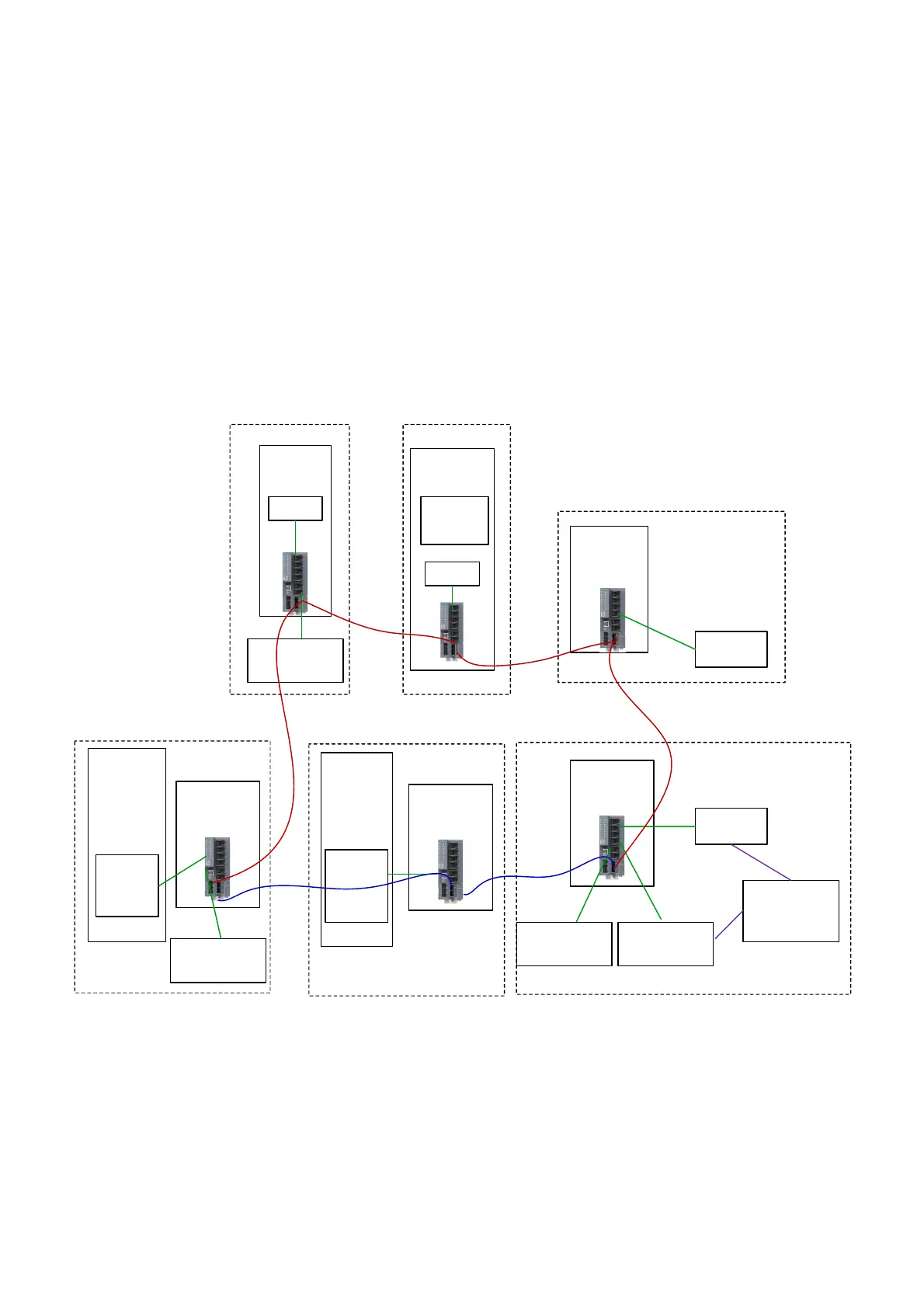

Figure 4–4: Representative Class X Network Example
