1. From the Control Panel, click Add or Remove Programs.
2. From Add or Remove Programs, click Add or Remove Windows Components.
3. From the Windows Component Wizard window, scroll down to Management Monitoring
Tools and click Details.

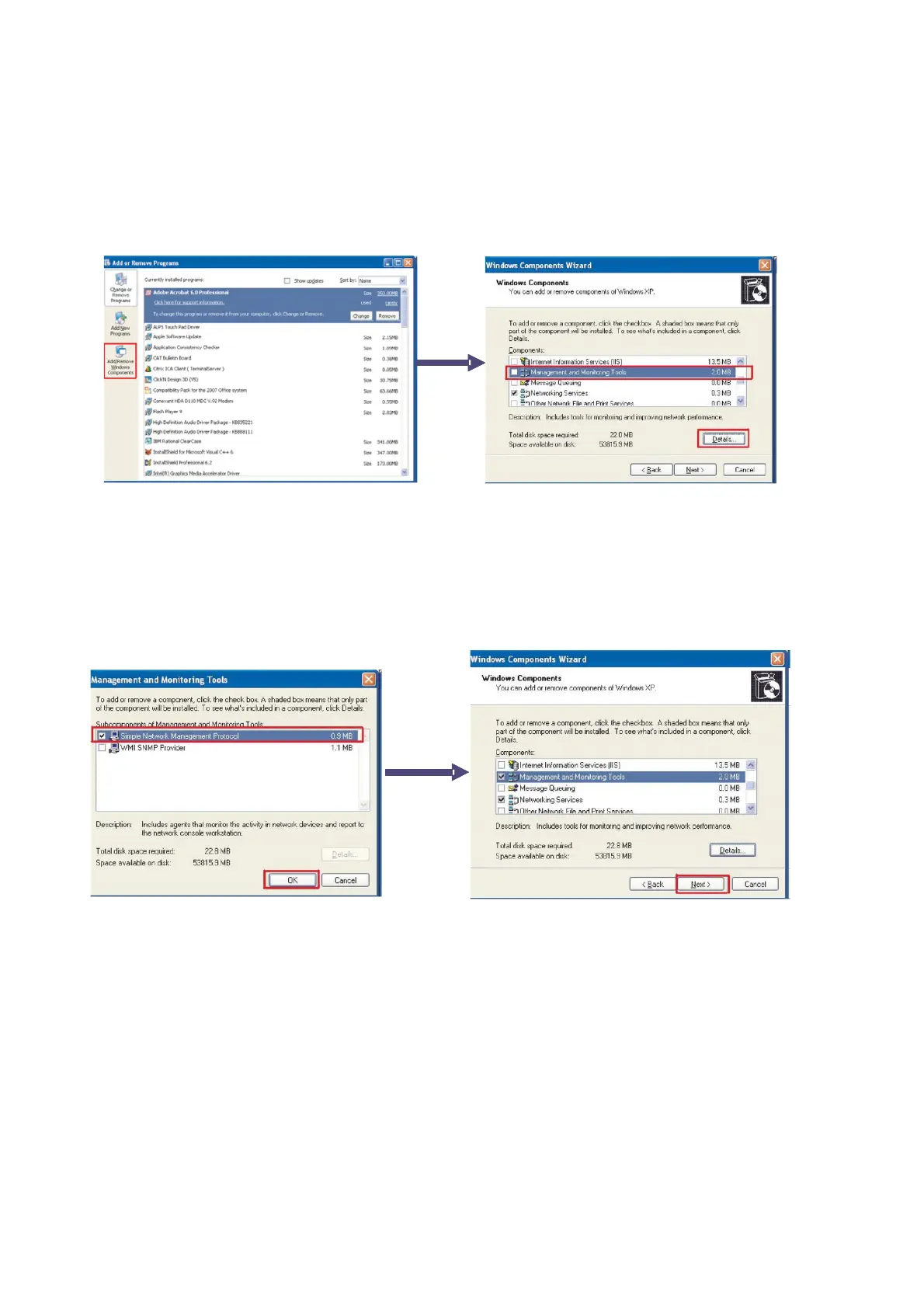

Figure 9–2: SNMP Protocol Setup - Add Or Remove Program
1. From the Management and Monitoring Tools window, select Simple Network
Management Protocol and click OK.
2. From the Windows Components Wizard window, click Next and follow the instructions
until installation is complete.
Figure 9–3: SNMP Protocol Setup - Management and Monitoring Tools
9.2 NCC Setup
First, launch the NCC. Once the NCC is launched, click More > Setup > System > Options to launch
NCC System Settings. At the Multiple NCC Configuration Options, make sure that the following are
checked:
• Control Vectoring
• TCP/IP used for NCC link
• Inhibit automatic data base exchange Click Done when finished.
