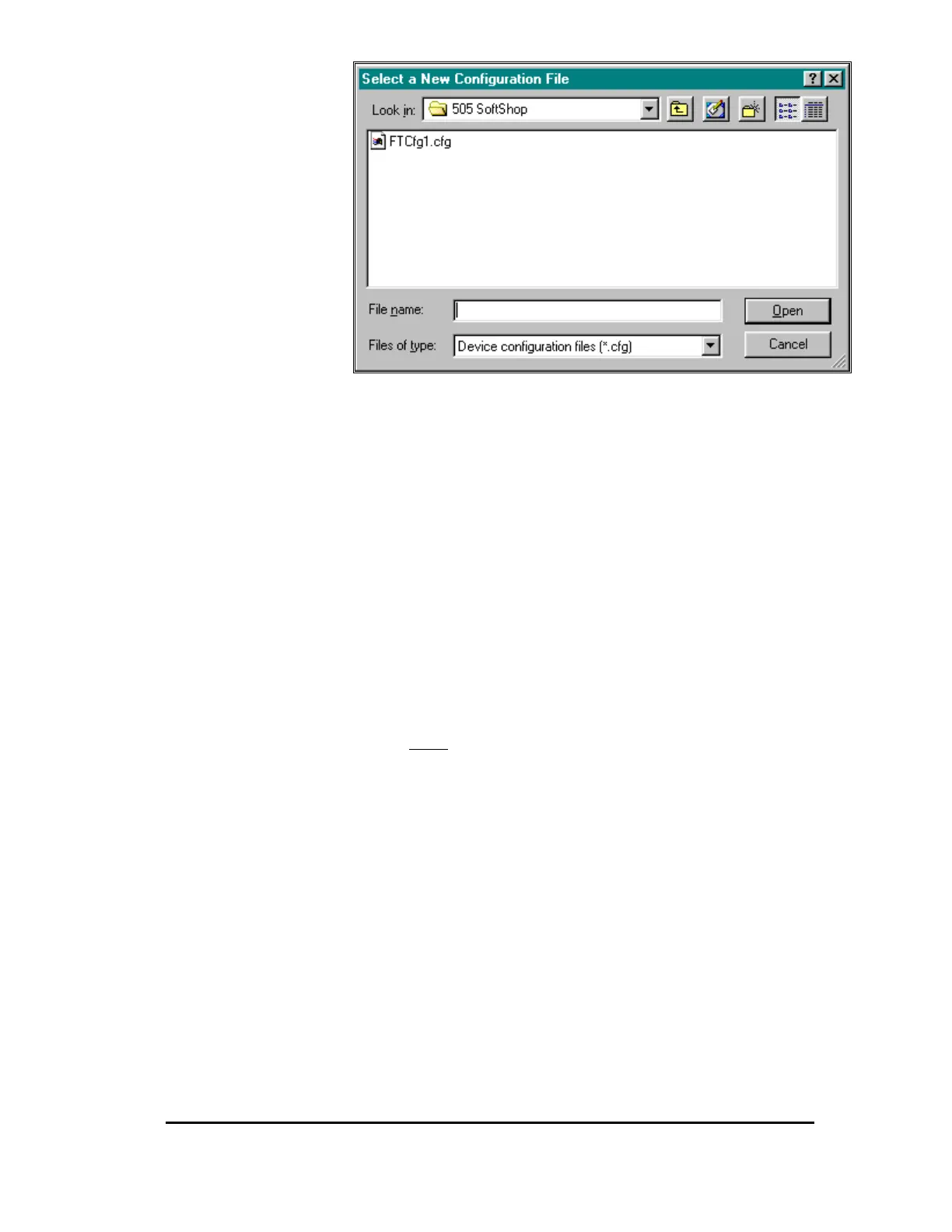

Figure 10
• Existing File
Open an Existing Configuration File - Opens an existing file.
More Files - Contains the Most Recently Used (MRU)
configuration files read from the registry similar to the MRU list of
.LGR files from the File menu.
The database file must include at least four fields (address, tag,
descrip, and comment) in order. If these fields are not found, a
documentation-mapping dialog appears to map user fields to
FasTrak fields described above. A tag is synonymous with a
Workshop symbol and a description is synonymous with a
Workshop label. Every device configured must have a
corresponding documentation file.
Adding Devices
1. To add a device, click Add Device from the Device Source
Configuration screen.
Result: The Add Device screen appears (Figure 11).
